704-17-05811 704-17-05810 Oil Seal KOMATSU Wheel Loader Spare Parts For WA800-3E0
- 704-17-05811 704-17-05810 Oil Seal KOMATSU Excavator Spare Parts For WA800-3E0
- Specifiion
| Name | Oil Seal |
| Parts No | 704-17-05811 704-17-05810 |
| Machine Model | 545 568 WA1200 WA450 WA450L WA470 |
| egory | Torque Converter And Transmission |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
BULLDOZERS D155A D155AX D375A D475A D575A
COMPACTORS WF450 WF550
DUMP TRUCKS 330M HD1200 HD785 HD985
WHEEL DOZERS WD600 WD900
WHEEL LOADERS 545 568 WA1200 WA450 WA450L WA470 WA480 WA500 WA600 WA800 WA800L WA900 WA900L Komatsu
- More other seal parts fit for KOMATSU machine
| 144-63-95170 SEAL,DUST (KIT) |
| 558, 560B, 568, BM020C, CD110R, D40F, D41A, D41E, D41E6T, D41P, D41PF, D50A, D50P, D50PL, D53A, D53P, D57S, D58E, D58P, D60A, D60E, D60P, D60PL, D61E, PC130, PC160, PC190, WA250, WA250PZ |
| 6732-81-8860 SEAL, O-RING |
| D51EX/PX, GD750A, HD785, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC400, PW180, PW200, PW220, S4D102E, S6D102E, SA6D102E, SA6D170E, SAA4D1... |
| 07145-00080 SEAL,DUST (KIT) |
| CARRIER, PC130, PC160, PC190, PC220, PC240, PC290, PC400 |
| 206-30-55150 SEAL |
| BP500, BR200, BR200J, BR200R, BR200S, BR200T, BR250RG, BR300J, BR300S, BR310JG, BR350JG, BR480RG, CD110R, CS360, CS360SD, PC100L, PC150, PC150HD, PC150LGP, PC150NHD, PC158, PC160, PC180, PC180L, PC190... |
| 195-63-94170 SEAL, DUST (KIT) |
| 530, 530B, 538, 540, 540B, D135A, D150A, D155A, D155AX, D275A, HD325, HD405, HM400, PC160, PC190, PC200, PC220, PC240, PC290, PC800, WA380, WA380Z, WA420 |
| 07145-00050 SEAL |
| BOOM,, CARRIER, D31EX, D31PX, D37EX, D39EX, D65EX, D65PX, D65WX, GD555, GD675, PC45MR, PC55MR, PC78US, PC78UU, PC88MR, TRACK |
| 21K-70-12180 SEAL,DUST |
| BP500, PC130, PC150, PC150HD, PC150NHD, PC200 |
| 07145-00120 SEAL |
| PC240, PC290, PC400, PC45MR |
| 207-25-61160 SEAL |
| AIR, PC220LL, PC250, PC270, PC270LL, PC290, PC300, PC300HD, PC300LL, PC300SC, PC308, PC340, PC350, PC360, PC400, PC450, PRESSURE, RAIN |
| 20Y-09-31120 SEAL |
| PC200, PC220 |
| 07145-10070 SEAL,DUST (KIT) |
| GD705A, GD805A, PC200, PC400 |
| 07145-10080 SEAL,DUST (KIT) |
| GD705A, PC200, PC220, PC400 |
| 208-53-15920 SEAL |
| PC200, PC220, PC270, PC300, PC400, PC450, RAIN |
| 208-979-7980 SEAL |
| PC200, PC220, PC270, PC300, PC360, PC400, PC450, PC600, PC800, PC800SE, PC850, PC850SE |
| 206-54-71141 SEAL |
| PC200, PC220, PC220LL, PC230, PC240, PC270, PC270LL, PC290 |
| 703-10-95130 SEAL |
| PC200, PC228, PC228US, PF3W, PW100, PW100N, PW100NS, PW100S, PW150, PW200, PW210, PW60, PW60S |
| 195-63-93170 SEAL,DUST (KIT) |
| 558, 568, BP500, D155S, D355A, D455A, D475A, D475ASD, HYDRAULIC, PC228, PC400, PC450, PC550, PC650, WA500 |

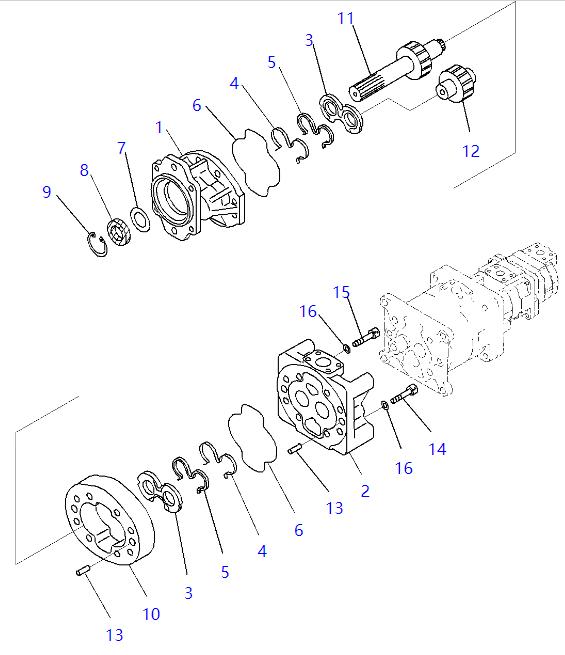

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 705-58-45030 | [1] | Pump Assembly, Gear (SAR 112 + 100 + 63 + 14) Komatsu | 60 kg. | |
| ["SN: 70030-UP"] |$0. | ||||
| 705-32-41240 | [1] | Pump Assembly, Gear (SAR 112) Komatsu China | ||
| ["SN: 70030-UP"] |$1. | ||||
| 1 | 705-17-04021 | [1] | Bracket Assembly Komatsu | 4.752 kg. |
| ["SN: 70030-UP", "SCC: C2"] | ||||
| 705-17-04352 | [2] | Bushing, Plane Komatsu | 0.11 kg. | |
| ["SN: 70030-UP", "SCC: C2"] |$3. | ||||
| 2 | 705-19-04240 | [1] | Carrier Assembly Komatsu | 6.802 kg. |
| ["SN: 70030-UP", "SCC: C2"] | ||||
| 3 | 705-17-04611 | [2] | Plate,Side Komatsu | 0.38 kg. |
| ["SN: 70030-UP"] | ||||
| 4 | 705-17-04441 | [2] | Ring, Back-up Komatsu | 0.03 kg. |
| ["SN: 70030-UP"] analogs:["7051704440"] | ||||
| 5 | 705-17-04471 | [2] | Seal Ring Komatsu | 0.03 kg. |
| ["SN: 70030-UP"] | ||||
| 6 | 705-17-04382 | [2] | O-ring Komatsu | 0.03 kg. |
| ["SN: 70030-UP"] analogs:["7051704381"] | ||||
| 7 | 705-17-04870 | [1] | Plate Komatsu | 0.019 kg. |
| ["SN: 70030-UP"] | ||||
| 8 | 704-17-05811 | [1] | Seal, Oil Komatsu China | 0.03 kg. |
| ["SN: 70030-UP"] analogs:["7041705810"] | ||||
| 9 | 04065-06220 | [1] | Ring, Snap Komatsu | 0.013 kg. |
| ["SN: 70030-UP"] | ||||
| 10 | 705-18-41010 | [1] | CAASE, Gear Komatsu China | |
| ["SN: 70030-UP", "SCC: C2"] | ||||
| 11 | 705-29-41430 | [1] | Gear, Drive Komatsu China | |
| ["SN: 70030-UP", "SCC: C2"] | ||||
| 12 | 705-18-41510 | [1] | Gear, Driven Komatsu | 1.9 kg. |
| ["SN: 70030-UP", "SCC: C2"] | ||||
| 13 | 04020-01842 | [4] | Pin, Dowel Komatsu | 0.09 kg. |
| ["SN: 70030-UP"] | ||||
| 14 | 01253-61405 | [4] | Bolt, Hexagon Socket Head Komatsu China | |
| ["SN: 70030-UP"] analogs:["7051704640"] | ||||
| 15 | 705-17-04720 | [4] | Bolt, Hexagon Socket Head Komatsu China | |
| ["SN: 70030-UP"] | ||||
| 16 | 705-17-04980 | [8] | Washer Komatsu | 0.008 kg. |
| ["SN: 70030-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
