14385476 VOE14385476 Return Filter Excavator Filter For Vo-lvo EW140C EW140D EW160C
- 14385476 VOE14385476 Return Filter Excavator Filter For Vo-lvo EW140C EW140D EW160C
- Spec Sheet
| Product name | Return filter |
| Part number | 14385476 VOE14385476 |
| Model | EW140C EW140D EW160C EW160D EW180C EW180D EW210C EW210D EW230C |
| egory group | Vo-lvo Excavator Filter |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Applicable models
WHEEL EXCAVATORS
EW140C EW140D EW160C EW160D EW180C EW180D EW210C EW210D EW230C
- More return parts for Vo-lvo heavy equipment
| VOE20914335 Return Line |
| EC160C, EC180C, EC210C, EC235C, ECR235C, EW160C, EW180C, EW205D, FC2121C, FC2421C, P6820C ABG, P6870/5870/5770C ABG |
| VOE20972320 Return line |
| EC200D, EC210D, EC240B, EC240C, EC290B, EC290C, EC300D, ECR305C, EW140C, FC2924C, FC3329C, G900 MODELS, L105, L110E, L110F, L120E, L120F, L120GZ, PL3005D |
| VOE21470783 Return line |
| EC160C, EC180C, EC200B, EC210B, EC210C, EC220D, EC235C, ECR235C, EW145B, EW210C, EW230C, FC2121C, FC2421C |
| VOE21794465 Return Line |
| DD110B, DD120B, DD120C, DD140B, DD140C, EC140D, EC140E, EC160D, EC160E, EC180D, EC180E, ECR145D, ECR145E, EW140D, EW140E, EWR150E, L45G, L45H, L50G, L50H, P4820D, SD115, SD115B/SD135B, SD160B |
| VOE21792372 Return line |
| DD110B, DD120B, DD140B, EC140D, EC160D, EC160E, EC180D, EC180E, ECR145D, EW140D, L45G, L50G, SD115, SD135 |
| VOE21792352 Return line |
| DD110B, DD120B, DD140B, EC140D, EC160D, EC180D, ECR145D, EW140D, L45G, L50G, SD115, SD135 |
| VOE21773031 Return line |
| EC220D, EC235D, ECR235D, EW160D, EW180D, EW210D, L60G, L70G, L90G, P6820C ABG, P6870/5870/5770C ABG, SD115 |

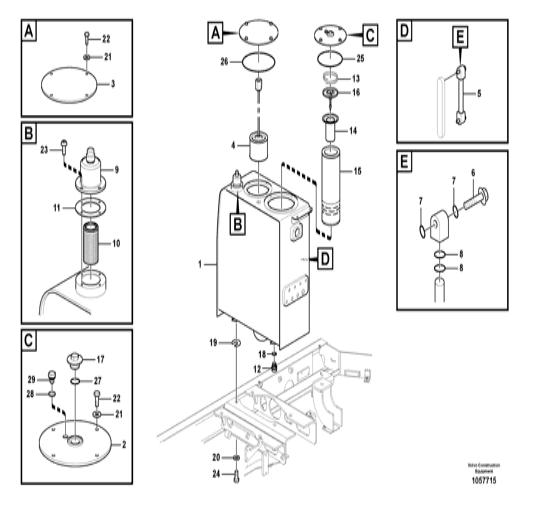

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14385744 | [1] | Tank | |
| 2 | VOE14543340 | [1] | Cover | |
| 3 | VOE14385016 | [1] | Cover | |
| 4 | VOE14377007 | [1] | Suction Filter | |
| 5 | VOE14532362 | [1] | Gauge | |
| 6 | VOE14517557 | [2] | Bolt | |
| 7 | VOE983497 | [4] | O-ring | |
| 8 | VOE990557 | [4] | O-ring | |
| 9 | VOE14561585 | [1] | Venting | S/N - 120909 |
| 9 | VOE14561585 | [1] | Venting | S/N 120910 - |
| 10 | VOE14500233 | [1] | Filter element | S/N - 120909 |
| 10 | VOE14596399 | [1] | Filter | S/N 120910 - |
| 11 | VOE14525449 | [1] | Seal | |
| 12 | VOE14722461 | [1] | Draining valve | |
| 13 | VOE14530988 | [1] | Spring | |
| 14 | VOE14524761 | [1] | Strainer | |
| 15 | VOE14385476 | [1] | Return Filter | |
| 16 | VOE14530987 | [1] | Valve | |
| 17 | VOE14533100 | [1] | Plug | |
| 18 | VOE949329 | [1] | Gasket | |
| 19 | VOE14881065 | [4] | Shim | |
| 20 | VOE60110287 | [4] | Washer | |
| 21 | VOE976945 | [8] | Washer | |
| 22 | VOE997434 | [8] | Hexagon screw | |
| 23 | VOE969422 | [4] | Six point socket screw | |
| 24 | VOE991647 | [4] | Hexagon screw | |
| 25 | VOE960254 | [1] | O-ring | |
| 26 | VOE960247 | [1] | O-ring | |
| 27 | VOE990610 | [1] | O-ring | |
| 28 | VOE13947282 | [1] | Gasket | |
| 29 | VOE960629 | [1] | Plug |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
