14535259 VOE14535259 Relief Valve Excavator Main Control Valve Fit Vo-lvo EC210C EC220D
- 14535259 VOE14535259 Relief Valve Excavator Main Control Valve Fit Vo-lvo EC210C EC220D
- Spec Sheet
| ppliion | Vo-lvo Excavator Main Control Valve |
| Parts Name | Relief Valve |
| Parts No | 14535259 VOE14535259 |
| Model |
EC210C EC220D EC235C EC235D ECR235C ECR305C EW205D FC2121C FC2421C |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Appliion
EXCAVATORS EC210C EC220D EC235C EC235D ECR235C ECR305C EW205D FC2121C FC2421C
- More other valve parts for Vo-lvo equipments
| VOE14616530 Relief valve |
| EC160C, EC180C, EC210C, EC235C, EC240B, EC240C, EC330B, EC350E, EC380E, EC380EHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC700B, EC700BHR, EC700C, EC700CHR, ECR145C, ECR145D, ECR145E, ECR235C, EC... |
| VOE14622987 Relief valve |
| EC380E, EC480D, EC480E, EC480EHR |
| VOE14609177 Relief valve |
| EC380DHR |
| VOE14622933 Relief valve |
| EC350E, EC380E, EC380EHR, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, EC700C, EC750D, EC950E, PL4809D |
| VOE14609633 Relief valve |
| EC460C, EC460CHR, EC480D, EC480DHR, PL4809D |
| VOE14622932 Relief valve |
| EC350E, EC380E, EC380EHR, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, PL4809D |
| VOE14644604 Relief valve |
| EC350E, EC380E, EC380EHR |

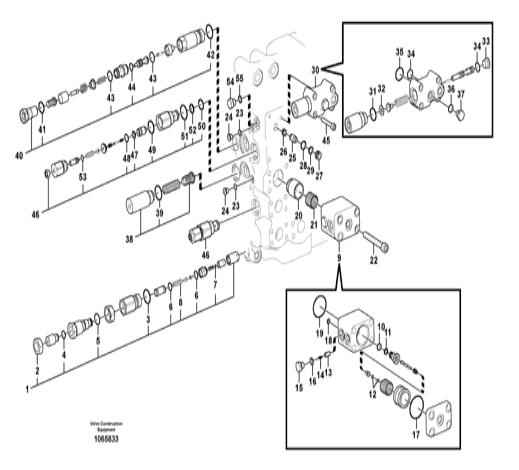

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14674191 | [1] | Control valve | ||
| 1 | VOE14535259 | [1] | Relief valve | |
| 2 | SA9114-32000 | [1] | Lock nut | |
| 3 | VOE931212 | [1] | O-ring | |
| 4 | VOE983502 | [1] | O-ring | |
| 5 | VOE990557 | [1] | O-ring | |
| 6 | VOE990738 | [2] | O-ring | |
| 7 | VOE14522265 | [1] | Filter | |
| 8 | SA7273-30490 | [1] | Spring | |
| 9 | VOE14513864 | [1] | Valve | |
| 10 | VOE983497 | [1] | O-ring | |
| 11 | VOE14880814 | [1] | Back-up ring | |
| 12 | VOE991653 | [2] | Hexagon nut | |
| 13 | SA7273-10090 | [1] | Poppet | |
| 14 | SA7273-10490 | [1] | Spring | |
| 15 | VOE14883837 | [1] | Plug | |
| 16 | VOE983502 | [1] | O-ring | |
| 17 | VOE990569 | [1] | O-ring | |
| 18 | VOE983494 | [1] | O-ring | |
| 19 | VOE990584 | [1] | O-ring | |
| 20 | VOE14521468 | [1] | Poppet | |
| 21 | VOE14535257 | [1] | Spring | |
| 22 | VOE984355 | [4] | Hex. socket screw | |
| 23 | VOE983495 | [2] | O-ring | |
| 24 | SA9415-11012 | [2] | Plug | |
| 25 | VOE14514211 | [1] | Poppet | |
| 26 | SA7273-11400 | [1] | Spring | |
| 27 | VOE14514212 | [1] | Clamping plate | |
| 28 | VOE983503 | [1] | O-ring | |
| 29 | VOE14880815 | [1] | Back-up ring | |
| 30 | VOE14569441 | [1] | Valve | |
| 31 | VOE983510 | [1] | O-ring | |
| 32 | SA7273-10730 | [1] | Shim | |
| 33 | SA9415-11032 | [1] | Plug | |
| 34 | VOE983505 | [2] | O-ring | |
| 35 | VOE983511 | [1] | O-ring | |
| 36 | VOE983502 | [1] | O-ring | |
| 37 | VOE14883837 | [1] | Plug | |
| 38 | VOE14521669 | [1] | Valve | |
| 39 | VOE993323 | [1] | O-ring | |
| 40 | VOE14521673 | [1] | Valve | |
| 41 | VOE990557 | [1] | O-ring | |
| 42 | VOE931212 | [1] | O-ring | |
| 43 | VOE990548 | [2] | O-ring | |
| 44 | VOE990555 | [1] | O-ring | |
| 45 | VOE13949927 | [4] | Allen Hd Screw | |
| 46 | VOE14524582 | [2] | Valve | |
| 47 | SA7273-30540 | [1] | Ring | |
| 48 | VOE983542 | [1] | O-ring | |
| 49 | VOE983543 | [1] | O-ring | |
| 50 | VOE983507 | [1] | O-ring | |
| 51 | VOE993323 | [1] | O-ring | |
| 52 | VOE14880816 | [1] | Back-up ring | |
| 53 | VOE983495 | [1] | O-ring | |
| 54 | SA9415-31021 | [1] | Plug | |
| 55 | VOE993320 | [1] | O-ring | |
| 100 | VOE14565931 | [1] | Seal |
- Description
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump and valve parts are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
