14565331 VOE14565331 Shaft Fitting For Vo-lvo Excavators EC240C EC290B EC290C EC300D
- 14565331 VOE14565331 Shaft Fitting For Vo-lvo Excavators EC240C EC290B EC290C EC300D
- Spec Sheet
| Appliion | Vo-lvo Excavator Travel Motor |
| Parts Name | Shaft |
| Parts No | 14565331 VOE14565331 |
| Model | EC240C EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360B EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Appliion
EXCAVATORS EC240C EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360B
EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D
- More other shaft parts for Vo-lvo equipments
| VOE14503949 Shaft |
| EC55, EC55B, EC55C, EC55D, EC60C, EC60D, EW55, EW55B, EW60C |
| VOE14525798 Shaft |
| EC55B, EW55B |
| VOE14522151 Shaft |
| EC55B, EC55C, EC80D, ECR58, ECR88, EW55B, EW60C |
| VOE14524326 Shaft |
| EC55C, EC60C, EC60E, EC80D, ECR58, ECR58D, ECR88, ECR88D |
| VOE14520006 Shaft |
| EC55B, EW55B |
| VOE14522800 Shaft |
| EC55B, EC55D, EC60D, EW55B |
| VOE14505039 Shaft |
| EC55, EC55B, EC55C, EC60C |

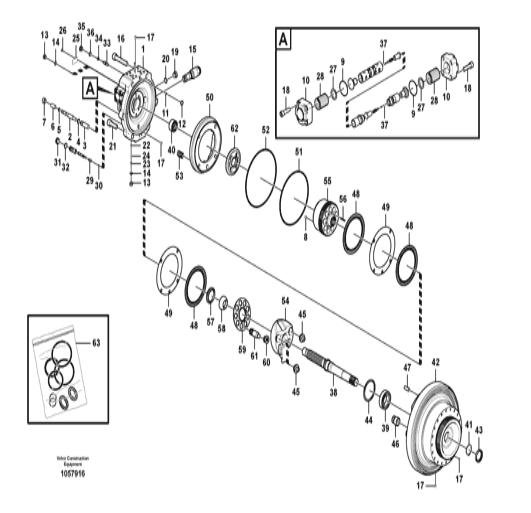

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14592002 | [1] | Travel motor | ||
| 1 | VOE14565334 | [1] | Casing | |
| 2 | VOE14565337 | [1] | Rod | |
| 3 | VOE14565336 | [1] | Pin | |
| 4 | VOE983507 | [1] | O-ring | |
| 5 | VOE983501 | [1] | O-ring | |
| 6 | VOE14528296 | [1] | Screw | |
| 7 | VOE997410 | [1] | Hexagon nut | |
| 8 | VOE14551525 | [1] | Pin | |
| 9 | VOE990585 | [2] | O-ring | |
| 10 | SA7242-10540 | [2] | Cover | |
| 11 | SA7242-10750 | [1] | Screw | |
| 12 | VOE983497 | [1] | O-ring | |
| 13 | SA9415-31021 | [7] | Plug | |
| 14 | VOE993320 | [7] | O-ring | |
| 15 | SA7242-11580 | [2] | Relief valve | |
| 16 | SA9016-22019 | [2] | Hex. socket screw | |
| 17 | VOE14560637 | [9] | Plug | |
| 18 | SA9016-11209 | [8] | Hex. socket screw | |
| 19 | SA9415-31041 | [2] | Plug | |
| 20 | VOE993322 | [2] | O-ring | |
| 21 | VOE984229 | [4] | Hex. socket screw | |
| 22 | SA7242-10710 | [2] | Clamping plate | |
| 23 | SA7242-10720 | [2] | Guard | |
| 24 | VOE14880998 | [2] | Ball | |
| 25 | [1] | Nameplate | ||
| 26 | SA1010-11360 | [2] | Screw | |
| 27 | SA7242-10520 | [2] | Washer | |
| 28 | SA7242-10530 | [2] | Spring | |
| 29 | SA7242-11560 | [1] | Spring | |
| 30 | VOE14507000 | [1] | Spacer | |
| 31 | SA7242-11290 | [1] | Plug | |
| 32 | VOE983509 | [1] | O-ring | |
| 33 | VOE14506993 | [1] | Spool | |
| 34 | VOE14506994 | [1] | Spring | |
| 35 | VOE14506995 | [1] | Plug | |
| 36 | VOE983505 | [1] | O-ring | |
| 37 | VOE14880996 | [2] | Ball | |
| 38 | VOE14565331 | [1] | Shaft | |
| 39 | VOE14640025 | [1] | Roller bearing | |
| 40 | VOE14506955 | [1] | Bearing | |
| 41 | VOE914472 | [1] | Snap ring | |
| 42 | VOE14568909 | [1] | Casing | |
| 43 | SA7242-10590 | [1] | Seal | |
| 44 | SA8320-01810 | [1] | Retaining ring | |
| 45 | VOE14506958 | [2] | Pivot | |
| 46 | VOE14506959 | [1] | Piston | |
| 47 | VOE14551526 | [5] | Pin | |
| 48 | VOE14506982 | [3] | Plate | |
| 49 | VOE14506984 | [2] | Plate | |
| 50 | VOE14565332 | [1] | Piston | |
| 51 | VOE960262 | [1] | O-ring | |
| 52 | VOE990849 | [1] | O-ring | |
| 53 | VOE14568004 | [10] | Spring | |
| 54 | VOE14506962 | [1] | Plate | |
| 55 | VOE14552645 | [1] | Cylinder block | |
| 56 | VOE14506967 | [9] | Spring | |
| 57 | VOE14506968 | [1] | Spacer | |
| 58 | VOE14506970 | [1] | Guide | |
| 59 | VOE14506972 | [1] | Plate | |
| 60 | VOE14506977 | [9] | Pad | |
| 61 | VOE14551798 | [9] | Piston | |
| 62 | VOE14506978 | [1] | Plate | |
| 63 | VOE14596398 | [1] | Seal |
- Description
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump and valve parts are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
