132-4344 1324344 Carrier Excavator Engine Parts For M312 M313C 3054
- 132-4344 1324344 Carrier Excavator Engine Parts Fit For M312 M313C 3054
- Specifiion
| Name | Carrier |
| Parts No | 132-4344 1324344 |
| Machine Model | M312 M313C |
| egory | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
WHEELED EXCAVATOR M312 M313C er.pillar.
- More other carrier parts fit for C A T machine
| 1324288 CARRIER-PLANETARY |
| M312, M313C |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| 1550836 CARRIER-PLANETARY |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| 3756310 CARRIER-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| 8U5989 CARRIER-PLANETARY |
| 206B, 212B, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C |
| 1218139 CARRIER |
| M315, M315C, M316C, M318 |
| 7I7785 CARRIER-PLANETARY |
| 311, 311B, 312, 312B, 312B L, 315C, 318B |

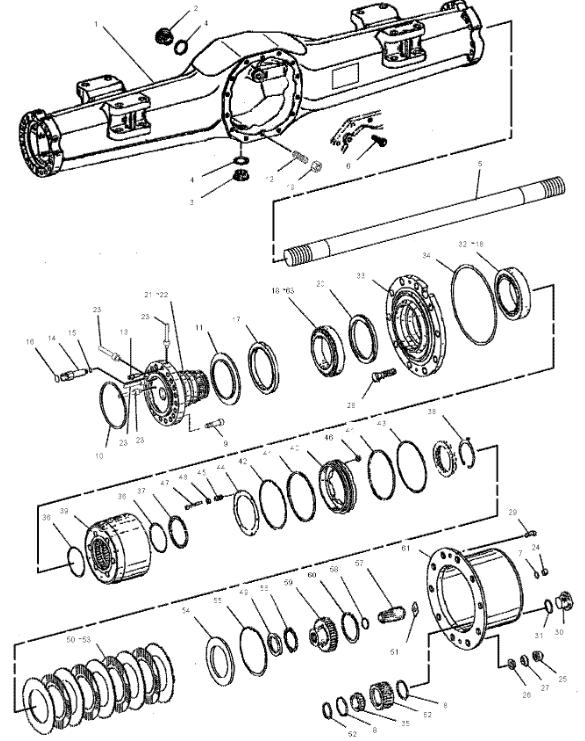

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8U-5919 | [1] | HOUSING-AXLE | |
| 2 | 109-4440 | [1] | PLUG | |
| 3 | 110-0847 | [1] | PLUG-SCREW | |
| 4 | 190-8676 | [2] | SEAL-O-RING | |
| 5 | 5W-8311 | [2] | ROD-AXLE | |
| 6 | 9R-3533 M | [13] | BOLT-SPECIAL (M6X1 THD) | |
| 7 | 6T-6408 | [2] | SEAL-O-RING | |
| 8 | 9R-6949 | [16] | RING | |
| 9 | 8T-0349 M | [36] | BOLT (M16X2X65-MM) | |
| 10 | 5W-3061 | [2] | SEAL-O-RING | |
| 11 | 8U-0776 | [2] | RING-SUPPORT | |
| 12 | 9R-6816 | [1] | STUD (M14X2 THD) | |
| 13 | 5W-5682 | [2] | VALVE AS-PURGE | |
| 14 | 8U-5923 | [2] | FITTING AS | |
| 15 | 8U-2233 | [2] | SEAL-O-RING | |
| 16 | 4K-2039 | [2] | SEAL-O-RING | |
| 17 | 6R-5257 | [2] | SEAL AS | |
| 18 | 2S-0480 | [4] | CUP-TAPERED ROLLER | |
| 19 | 9R-7000 M | [1] | NUT (M14X2-THD) | |
| 20 | 8U-0747 B | [2] | SPACER (109.7X120.3X15.2-MM THK) | |
| 8U-0748 B | [2] | SPACER (109.7X120.3X15-MM THK) | ||
| 8U-0749 B | [2] | SPACER (109.7X120.3X14.8-MM THK) | ||
| 8U-0750 B | [2] | SPACER (109.7X120.3X14.6-MM THK) | ||
| 8U-0751 B | [2] | SPACER (109.7X120.3X14.4-MM THK) | ||
| 8U-0752 B | [2] | SPACER (109.7X120.3X14.2-MM THK) | ||
| 8U-0753 B | [2] | SPACER (109.7X120.3X14-MM THK) | ||
| 121-7642 B | [2] | SPACER (109.7X120.3X14.42-MM THK) | ||
| 121-7643 B | [2] | SPACER (109.7X120.3X14.45-MM THK) | ||
| 121-7644 B | [2] | SPACER (109.7X120.3X14.48-MM THK) | ||
| 121-7645 B | [2] | SPACER (109.7X120.3X14.51-MM THK) | ||
| 121-7646 B | [2] | SPACER (109.7X120.3X14.54-MM THK) | ||
| 21 | 223-7894 | [2] | HUB GP-WHEEL | |
| (EACH INCLUDES) | ||||
| 22 | 211-7104 | [1] | NUT (M95X1.5-THD)(M95X1.5-THD) | |
| 23 | 8U-2343 | [4] | PLUG | |
| 24 | 9W-4926 | [2] | PLUG | |
| 25 | 9X-0642 | [20] | NUT | |
| 26 | 5W-5694 | [20] | RING | |
| 27 | 9X-0641 | [20] | WASHER | |
| 28 | 054-7758 | [20] | STUD | |
| 29 | 5W-2177 M | [4] | BOLT-SOCKET HEAD (M12X1.75X20-MM) | |
| 30 | 121-7626 | [2] | PLUG | |
| 31 | 203-0215 | [2] | SEAL-O-RING | |
| 32 | 2S-0479 | [2] | CONE-BEARING (TAPERED ROLLER) | |
| 33 | 8U-5722 | [2] | FLANGE | |
| 34 | 5W-6845 | [2] | SEAL-O-RING | |
| 35 | 121-7627 | [8] | BEARING-ROLLER | |
| 36 | 5W-5480 | [4] | SEAL-O-RING | |
| 37 | 8U-3834 | [2] | SPACER (95.5X105.55X3.8-MM THK) | |
| 38 | 5W-7320 | [2] | RING | |
| 39 | 223-7967 | [2] | GEAR | |
| 40 | 121-7640 | [2] | PISTON-BRAKE | |
| 41 | 121-7639 | [4] | RING | |
| 42 | 121-7638 | [2] | RING | |
| 43 | 121-7637 | [2] | RING-BACKUP | |
| 44 | 8U-5698 | [2] | PLATE-WASHER | |
| 45 | 8U-3592 | [12] | SPRING | |
| 46 | 8U-3594 | [12] | NUT | |
| 47 | 121-7636 M | [12] | BOLT (M6X1X40-MM)(M16X1 THD) | |
| 48 | 8U-3591 | [12] | SPACER (6.5X15X7-MM THK)(6.5X15X7-MM THK) | |
| 49 | 5W-7381 | [2] | SHAFT-SEAL | |
| 50 | 121-7635 B | [10] | DISC-GEAR (2-MM THK) | |
| 121-7634 B | [10] | DISC-GEAR (2.5-MM THK) | ||
| 121-7633 B | [10] | DISC-GEAR (3-MM THK) | ||
| 51 | 054-6552 B | [2] | SHIM (1.5-MM THK) | |
| 054-6553 B | [2] | SHIM (2-MM THK) | ||
| 054-6554 B | [2] | SHIM (2.5-MM THK) | ||
| 054-6555 B | [2] | SHIM (3-MM THK) | ||
| 054-6556 B | [2] | SHIM (1.7-MM THK) | ||
| 054-6557 B | [2] | SHIM (2.2-MM THK) | ||
| 8U-2751 B | [2] | WASHER-THRUST | ||
| 52 | 8T-2355 | [8] | RING-RETAINING | |
| 53 | 121-7632 | [8] | DISC-FRICTION | |
| 54 | 132-3693 | [2] | WASHER (130X182.6X14.5-MM THK) | |
| 55 | 121-7631 | [2] | RING-RETAINING | |
| 56 | 8U-0746 | [2] | WASHER-THRUST | |
| 57 | 129-2712 | [2] | GEAR-SUN | |
| 58 | 8T-9524 | [2] | SEAL-O-RING | |
| 59 | 132-4344 | [2] | CARRIER | |
| 60 | 5W-6370 | [2] | RING-RETAINING | |
| 61 | 121-7628 | [2] | HOUSING-DRIVE | |
| 62 | 9R-6950 | [8] | PINION-PLANETARY | |
| 63 | 178-8608 | [2] | CONE-TAPERED | |
| B | USE AS REQUIRED | |||
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
