K9007406 Piston ASS'Y DOOSAN Excavator Travel Motor Parts For DX230LC DX235LCR
- K9007406 Piston ASS'Y DOOSAN Excavator Travel Motor Parts Fit For DX230LC DX235LCR
- Specifiion
| Name | Piston ASS'Y |
| Parts No | K9007406 |
| Machine Model | DX210 DX220A DX225LCA DX225LC TXC225LC-2 DX230LC |
| egory | Travel Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS DX210 DX220A DX225LCA DX225LC TXC225LC-2 DX230LC Doosan
- More other piston parts fit for DOOSAN machine
| K9006008 PISTON |
| Doosan |
| 2.452-00002 PISTON |
| Doosan |
| 2.452-00010 PISTON;POSITIONING |
| Doosan |
| 2.115-00542 PISTON(WITH PISTON RINGS) |
| Doosan |
| 1.409-00216 PISTON |
| Doosan |
| 2.409-00224 PISTON ASS'Y |
| Doosan |
| K9004831 PISTON |
| Doosan |
| 65.02503-8047 PISTON RING KIT |
| Doosan |
| 409-00033 PISTON ASS'Y |
| Doosan |
| K9006208 PISTON;BRAKE |
| Doosan |
| K9006222 PISTON ASS'Y |
| Doosan |
| K9004453 PISTON;PARKING |
| Doosan |
- alog parts list

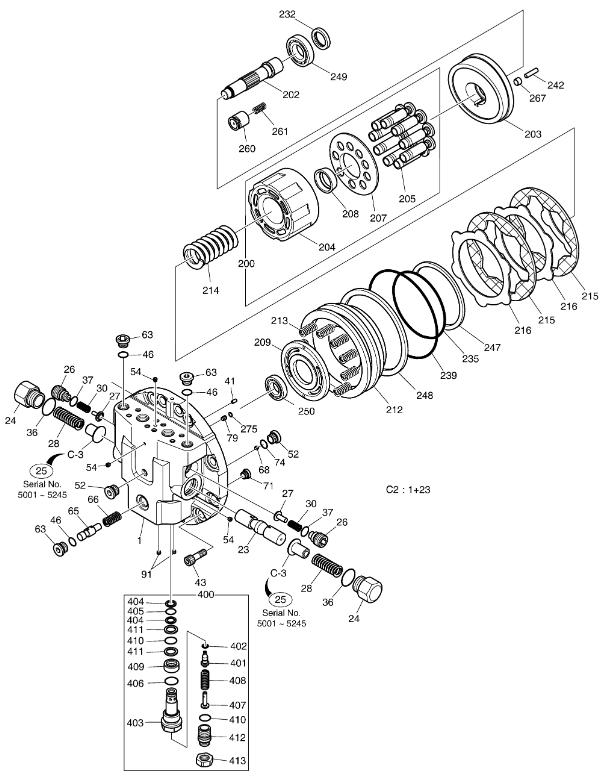

| Pos. | Part No | Qty | Parts name | Comments |
| *. | K9008310 | [1] | SEAL KIT;TRAVEL MOTOR | |
| 1 | *NA00915 | [1] | REAR FLANGE | |
| 200 | 400701-00004 | [1] | ||
| 200 | K9007407 | [1] | CYL BLOCK & PISTON KIT | 400701-00004 |
| 202 | K9007415A | [1] | ||
| 203 | K9007382 | [1] | PLATE;SWASH | |
| 204 | K9007397 | [1] | BLOCK;CYLINDER | |
| 205 | K9007406A | [1] | ||
| 205 | K9007406 | [1] | PISTON ASS'Y | |
| 207 | K9004447 | [1] | PLATE;RETAINER | |
| 208 | K9004448 | [1] | BALL;THRUST | |
| 209 | K9007398A | [1] | ||
| 212 | K9004453 | [1] | PISTON;PARKING | |
| 213 | 1.131-00049A | [12] | SPRING | |
| 213 | 1.131-00049 | [12] | SPRING | |
| 214 | K9004449 | [1] | SPRING | |
| 215 | 412-00013 | [2] | PLATE,FRICTION | |
| 216 | 352-00014 | [2] | PLATE,SEPARATION | |
| 23 | 410207-00163A | [1] | ||
| 23 | 410207-00307 | [1] | SPOOL,MAIN | |
| 23 | 410207-00163 | [1] | ||
| 232 | K9007401 | [1] | SEAL;OIL | |
| 235 | S8001801 | [1] | O-RING | |
| 239 | S8002101 | [1] | O-RING | |
| 24 | 1.181-00059 | [2] | PLUG;FOR MAIN | |
| 242 | 1.123-00053 | [4] | PIN,PARALLEL | |
| 247 | S8061800 | [1] | RING;BACK UP | |
| 248 | S8062100 | [1] | RING;BACK UP | |
| 249 | K9007400 | [1] | BEARING;BALL | |
| 25 | 110956-00071 | [2] | ||
| 250 | 1.109-00026 | [1] | BEARING;BALL | |
| 26 | 1.181-00067 | [2] | PLUG;CHECK | |
| 260 | 130602-00200 | [1] | ||
| 261 | 111601-00117 | [1] | ||
| 267 | 1.540-00006 | [2] | PIVOT | |
| 27 | 1.420-00013 | [2] | VALVE;CHECK | |
| 275 | S8000081 | [2] | O-RING | |
| 28 | 1.131-00058 | [2] | SPRING;FOR MAIN | |
| 30 | 1.129-00006 | [2] | SPRING;CHECK | |
| 36 | S8000321 | [2] | O-RING | |
| 37 | S8002731 | [2] | O-RING | |
| 400 | 410127-00058 | [2] | ||
| 400 | 410127-00058A | [2] | 410127-00190 | |
| 400 | 410127-00190 | [2] | VALVE ASSY,RELIEF | |
| 401 | *NA00890 | [1] | . PLUNGER | |
| 402 | 1.180-00527 | [1] | SEAL;PISTON | |
| 403 | *NA00079 | [1] | BODY | |
| 404 | S8060161 | [2] | RING;BACK-UP | |
| 405 | S8000161 | [3] | O-RING | |
| 406 | S8010291 | [1] | O-RING | |
| 407 | *NA00926 | [1] | ||
| 408 | *NA01182 | [1] | . SPRING | |
| 409 | *NA00796 | [1] | PISTON | |
| 41 | S5700891 | [1] | PIN;PARALLEL | |
| 410 | S8000221 | [2] | O-RING | |
| 411 | S8060221 | [3] | RING;BACK UP | |
| 412 | *NA00865 | [1] | PLUG,ADJUST | |
| 413 | *NA00628 | [1] | NUT,LOCK | |
| 43 | S2221471 | [12] | BOLT,SOCKET | |
| 46 | S8000181 | [2] | O-RING | |
| 52 | 2181-1890D2 | [4] | PLUG | |
| 54 | 181-00318 | [5] | BOLT;SOCKER | |
| 63 | 2181-1890D4 | [2] | PLUG | |
| 65 | 1.424-00041 | [1] | SPOOL;2 SPEED | |
| 66 | 1.131-00001 | [1] | SPRING | 111601-00354 |
| 66 | 111601-00354 | [1] | SPRING | |
| 68 | S6250182 | [2] | BALL | |
| 71 | 1.415-00005 | [1] | ORIFICE | |
| 74 | S8000111 | [2] | O-RING | |
| 79 | 1.471-00001 | [1] | FILTER | |
| 79 | 1.471-00001A | [1] | FILTER | |
| 91 | 2181-1116D1 | [2] | PLUG | |
| C. | K9007410 | [1] | CONTROL PART ASS'Y | 300609-00069 |
| C. | 300609-00069 | [1] | ||
| C-1. | K9007408A | [1] | 430215-00552 | |
| C-1. | 430215-00552 | [1] | ||
| C-2. | K9007409A | [1] | ||
| C-3. | 110956-00060 | [2] | STOPPER |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
