14531081 VOE14531081 Excavator Main Control Valve Fit Vo-lvo EC135B EC140B
- 14531081 VOE14531081 Valve Excavator Main Control Valve Fit Vo-lvo EC135B EC140B
- Spec Sheet
| ppliion | Vo-lvo Excavator Main Control Valve |
| Parts Name | Valve |
| Parts No | 14531081 VOE14531081 |
| Model |
EC135B EC140B EC140D EC160B EC180B EC200B EC200D EC210B EC210D EC240B EC240C EW145B FC2924C |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Appliion
EXCAVATORS EC135B EC140B EC140D EC160B EC180B EC200B EC200D EC210B EC210D EC240B EC240C
EW145B FC2924C
- More other valve parts for Vo-lvo equipments
| VOE14616530 Relief valve |
| EC160C, EC180C, EC210C, EC235C, EC240B, EC240C, EC330B, EC350E, EC380E, EC380EHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC700B, EC700BHR, EC700C, EC700CHR, ECR145C, ECR145D, ECR145E, ECR235C, EC... |
| VOE14622987 Relief valve |
| EC380E, EC480D, EC480E, EC480EHR |
| VOE14609177 Relief valve |
| EC380DHR |
| VOE14622933 Relief valve |
| EC350E, EC380E, EC380EHR, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, EC700C, EC750D, EC950E, PL4809D |
| VOE14609633 Relief valve |
| EC460C, EC460CHR, EC480D, EC480DHR, PL4809D |
| VOE14622932 Relief valve |
| EC350E, EC380E, EC380EHR, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, PL4809D |
| VOE14644604 Relief valve |
| EC350E, EC380E, EC380EHR |

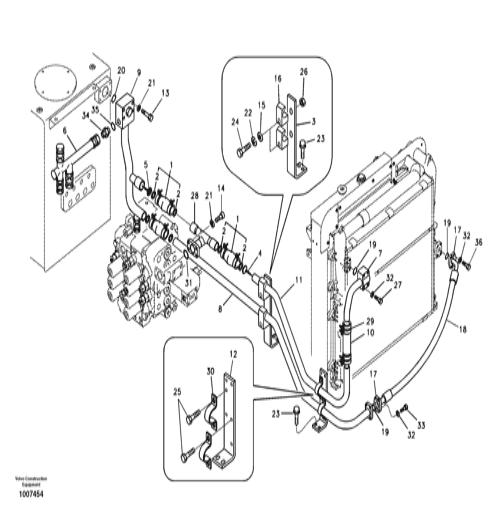

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14531072 | [3] | Flexible coupling | |
| 2 | VOE14509667 | [2] | Gasket | |
| 3 | VOE14515801 | [1] | Bracket | |
| 4 | VOE14531081 | [1] | Valve | |
| 5 | VOE14531082 | [1] | Valve | |
| 6 | VOE14518216 | [1] | Pipe | SER NO 10001-10043 |
| VOE14521132 | [1] | Pipe | SER NO 10044- | |
| 7 | VOE14517302 | [1] | Pipe | |
| 8 | VOE14519694 | [1] | Pipe | |
| 9 | VOE14515800 | [1] | Pipe | |
| 10 | VOE14881380 | [1] | Rubber hose | |
| 11 | VOE14515794 | [1] | Pipe | |
| 12 | VOE14518883 | [1] | Bracket | |
| 13 | VOE991638 | [4] | Hexagon screw | |
| 14 | VOE984089 | [4] | Hex. socket screw | |
| 15 | VOE60110299 | [2] | Washer | |
| 16 | VOE14881236 | [2] | Clamp | |
| 17 | SA9425-51041 | [4] | Flange | |
| 18 | VOE14880266 | [1] | Hose assembly | |
| 19 | VOE13949238 | [3] | O-ring | |
| 20 | VOE949240 | [1] | O-ring | |
| 21 | VOE955923 | [8] | Spring washer | |
| 22 | VOE955926 | [2] | Spring washer | |
| 23 | VOE946329 | [4] | Flange screw | SER NO 10001-10043 |
| VOE60113094 | [4] | Flange screw | SER NO 10044- | |
| 24 | VOE978941 | [2] | Hexagon screw | |
| 25 | VOE946441 | [4] | Flange screw | |
| 26 | VOE997410 | [2] | Hexagon nut | |
| 27 | VOE997439 | [4] | Hexagon screw | |
| 28 | VOE14516252 | [1] | Pipe | |
| 29 | VOE11109241 | [5] | Clamp | |
| 30 | VOE14512381 | [2] | Clamp | |
| 31 | VOE13949239 | [1] | O-ring | |
| 32 | VOE955922 | [12] | Spring washer | |
| 33 | VOE997437 | [4] | Hexagon screw | |
| 34 | SA9412-11060 | [1] | Connector | |
| 35 | VOE983527 | [1] | O-ring | |
| 36 | VOE983252 | [4] | Hexagon screw |
- Description
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump and valve parts are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
