21Q6-10303 Wiring Harness HYUNDAI Excavator Engine Parts For R210LC-9 R250LC-9
- 21Q6-10303 Wiring Harness HYUNDAI Excavator Engine Parts For R210LC-9 R250LC-9
- Specifiion
| Name | Wiring Harness |
| Parts No | 21Q6-10303 |
| Machine Model | R210LC9 R210NLC9 R250LC9 R290LC9 R290LC9MH RB260LC9S |
| egory | Engine Electric |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
9-SERIES CRAWLER EXCAVATOR R210LC9 R210NLC9 R250LC9 R290LC9 R290LC9MH RB260LC9S Hyundai
- More other harness parts fit for HYUNDAI machine
| 21N6-80101 HARNESS-FRAME |
| RD220-7 |
| 21N6-80102 HARNESS-FRAME |
| RD220-7 |
| 21N1-20010 HARNESS-FRAME |
| RD80-7 |
| 21N1-20011 HARNESS-FRAME |
| RD80-7 |
| 21N1-20012 HARNESS-FRAME |
| RD80-7 |
| 21N1-20013 HARNESS-FRAME |
| RD80-7 |
| 21N6-DA0630 HARNESS-LAMP |
| RD80-7 |
| 21N1-60010 HARNESS-ENG |
| RD80-7 |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| 21N8-11182 HARNESS-SIDE,RH |
| R80-7 |
| 21N8-10091 HARNESS-WIPER |
| HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R... |
| 21N8-10090 HARNESS-WIPER |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| 21N6-00013 HARNESS-CAB |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250... |
| 21N6-00012 HARNESS-CAB |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H |
| 21N3-10050 HARNESS-ENGINE |
| R110-7 |
| 21N3-10020 HARNESS-BOOM |
| R110-7 |
| 21N4-01502 HARNESS-EXT, TRAVEL |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7 |
| 21N3-10014 HARNESS-FRAME |
| R110-7 |
| 21N3-10013 HARNESS-FRAME |
| R110-7 |
| 21N3-10012 HARNESS-FRAME |
| R110-7 |
| 21N3-10011 HARNESS-FRAME |
| R110-7 |
| YCAC-01966 HARNESS-ENGINE WIRE |
| HSL960T |
| 21N6-60020 HARNESS-RH,CONSOLE |
| R110-7 |
| 21N3-10510 HARNESS-RH,CONSOLE |
| R110-7, R110-7A |
| 21N6-60030 HARNESS-SIDE,RH |
| R110-7 |
| 21N6-60031 HARNESS-SIDE,RH |
| R110-7, R110-7A |

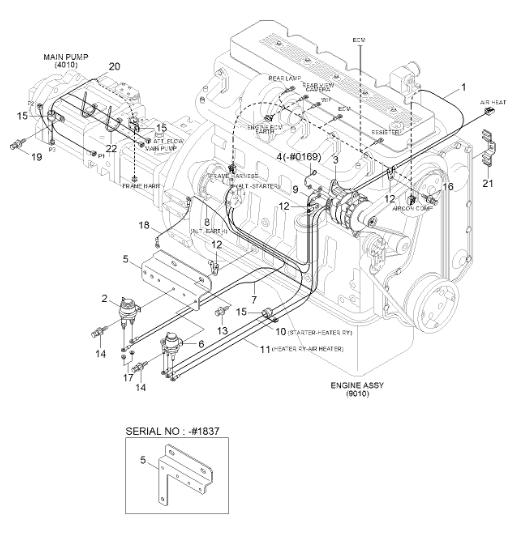

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21Q6-10201 | [1] | HARNESS-ENGINE | |
| 1 | 21Q6-10202 | [1] | HARNESS-ENGINE | |
| 1 | 21Q6-10203 | [1] | HARNESS-ENGINE | |
| 1 | 21Q6-10204 | [1] | HARNESS-ENGINE | |
| 1 | 21Q6-10204 | [1] | HARNESS-ENGINE | |
| 1 | 21Q8-11200 | [1] | HARNESS-ENGINE | |
| 1 | 21Q8-11204 | [1] | HARNESS-ENGINE | |
| 1 | 21Q8-11205 | [1] | HARNESS-ENGINE | |
| 1-1. | 21Q8-14600 | [1] | RESISTOR | NOT SHOWN |
| 2 | 21N6-30120 | [1] | RELAY-START | |
| N3. | 21E6-40030 | [1] | ALTERNATOR ASSY | W/O PULLEY |
| 3 | 21Q6-41000-K | [1] | ALTERNATOR KIT | W/O PULLEY |
| 3-1. | 21Q6-41000 | [1] | ALTERNATOR ASSY | NOT SHOWN |
| 3-1. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 3-2. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 3 | 21Q6-41000 | [1] | ALTERNATOR ASSY | W/O PULLEY |
| 3-1. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 4 | 21E1-21120 | [1] | WIRE LINK-ALTERNATOR | |
| 5 | 21Q6-40181 | [1] | BRACKET | |
| 5 | 21Q6-40700 | [1] | BRACKET-RELAY | |
| 6 | 21N8-42050 | [1] | RELAY-HEATER | |
| 7 | 21N8-40071 | [1] | HARNESS-RELAY | |
| 8 | 21N8-40080 | [1] | CABLE(ALT-EARTH) | |
| 9 | 21N8-10200 | [1] | CABLE(ALT-STARTER) | |
| 9 | 21N8-10201 | [1] | CABLE(ALT-STARTER) | |
| 10 | 21LC-40061 | [1] | CABLE(STARTER-HT RY) | |
| 11 | 21LF-20141 | [1] | CABLE(HEAT RY-AIR HEAT) | |
| 12 | 21E9-00170 | [5] | CLIP-HARNESS | |
| 13 | S037-122056 | [3] | BOLT-W/WASHER | |
| 14 | S035-061526 | [4] | BOLT-W/WASHER | |
| 15 | 31L7-10190 | [3] | CLAMP-TUBE | |
| 16 | S035-081526 | [1] | BOLT-W/WASHER | |
| 17 | S285-061002 | [2] | NUT-FLANGED | |
| 18 | 21NA-10500 | [1] | STRAP-EARTH | |
| 19 | S035-082026 | [1] | BOLT-W/WASHER | |
| 20 | 21Q6-10302 | [1] | HARNESS-PUMP PS | OPTION |
| 20 | 21Q6-10303 | [1] | HARNESS-PUMP PS | OPTION |
| 21 | 21N4-01130 | [1] | PLATE-CLIP | |
| 22 | S552-050203 | [2] | CLAMP-BAND |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
