1709376 170-9376 Liquid Level Switch Excavator Electric Parts For 315C 318C 319C
-
1709376 170-9376 Liquid Level Switch Excavator Electric Parts Used For 315C 318C 319C
-
Specifiion
| Appliion | C A T excavator electric parts |
| Name | Liquid Level Switch |
| Parts No | 1709376 170-9376 |
| Model |
315C 318C 319C 320C 322C 325C 330C L |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
EXCAVATOR 315C 318C 319C 320C 322C 325C 330C L
- More switch parts supplied to C A T machine
| 9X8124 SWITCH AS-MAGNETIC |
| 311, 311B, 3126B, 312B, 312C, 312C L, 313B, 314C, 315, 315B, 315B FM L, 315C, 317B LN, 318B, 318C, 319C, 320 L, 3208, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320N, 321B, 322, 322 FM L, 325, 325 L, 32... |
| 3E6455 SWITCH AS-PRESSURE |
| 320B, 322B, 322B L, 322C, 322C FM, 325B, 325B L, 330, 3306B, 330B, 330B L, 330C, 330C L, 3406C, 3412C, 345B L, 69D, 824G, 825G, 826G, 918F, 924F, 928F, 938F, 950G, 962G, 980G, AD40, AD45, AE40, AE40 I... |
| 2130677 SWITCH AS-LIQUID LEVEL |
| 1090, 1190, 1190T, 120M 2, 1290T, 1390, 2290, 2384C, 2390, 2391, 2484C, 2491, 2590, 2864C, 311D LRR, 3126B, 312B L, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313... |
| 2666210 SWITCH-PRESSURE |
| 311C, 312, 312C, 312C L, 314C, 318B, 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 5I8005 SWITCH-PRESSURE |
| 311, 311B, 312, 312B, 312B L, 312C, 315, 315B, 315B L, 315C, 317B LN, 318B, 320, 320 L, 320B, 320C, 321B |
| 1300270 SWITCH AS-PRESSURE |
| 307D, 311B, 311D LRR, 311F LRR, 312B, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314E CR, 314E LCR, 315C, 315D L, 318B, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 32... |
| 2833074 SWITCH AS-TOGGLE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2 L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, ... |
| 1636711 SWITCH AS-TOGGLE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2 L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, ... |
| 1673466 SWITCH AS-PRESSURE |
| 311C, 312C, 312C L, 312D, 314C, 315C, 315D L, 318C, 319C, 319D, 320C, 320C FM, 320C L, 320D, 320D L, 320D LRR, 321C, 321D LCR, 322C, 322C FM, 323D L, 323D LN, 324D, 324D FM, 324D L, 324D LN, 325C, 325... |

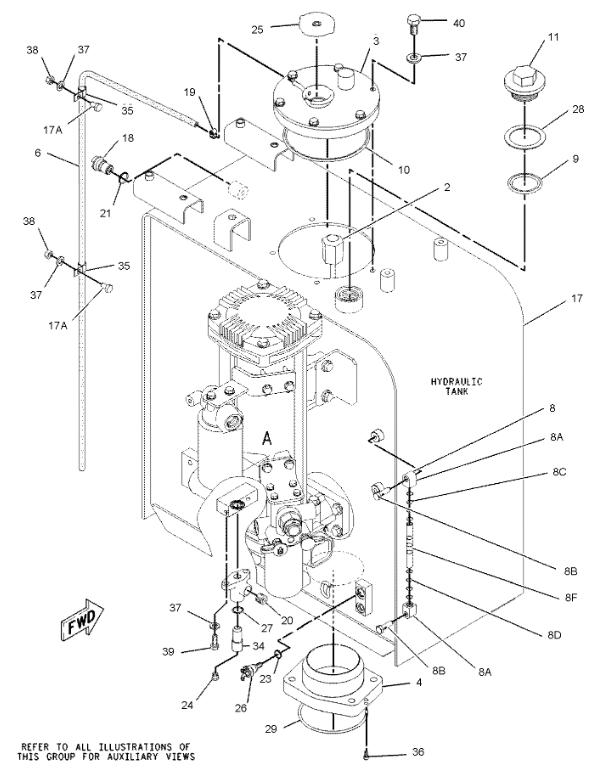

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 155-3624 | [1] | PLUG AS | |
| 2 | 158-8988 Y | [1] | SCREEN GP-HYDRAULIC | |
| 3 | 165-3254 | [1] | COVER AS | |
| 4 | 165-3256 | [1] | PIPE AS | |
| 5 | 173-4865 | [1] | SUPPORT AS | |
| 6 | 173-4866 | [1] | HOSE | |
| 7 | 199-4830 | [1] | PIPE AS | |
| 8 | 094-3245 | [1] | GAUGE GP-SIGHT | |
| 8A. | 7Y-4754 | [2] | BLOCK | |
| 8B. | 094-3247 M | [2] | BOLT (M10X1.5X36-MM) | |
| 8C. | 095-1514 | [4] | SEAL-O-RING | |
| 8D. | 095-1517 | [4] | SEAL-O-RING | |
| 8F. | 096-4754 | [1] | PIPE | |
| 9 | 095-1608 | [1] | SEAL-O-RING | |
| 10 | 095-1735 | [1] | SEAL-O-RING | |
| 11 | 105-2652 | [1] | PLUG | |
| 12 | 112-0065 | [1] | BRACKET | |
| 13 | 126-2075 Y | [1] | FILTER GP-OIL | |
| 14 | 158-8987 Y | [1] | FILTER & VALVE GP-PILOT (HYDRAULIC OIL) | |
| 15 | 188-4140 CY | [1] | FILTER GP-OIL (HYDRAULIC RETURN) | |
| 16 | 164-5590 | [1] | VALVE AS-FLUID SAMPLING | |
| 17 | 168-9689 | [1] | TANK AS-HYDRAULIC | |
| 17A. | 8T-4191 M | [2] | BOLT (M10X1.5X16-MM) | |
| 18 | 170-9376 | [1] | SWITCH AS-LIQUID LEVEL (OIL LEVEL) | |
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | ||
| 3E-3365 | [1] | WEDGE-RECEPTACLE LOCK (2-PIN) | ||
| 19 | 1P-4278 | [1] | CLAMP-HOSE | |
| 20 | 2B-0858 | [1] | PLUG-PIPE | |
| 21 | 3D-2824 | [1] | SEAL-O-RING | |
| 22 | 3J-1907 | [1] | SEAL-O-RING | |
| 23 | 3K-0360 | [1] | SEAL-O-RING | |
| 24 | 4B-7739 | [1] | PLUG-DRAIN | |
| 25 | 4I-3745 | [1] | CAP-PRESSURE | |
| 26 | 4I-5394 | [1] | SENDER AS-TEMPERATURE (HYDRAULIC OIL) | |
| 4I-5490 M | [2] | SCREW-MACHINE (M4X0.7X6-MM) | ||
| 095-0826 | [2] | LOCKWASHER | ||
| 27 | 4J-5267 | [1] | SEAL-O-RING | |
| 28 | 6C-8496 | [1] | WASHER (46X60.5X1.5-MM THK) | |
| 29 | 6D-9157 | [1] | SEAL-O-RING | |
| 30 | 6J-2680 | [2] | SEAL-O-RING | |
| 31 | 6V-0852 | [1] | CAP-DUST | |
| 32 | 6V-3965 | [1] | FITTING (QUICK DISCONNECT) | |
| 33 | 8C-3451 | [1] | CAP-DUST (HYDRAULIC OIL) | |
| 34 | 8H-9819 | [1] | ADAPTER-PLUG | |
| 35 | 8M-2770 | [2] | CLIP (LOOP) | |
| 36 | 8T-0267 M | [2] | BOLT-SOCKET HEAD (M6X1X12-MM) | |
| 37 | 8T-4121 | [18] | WASHER-HARD (11X21X2.5-MM THK) | |
| 38 | 8T-4133 M | [2] | NUT (M10X1.5-THD) | |
| 39 | 8T-4136 M | [4] | BOLT (M10X1.5X25-MM) | |
| 40 | 8T-4137 M | [8] | BOLT (M10X1.5X20-MM) | |
| 41 | 8T-4183 M | [2] | BOLT (M12X1.75X40-MM) | |
| 42 | 8T-4195 M | [4] | BOLT (M10X1.5X30-MM) | |
| 43 | 8T-4223 | [10] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 44 | 8T-4224 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| 45 | 8T-4908 M | [4] | BOLT (M8X1.25X25-MM) | |
| 46 | 8T-4956 M | [8] | BOLT (M12X1.75X35-MM) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
- Other hot selling parts

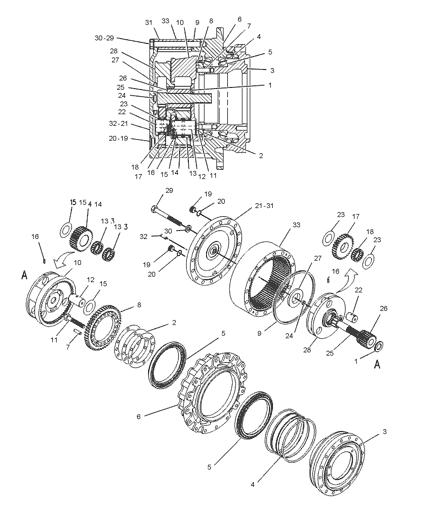

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
