20Y-810-1221 20Y8101221 Condenser Assembly KOMATSU Excavator Spare Parts For PC130-8
- 20Y-810-1221 20Y8101221 Condenser Assembly KOMATSU Excavator Spare Parts Fit For PC130-8
- Specifiion
| Name | Condenser Assembly |
| Parts No | 20Y-810-1221 20Y8101221 |
| Machene Model | PC130 PC138 PC138US PC160 PC180 PC190 PC200 |
| egory | Cooling System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
- More other condenser parts fit for KOMATSU machine
| TW7004-0060 CONDENSER |
| BP500, D20A, D20AG, D20P, D20PG, D20PL, D20PLL, D21A, D21AG, D21P, D21PG, D21PL, D31A, D31P, D31PG, D31PL, D31PLL, D37A, D37P, D37PG, PC100, PC100L, PC120, PC130, PC200, PC220, PC300, PC300HD, PC310, ... |
| 207-979-5420 CONDENSER ASS'Y |
| PC100, PC100L, PC120, PC130, PC300, PC300HD, PC310, PC400, PC400HD, PC410 |
| 201-978-6520 CONDENSER |
| PC100, PC100L, PC120, PC130, PC150, PC60, PC60L, PC70, PW100S |
| 203-979-6380 CONDENSER ASS'Y |
| CD110R, CL60, PC100, PC100L, PC100N, PC120, PC128US, PC128UU, PC130, PC138US, PC158, PC158US, PC200, PC228, PC228US, PC228UU, PC400, PC400ST, PC450 |
| 451-562 CONDENSER |
| MX45 |
| 459-106 CONDENSER |
| MX272, MX502 |
| 203-979-6281 CONDENSER ASS'Y |
| GD505A, GD521A, PC1100, PC1100SE, PC1100SP, PC160, PC180, PC200, PC200SC, PC210, PC240, PC290, PC450, PC600, PC650, PC750, PC750SE |
| 205-979-6150 CONDENSER ASS'Y |
| BP500, PC1000, PC1000SE, PC150, PC1600, PC1600SP, PC200, PC220, PC300, PC300HD, PC310, PC400, PC400HD, PC410, PC650, PC650SE |
| 203-978-4340 CONDENSER ASS'Y |
| PC100, PC100L, PC100S, PC100SS, PC120, PC120S, PC120SS, PC150, PC60, PC75UU, PW100, PW100N, PW100NS, PW100S |
| 205-978-6370 CONDENSER |
| D155A, PC100, PC100L, PC120, PC150, PC200, PC220, PC300, PC400, PC80, PF5, PW100 |
| 205-981-5120 CONDENSER UNIT |
| D155A, PC100, PC100L, PC120, PC150, PC200, PC220, PC300, PC400, PC60, PC80, PF5, PW100, WF22T |
| 205-06-51290 CONDENSER |
| PC100, PC100L, PC100U, PC120, PC150, PC200, PC220, PC300, PC400, PC60, PC60L, PC60U, PC650, PC80, PF3W, PW100, PW100N, PW100NS, PW100S |

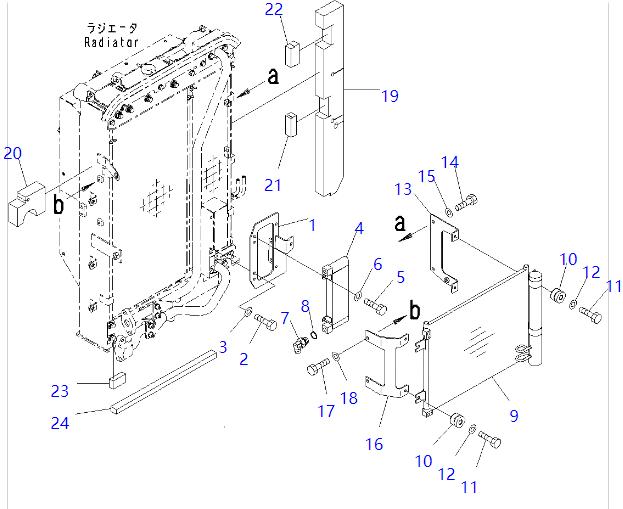

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 203-03-12441 | [1] | Bracket Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 2 | 01010-81025 | [2] | Bolt Komatsu | 0.36 kg. |
| ["SN: 80001-UP"] analogs:["0101051025", "0101651025", "801015109"] | ||||
| 3 | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| ["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 4 | 208-03-71161 | [1] | Fuel Cooler Komatsu | 0.85 kg. |
| ["SN: 80001-UP"] analogs:["2080371160"] | ||||
| 5 | 01010-80825 | [4] | Bolt Komatsu | 0.015 kg. |
| ["SN: 80001-UP"] analogs:["0101050825", "01010D0825", "801015087"] | ||||
| 6 | 01643-30823 | [4] | Washer Komatsu | 0.004 kg. |
| ["SN: 80001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 7 | 02782-10315 | [2] | Elbow Komatsu | 0.156 kg. |
| ["SN: 80001-UP"] | ||||
| 8 | 07002-12034 | [2] | O-ring Komatsu China | 0.94 kg. |
| ["SN: 80001-UP"] analogs:["0700002034", "0700202034", "0700012034"] | ||||
| 9 | 20Y-810-1221 | [1] | Condenser Assembly Komatsu | 4.92 kg. |
| ["SN: 80001-UP"] | ||||
| 9. | 20Y-810-1250 | [1] | Filter Komatsu | 5.5 kg. |
| ["SN: 80001-UP"] | ||||
| 10 | 20Y-810-1240 | [4] | Cushion Komatsu | 0.05 kg. |
| ["SN: 80001-UP"] | ||||
| 11 | 01010-80835 | [4] | Bolt Komatsu | 0.019 kg. |
| ["SN: 80001-UP"] | ||||
| 13 | 203-03-12430 | [1] | Bracket Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 16 | 203-03-12261 | [1] | Bracket Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 19 | 203-03-12451 | [1] | Sheet Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 20 | 203-03-12810 | [1] | Sheet Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 21 | 203-03-12750 | [1] | Sheet Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 22 | 203-03-12780 | [1] | Sheet Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 23 | 203-03-12640 | [1] | Sheet Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 24 | 203-03-12611 | [1] | Sheet Komatsu China | |
| ["SN: 80001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
