XKAH00410 Shaft HYUNDAI Excavator Travel Motor Parts For R110-7A R140LC-7
- XKAH00410 Shaft HYUNDAI Excavator Travel Motor Parts For R110-7A R140LC-7
- Specifiion
| Name | Shaft |
| Parts No | XKAH00410 |
| Machine Model | R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 |
| egory | Travel Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
3-SERIES CRAWLER EXCAVATOR R210LC3H
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R250LC7 R250LC7A RC215C7 RC215C7H Hyundai
- More other shaft parts fit for HYUNDAI machine
| 131155 SHAFT |
| R180LC3, R200NLC3, R210LC3, R210LC3H |
| 112568A SHAFT |
| R210ECONO, R210LC3, R210LC3H, R210LC3LL |
| 131134C SHAFT-CRANK |
| R210LC3, R210LC3H |
| 124568 SHAFT-DRIVING(F) |
| R210LC3H |
| 124569 SHAFT-DRIVING(R) |
| R210LC3H |
| 39Q6-12121 SHAFT-DRIVE |
| HW210, HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W9A, R210W9AMH, R215LC7, R220LC9A, R2... |
| XKBH-01810 SHAFT-ROCKER |
| R210LC7H, R210LC9BH |
| XKBH-01793 SHAFT-CAM |
| R210LC7H, R210LC9BH |
| XKBH-01787 SHAFT-IDLER 1 |
| R210LC7H, R210LC9BH |
| XKBH-01788 SHAFT-IDLER 2 |
| R210LC7H, R210LC9BH |
| XKBH-01857 SHAFT |
| R210LC7H, R210LC9BH |

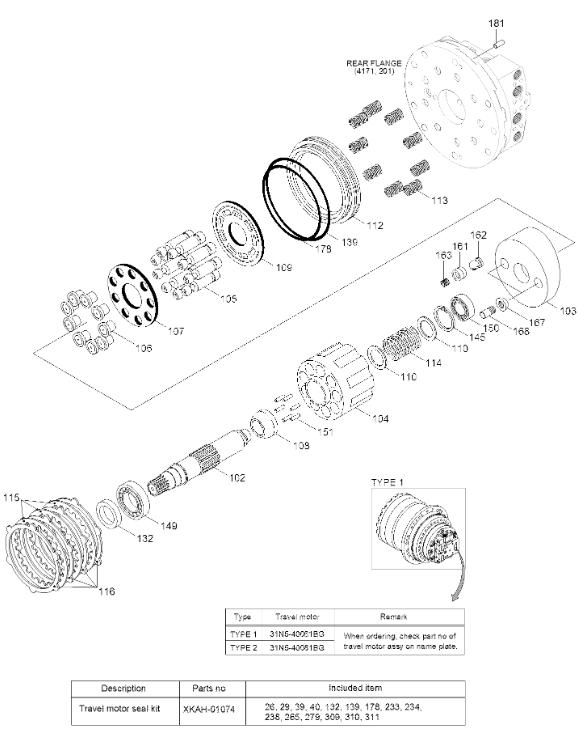

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4139A |
| N*-1. | XKAH-00870 | [1] | TRAVEL ROTARY ASSY | |
| *-5. | XKAH-00891 | [1] | C/BLOCK & PISTON KIT | |
| 104 | XKAH-00892 | [1] | BLOCK-CYL | |
| 110 | XKAH-00407 | [2] | WASHER | |
| 114 | XKAH-00406 | [1] | SPRING | |
| 145 | XKAH-00405 | [1] | RING-SNAP | |
| *-51. | XKAH-00893 | [1] | PISTON ASSY | |
| N105. | XKAH-00894 | [9] | PISTON | |
| N106. | XKAH-00419 | [9] | SHOE | |
| 151 | XKAH-00404 | [6] | ROLLER | |
| 107 | XKAH-00403 | [1] | PLATE-RETAINER | |
| 108 | XKAH-00402 | [1] | BALL-THRUST | |
| *-52. | XKAH-00895 | [1] | PISTON ASSY | |
| N161. | XKAH-00422 | [1] | PISTON | |
| N162. | XKAH-00421 | [1] | SHOE | |
| 163 | XKAH-00094 | [1] | SPRING-2 SPEED | |
| 102 | XKAH-00410 | [1] | SHAFT-MAIN | |
| 103 | XKAH-00896 | [1] | PLATE-SWASH | |
| 109 | XKAH-00897 | [1] | PLATE-TIMING | |
| 115 | XKAH-00399 | [3] | PLATE-FRICTION | |
| 116 | XKAH-00401 | [4] | PLATE-MATING | |
| 112 | XKAH-00898 | [1] | PISTON-PARKING | |
| 113 | XKAH-00397 | [9] | SPRING | |
| K132. | XKAH-00388 | [1] | OIL SEAL | |
| 149 | XKAH-00899 | [1] | BEARING-BALL | |
| 150 | XKAH-00900 | [1] | BEARING-BALL | |
| K139. | XKAH-00396 | [1] | O-RING | |
| K178. | XKAH-00395 | [1] | O-RING | |
| 181 | XKAH-00377 | [2] | PIN-PARALLEL | |
| 167 | XKAH-00095 | [2] | PIVOT | |
| 168 | XKAH-00034 | [2] | PIN-PARALLEL | |
| K. | XKAH-01074 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
