20Y-54-74182 20Y5474182 Lock Support For KOMATSU Excavators PC160 PC190 PC20MR PC210
- 20Y-54-74182 20Y5474182 Lock Support For KOMATSU Excavators PC160 PC190 PC20MR PC210
- Specifiion
| egory | KOMATSU Excavators spare parts |
| Name | Lock |
| Parts No | 20Y-54-74182 20Y5474182 |
| Machine Model |
PC160 PC190 PC20MR PC210 PC210MH PC230NHD PC240 PC290 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC160 PC190 PC20MR PC210 PC210MH PC230NHD PC240 PC290

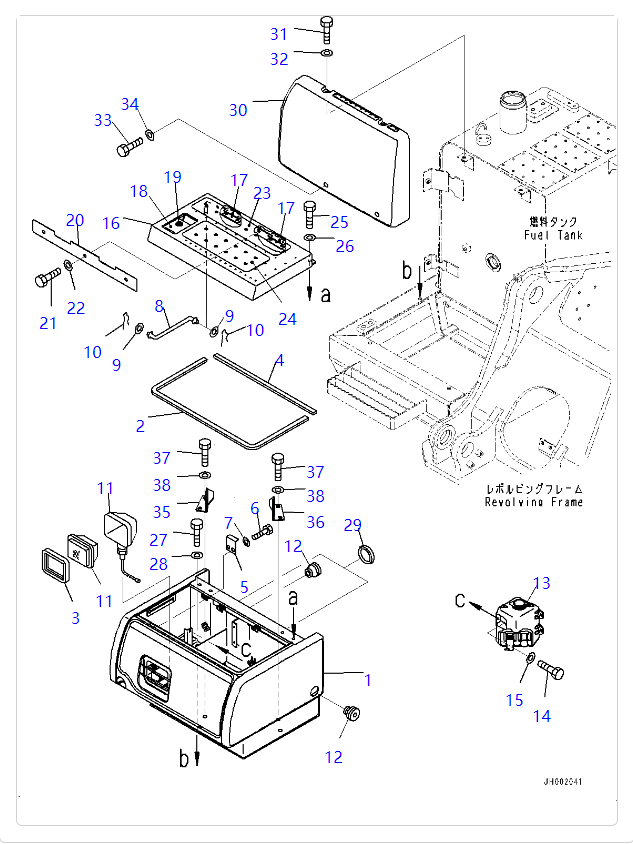

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21K-54-73522 | [1] | CAASE Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 2 | 21K-54-73560 | [1] | Seal Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 3 | 203-54-67760 | [1] | Seal Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 4 | 203-54-67780 | [1] | Seal Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 5 | 21K-54-73580 | [1] | Bracket Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 6 | 01010-81230 | [2] | Bolt Komatsu | 0.043 kg. |
| ["SN: 25001-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 7 | 01643-31232 | [2] | Washer Komatsu | 0.027 kg. |
| ["SN: 25001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 8 | 203-54-56630 | [1] | Rod Komatsu | 0.1 kg. |
| ["SN: 25001-UP"] | ||||
| 9 | 01643-30623 | [2] | Washer Komatsu | 0.002 kg. |
| ["SN: 25001-UP"] analogs:["0164370623"] | ||||
| 10 | 04052-20633 | [2] | Pin, Snap Komatsu | 0.5 kg. |
| ["SN: 25001-UP"] | ||||
| 11 | 11Y-06-11372 | [1] | Lamp Assembly, Working Komatsu | 0.542 kg. |
| ["SN: 25001-UP"] | ||||
| 11. | 421-06-23330 | [1] | Bulb, 70watt Komatsu China | 0.03 kg. |
| ["SN: 25001-UP"] analogs:["17A0617970", "1444002X"] | ||||
| 12 | 08037-12536 | [2] | Grommet Komatsu | 0.4 kg. |
| ["SN: 25001-UP"] analogs:["5615063191"] | ||||
| 13 | 21T-06-11351 | [1] | Tank Assembly Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 14 | 01010-80616 | [3] | Bolt Komatsu | 0.006 kg. |
| ["SN: 25001-UP"] analogs:["801014044", "0101050616", "0101030616", "0101000616", "801015064"] | ||||
| 15 | 209-72-12230 | [3] | Washer Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 16 | 21K-54-73533 | [1] | Cover Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 17. | 20Y-54-74161 | [2] | Hinge,Welded Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 18. | 20Y-54-74172 | [1] | Lock,Welded Komatsu | 0.74 kg. |
| ["SN: 25001-UP"] | ||||
| 19 | 20Y-54-74182 | [1] | Lock Assembly Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 20 | 21K-54-73590 | [1] | Plate Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 21 | 01010-81020 | [3] | Bolt Komatsu | 0.161 kg. |
| ["SN: 25001-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 22 | 01643-31032 | [3] | Washer Komatsu | 0.054 kg. |
| ["SN: 25001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 23 | 21K-00-71370 | [1] | Plate Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 24 | 20Y-00-42140 | [1] | Plate Komatsu | 0.04 kg. |
| ["SN: 25001-UP"] | ||||
| 28 | 124-54-26540 | [4] | Washer Komatsu | 0.001 kg. |
| ["SN: 25001-UP"] | ||||
| 29 | 14X-54-12590 | [2] | Cap Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 30 | 21K-54-73541 | [1] | Cover Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 35 | 20Y-54-61670 | [1] | Bracket Komatsu China | |
| ["SN: 25001-UP"] analogs:["20Y5461670NK"] | ||||
| 36 | 20Y-54-61680 | [1] | Bracket Komatsu China | |
| ["SN: 25001-UP"] analogs:["20Y5461680NK"] | ||||
- More other lock parts applied to KOMATSU equipment
| 20Y-54-74172 Lock |
| AIR, GD555, GD655, GD675, HB205, HB215, PC130, PC160, PC190, PC200, PC220, PC270, PC300, PC350, PC400, PC450, PC550, PC600, PC650, PC700, PC800, PC800SE, PC850, PC850SE, PRESSURE, RAIN |
| 20Y-54-71491 Lock,Welded |
| AIR, BR380JG, HB205, HB215, PC130, PC138, PC200, PC210, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC360, PC400, PC450, PC490, PC550, PC600, PC650, PC700, PRESSURE, RAIN |
| 20Y-53-13151 Lock |
| AIR, COOLANT, HB205, HB215, PC130, PC138, PC138US, PC160, PC190, PC200, PC210, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC360, PC400, PC450, PC490, PC550, PC600, PC650, PC700, PC800, ... |
| 20Y-53-11761 Lock Assembly |
| PC300, PC350, PRESSURE, RAIN |
| 20Y-53-11981 Lock |
| PC130, PC220, PC300, PC350, PC400, PRESSURE, RAIN |
| 20Y-54-38802 LOCK ASS'Y,R.H. |
| PC100, PC100L, PC120, PC130, PC200, PC210, PC220 |
| 20T-54-32810 LOCK ASS'Y,L.H. |
| PC10, PC15, PC15T, PC20, PC28UD, PC28UU, PC30, PC30UU, PC38UU, PC38UUM, PC40, PC50UU, PC75UU, PW30, PW30T |
| 20Y-53-11721 LOCK |
| CARRIER, PC130, PC220, PC300, PC350, PC400, PC88MR, PRESSURE, RAIN |
| 20Y-53-11762 LOCK ASS'Y |
| BOOM,, CARRIER, PC138, PC138US, PC200, PC210, PC220, PC220LL, PC228, PC228US, PC230NHD, PC240, PC270, PC290, PC350, PC450, PC78US, PC78UU, PC88MR, PRESSURE, WINDOW |
| 20Y-54-74181 LOCK ASS'Y |
| PC138, PC138US, WINDOW |
| ND017212-1720 LOCK |
| BOOM,, CARRIER, PC118MR, PC138, PC138US, PC228, PC228US, PC78US, PC78UU, PC88MR, PW118MR, PW98MR, WINDOW |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
