21QA33100 21QA-33100 MCU Excavator Controller For HYUNDAI Excavator R380LC9A R430LC9A
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 21QA33100 21QA-33100 MCU Excavator Controller Fit For HYUNDAI Excavator R380LC9A R430LC9A
- Specifiion
| spare parts name | MCU |
| Equipment Model | R380LC9A R430LC9A |
| Parts egory | HYUNDAI Excavator Controller |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
9-SERIES CRAWLER EXCAVATOR R380LC9A R430LC9A
- More other mcu parts applicable for HYUNDAI machine
| 21N6-33102 MCU(MACHINE CONTROL UNIT) |
| R215LC7, RD210-7 |
| 21N6-33103 MCU(MACHINE CONTROL UNIT) |
| R215LC7, RD210-7 |
| 21N1-32200 MCU(MACHINE CONTROL UNIT) |
| R80-7A |
| 21N1-32101 MCU(MACHINE CONTROL UNIT) |
| R80-7 |
| 21ND-34200 MCU(MACHINE CNTL UNIT) |
| R800LC7A |
| 21ND-34100 MCU(MACHINE CNTL UNIT) |
| R8007AFS, R800LC7A |
| 21M9-32280 MCU(MACHINE CNTL UNIT) |
| R55W-9 |
| 21M9-32110 MCU(MACHINE CNTL UNIT) |
| R55-9 |
| 21M9-32100 MCU(MACHINE CNTL UNIT) |
| R55-9 |
| 21QB-32181 MCU(MACHINE CNTL UNIT) |
| R520LC9 |
| 21QB-32101 MCU(MACHINE CNTL UNIT) |
| R480C9MH, R480LC9 |
| 21NB-32201 MCU(MACHINE CNTL UNIT) |
| R450LC7A, R500LC7A |

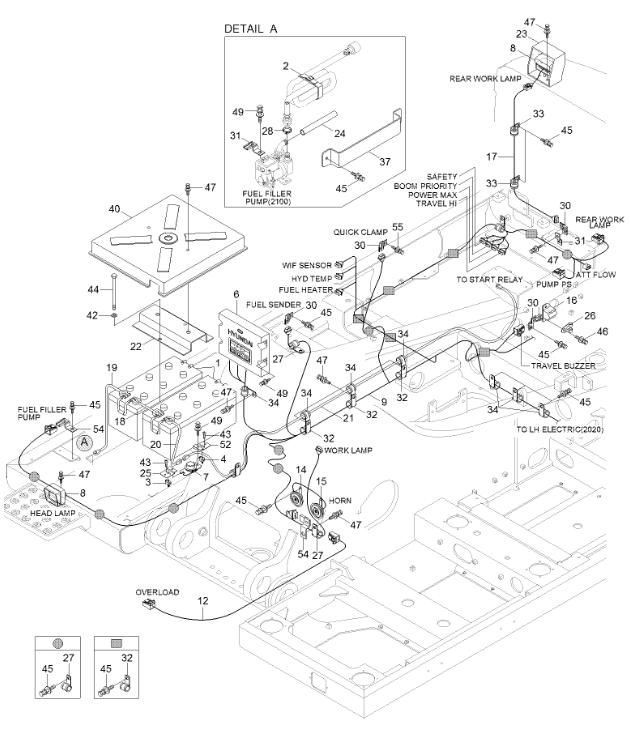

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | E125-1501 | [2] | BATTERY | |
| 2 | E127-3158 | [1] | BAND-FUEL PUMP | |
| 3 | 21Q4-01161 | [1] | BREAKER-CIRCUIT ,30A | |
| 4 | 21Q6-45100 | [1] | BREAKER-CIRCUIT ,90A | |
| 6 | 21QA-33100 | [1] | MCU(MACHINE CNTL UNIT) | |
| 7 | 21QA-70010 | [1] | RELAY-BATTERY | |
| 7 | 21QA-70011 | [1] | RELAY-BATTERY | |
| 7 | 21E5-0003 | [1] | RELAY-BATTERY | |
| 8 | 21QB-60700 | [2] | WORK LAMP ASSY | |
| 8-1. | S866-240650 | [1] | BULB-H3,65W | NOT SHOWN |
| 9 | 21QA-13103 | [1] | HARNESS-FRAME | |
| 9 | 21QA-13105 | [1] | HARNESS-FRAME | |
| 9 | 21QA-13106 | [1] | HARNESS-FRAME | |
| 9-1. | 21EA-50550 | [2] | DIODE-IN5406 | NOT SHOWN |
| 12 | 21Q8-11150 | [1] | HARNESS-OVERLOAD | |
| 14 | 21N5-10061 | [1] | HORN-HIGH | |
| 15 | 21N5-10051 | [1] | HORN-LOW | |
| 16 | 21N4-46800 | [1] | BUZZER-BACK | |
| 17 | 21Q8-11140 | [1] | HARNESS-EXTENSION | |
| 18 | 21EA-00210 | [1] | CABLE(BATT-BATT) | |
| 19 | 24L3-01120 | [1] | CABLE(BATT-EARTH) | |
| 20 | 21N8-10300 | [1] | CABLE(BATT-RELAY) | |
| 21 | 21QA-60030 | [1] | CABLE(BATT RY-STARTER) | |
| 22 | 21Q8-42060 | [1] | BRACKET-BATTERY | |
| 23 | 21Q4-47020 | [1] | GUARD-BACK LIGHT | |
| 24 | 21Q8-21620 | [1] | HOSE-OUTLET | |
| 25 | 21Q8-22300 | [1] | PLATE-CIRCUIT BREAKER | |
| 26 | S593-000802 | [1] | CLIP-HARNESS | |
| 27 | 31L7-10190 | [9] | CLAMP-TUBE | |
| 28 | S520-032000 | [1] | CLAMP-HOSE | |
| 30 | 25D1-10640 | [4] | CLIP ASSY | |
| 31 | 21N4-01130 | [2] | PLATE-CLIP | |
| 32 | 31L7-10200 | [9] | CLAMP-TUBE | |
| 33 | 31L7-10350 | [2] | CLAMP | |
| 34 | 31L7-10230 | [7] | CLAMP-TUBE | |
| 37 | 21QB-20080 | [1] | PLATE-CLAMP | |
| 40 | 21Q8-42041 | [1] | COVER-BATTERY | |
| 42 | S403-10100B | [2] | WASHER-PLAIN | |
| 43 | S131-042046 | [4] | SCREW-W/WASHER | |
| 44 | S017-102306 | [2] | BOLT-HEX | |
| 45 | S037-101526 | [20] | BOLT-W/WASHER | |
| 46 | S035-081526 | [1] | BOLT-W/WASHER | |
| 47 | S037-102026 | [6] | BOLT-W/WASHER | |
| 49 | S035-083026 | [8] | BOLT-W/WASHER | |
| 52 | 21Q6-45400 | [1] | PLATE-CIRCUIT BREAKER | |
| 54 | 25D1-10650 | [3] | CLIP ASSY | |
| 55 | S037-121526 | [1] | BOLT-W/WASHER |
- Advantage
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
