22U-26-21580 22U2621580 Carrier Excavator Swing Gear Fit KOMATSU HB205 HB215 PC200
- 22U-26-21580 22U2621580 Carrier Excavator Swing Gear Fit KOMATSU HB205 HB215 PC200
- Specifiion
| Appliion | KOMATSU excavator swing gear |
| Name | Carrier |
| Parts No |
22U-26-21580 22U2621580 |
| Model | HB205 HB215 PC200 PC210 PC228 PC228US PC230NHD PW200 PW220 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
EXCAVATORS HB205 HB215 PC200 PC210 PC228 PC228US PC230NHD PW200 PW220
OTHER BP500
- More carrier parts supply to KOMATSU machine
| 234-15-22340 CARRIER |
| GD705A, GD725A, GD805A, GD825A, GH320 |
| 421-15-12332 CARRIER |
| 545, WA450, WA470, WF450T |
| 567-22-71101 CARRIER ASS'Y |
| HD255 |
| 234-15-12331 CARRIER |
| GD40HT, GD705R |
| 567-15-12350 CARRIER |
| HD200, HD205 |
| 427-15-12330 CARRIER |
| WA800, WA900, WD900 |
| 421-22-21100 CARRIER ASS'Y |
| WA450, WA450L, WA470, WF450, WF450T |

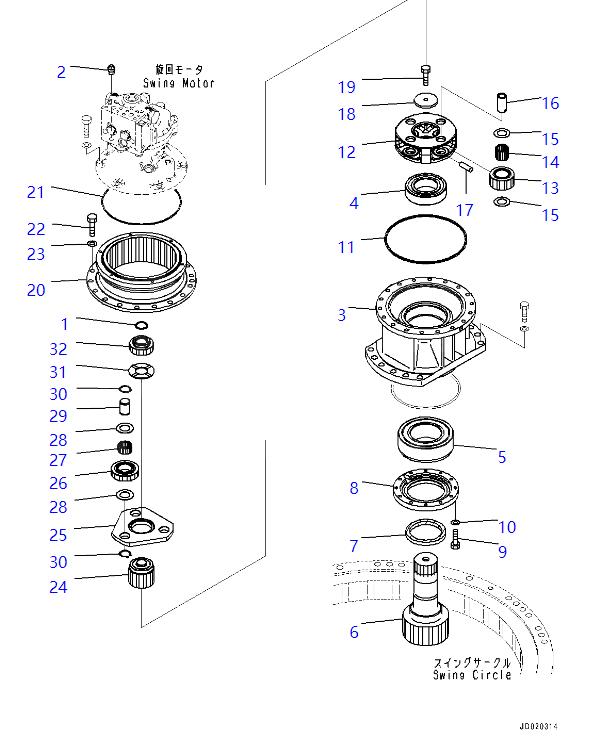

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 22U-26-21280 | [1] | Ring Komatsu | 0.001 kg. |
| ["SN: 350001-UP"] analogs:["20Y2622270"] | ||||
| 2 | 07042-00312 | [1] | Plug, Taper Komatsu | 0.031 kg. |
| ["SN: 350001-UP"] analogs:["0704210312"] | ||||
| 3 | 20Y-26-31120 | [1] | CAASE Komatsu | 68.8 kg. |
| ["SN: 350001-UP"] | ||||
| 4 | 20Y-26-22331 | [1] | Bearing Komatsu China | 3.28 kg. |
| ["SN: 351534-UP"] analogs:["20Y2622330", "20Y2622430"] | ||||
| 4 | 20Y-26-22330 | [1] | Bearing Komatsu China | 3.28 kg. |
| ["SN: 350001-351533"] analogs:["20Y2622331", "20Y2622430"] | ||||
| 5 | 20Y-26-22342 | [1] | Bearing Komatsu China | 9.6 kg. |
| ["SN: 351534-UP"] analogs:["20Y2622340", "20Y2622440"] | ||||
| 5 | 20Y-26-22340 | [1] | Bearing Komatsu China | 9.6 kg. |
| ["SN: 350001-351533"] analogs:["20Y2622342", "20Y2622440"] | ||||
| 6 | 206-26-69112 | [1] | Shaft Komatsu | 32.5 kg. |
| ["SN: 351388-UP"] analogs:["2062669111"] | ||||
| 6 | 206-26-69111 | [1] | Shaft Komatsu | 32.5 kg. |
| ["SN: 350001-351387", "SCC: A1"] analogs:["2062669112"] | ||||
| 7 | 20Y-26-22420 | [1] | Seal Komatsu China | 0.3 kg. |
| ["SN: 350001-UP"] | ||||
| 8 | 20Y-26-22191 | [1] | Cover Komatsu | 4.6 kg. |
| ["SN: 350001-UP"] analogs:["20Y2622190"] | ||||
| 9 | 01010-81045 | [12] | Bolt Komatsu | 0.039 kg. |
| ["SN: 350001-UP"] analogs:["0101051045", "01010D1045"] | ||||
| 10 | 01643-31032 | [12] | Washer Komatsu | 0.054 kg. |
| ["SN: 350001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 11 | 07000-15310 | [1] | O-ring Komatsu China | 0.035 kg. |
| ["SN: 350001-UP"] analogs:["0700005310"] | ||||
| 12 | 22U-26-21580 | [1] | Carrier Komatsu | 8.7 kg. |
| ["SN: 350001-UP"] | ||||
| 13 | 22U-26-21540 | [4] | Gear Komatsu | 2.46 kg. |
| ["SN: 350001-UP"] | ||||
| 14 | 20G-26-11241 | [4] | Bearing Komatsu China | 0.24 kg. |
| ["SN: 350001-UP"] analogs:["20G2611240", "20G2611410"] | ||||
| 15 | 20Y-27-21240 | [8] | Washer, Thrust Komatsu China | 0.02 kg. |
| ["SN: 350001-UP"] | ||||
| 16 | 20Y-26-22250 | [4] | Pin Komatsu China | 0.52 kg. |
| ["SN: 350001-UP"] | ||||
| 17 | 20Y-27-21280 | [4] | Pin Komatsu China | 0.01 kg. |
| ["SN: 350001-UP"] | ||||
| 18 | 20Y-26-21240 | [1] | Plate Komatsu | 5.1 kg. |
| ["SN: 350001-UP"] | ||||
| 19 | 112-32-11211 | [1] | Bolt Komatsu | 0.09 kg. |
| ["SN: 350001-UP"] | ||||
| 20 | 22U-26-21551 | [1] | Gear Komatsu | 25.41 kg. |
| ["SN: 350001-UP"] analogs:["22U2621551K2", "22U2621550", "R22U2621551"] | ||||
| 21 | 20K-22-11190 | [1] | O-ring Komatsu | 0.02 kg. |
| ["SN: 350001-UP"] analogs:["20G2211190"] | ||||
| 22 | 01010-81440 | [18] | Bolt Komatsu | 0.073 kg. |
| ["SN: 350001-UP"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"] | ||||
| 23 | 01643-31445 | [18] | Washer, Flat Komatsu | 0.019 kg. |
| ["SN: 350001-UP"] analogs:["0164301432"] | ||||
| 24 | 22U-26-21530 | [1] | Gear Komatsu | 5.8 kg. |
| ["SN: 350001-UP"] | ||||
| 25 | 22U-26-21572 | [1] | Carrier Komatsu | 2.96 kg. |
| ["SN: 350001-UP"] analogs:["22U2621570"] | ||||
| 26 | 22U-26-21520 | [3] | Gear Komatsu | 1.54 kg. |
| ["SN: 350001-UP"] | ||||
| 27 | 20Y-26-21281 | [3] | Bearing Komatsu | 0.1 kg. |
| ["SN: 350001-UP"] analogs:["20Y2621280", "20X2621240", "20Y2621510"] | ||||
| 28 | 22U-26-21230 | [6] | Washer, Thrust Komatsu | 1 kg. |
| ["SN: 350001-UP"] | ||||
| 29 | 22U-26-21210 | [3] | Pin Komatsu | 0.81 kg. |
| ["SN: 350001-UP"] | ||||
| 30 | 04064-03515 | [6] | Ring, Snap Komatsu | 0.005 kg. |
| ["SN: 350001-UP"] | ||||
| 31 | 22U-26-21250 | [1] | Washer, Thrust Komatsu | 1 kg. |
| ["SN: 350001-UP"] | ||||
| 32 | 22U-26-21510 | [1] | Gear Komatsu | 1.56 kg. |
| ["SN: 350001-UP"] | ||||
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
