• 20Y-979-2471 20Y9792471 Air Panel Assy Support For KOMATSU Excavator PC200 PC210 PC220

• ​Specifiion

• Compatible models

EXCAVATORS PC200 PC210 PC220 PC230 PC250

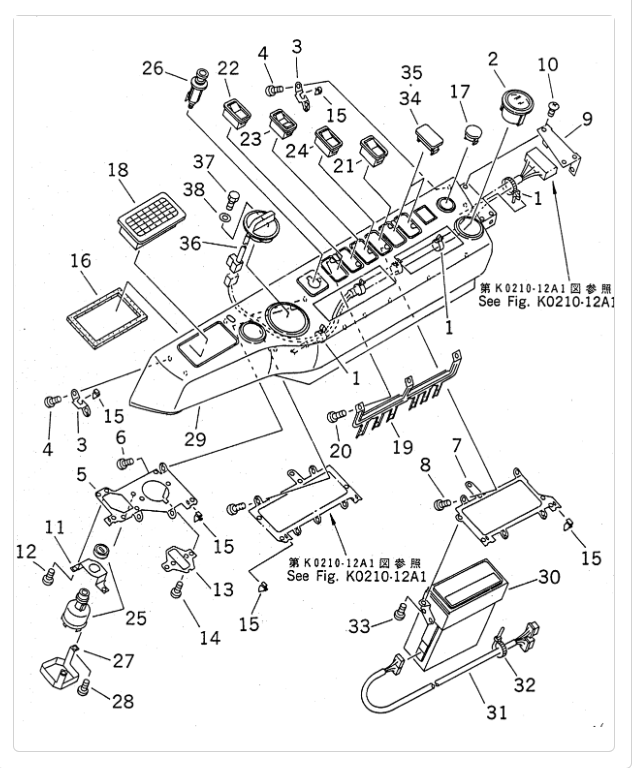

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
1	20Y-06-23940	[5]	BAND Komatsu	0.01 kg.
			["SN: 80001-@"]
2	08687-42403	[1]	METER Komatsu	0.111 kg.
			["SN: 80001-87999"] analogs:["2030656240"]
3	20Y-06-23710	[2]	STAY Komatsu China
			["SN: 80001-@"]
4	01370-00512	[4]	SCREW Komatsu	0.003 kg.
			["SN: 80001-@"]
5	20Y-06-23720	[1]	STAY Komatsu China
			["SN: 80001-@"]
7	20Y-06-23730	[1]	STAY Komatsu China
			["SN: 80001-@"]
9	20Y-06-23740	[1]	STAY Komatsu China
			["SN: 80001-@"]
10	01023-10408	[5]	SCREW Komatsu	0.002 kg.
			["SN: 80001-@"]
11	20Y-06-23750	[1]	BRACKET Komatsu China
			["SN: 80001-@"]
12	01023-10510	[2]	SCREW Komatsu	0.003 kg.
			["SN: 80001-@"]
13	20Y-06-23760	[1]	BRACKET Komatsu China
			["SN: 80001-@"]
15	20Y-06-23770	[8]	CLIP Komatsu	0.01 kg.
			["SN: 80001-@"]
16	20Y-54-36981	[1]	PACKING Komatsu China
			["SN: 80001-@"]
17	20Y-06-23790	[1]	CAP Komatsu China
			["SN: 80001-@"]
18	20Y-979-2170	[1]	GRILLE Komatsu	0.1 kg.
			["SN: 80001-@"]
19	20Y-06-23810	[1]	STAY Komatsu China
			["SN: 80001-@"]
21	20Y-06-23431	[1]	SWITCH,BUZZER STOP Komatsu	0.03 kg.
			["SN: 80001-@"]
22	20Y-06-23441	[1]	SWITCH,SWING LOCK Komatsu	0.04 kg.
			["SN: 80001-@"]
23	20Y-06-23950	[1]	SWITCH,WIPER Komatsu	0.05 kg.
			["SN: 80001-@"]
24	20Y-06-23421	[1]	SWITCH,LIGHT Komatsu	0.03 kg.
			["SN: 80001-@"]
25	08086-20000	[1]	SWITCH Komatsu China	0.35 kg.
			["SN: 80001-@"] analogs:["20Y0624680", "22B0611910", "0808610000", "885081070", "0808510000", "0808600000", "20Y0624681", "2010621510"]
26	20Y-06-23471	[1]	LIGHTER Komatsu China
			["SN: 80001-@"]
27	20Y-06-23820	[1]	HOLDER Komatsu China
			["SN: 80001-@"]
29	20Y-06-23211	[1]	PANEL Komatsu China
			["SN: 80001-@"]
30	20Y-979-2471	[1]	PANEL ASS'Y,AIR CONDITIONER Komatsu China
			["SN: 80001-@"]
31	20Y-06-21471	[1]	HARNESS ASS'Y Komatsu	0.374 kg.
			["SN: 80001-@"] analogs:["20Y0621470"]
32	08034-20519	[2]	BAND Komatsu	0.001 kg.
			["SN: 80001-@"] analogs:["2260611130", "885180010"]
34	20Y-06-23840	[1]	CAP Komatsu China
			["SN: 80001-@"]
36	7825-30-1301	[1]	DIAL Komatsu OEM	0.104 kg.
			["SN: 80001-@"] analogs:["7825301302"]
37	01252-40410	[2]	BOLT Komatsu China
			["SN: 80001-@"]
38	01601-20410	[2]	WASHER Komatsu	0.002 kg.
			["SN: 80001-@"]
