21N9-10023 21N910023 Wiring Harness HYUNDAI Excavator Engine Electric Parts For R320LC-7
- 21N9-10023 21N910023 Wiring Harness HYUNDAI Excavator Engine Electric Parts For R320LC-7
- Specifiion
| Name | Wiring Harness |
| Parts No | 21N9-10023 21N910023 |
| Machine Model | R320LC-7 |
| Category | Engine Electric |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Core description
It is a pre-assembled electrical cable bundle that serves as the central nervous system for the engine's electrical system in a Hyundai excavator. It connects critical engine components such as the ECU (Engine Control Unit), sensors, actuators, and ignition systems, transmitting both power and signals to ensure proper engine operation.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R320LC7 Hyundai
- More other harness parts fit for HYUNDAI machine
| 21EA-00190 HARNESS-EXT,START RY |
| H80, HL730-7, HL730TM7, HL740-7, HL740TM-7, HL757-7, HL757TM7, HL760-7, HL770-7, HX330L, R1200-9, R130W3, R140LC-7, R140W7, R170W3, R180LC3, R200NLC3, R200W3, R300LC9S, R305LC7, R320LC7, R320LC7A, R32... |
| ZGBH-00174 HARNESS-WIRING |
| R110-7, R110-7A, R140LC-7, R140W7, R160LC7, R170W7A, R180LC7, R180LC7A, R200W7, R210LC7, R210LC7A, R210LC7H, R210NLC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC... |
| 21N4-43010 HARNESS-EXTENSION |
| R110-7A, R140LC-7, R140LC-7A, R140W7, R160LC7, R160LC7A, R170W7, R180LC7, R180LC7A, R200W7, R210LC7, R210LC7A, R210LC7H, R210NLC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320... |
| 11N8-94250 HARNESS-P/HEATER |
| R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W3, R200W7, R200W7A, R210LC7, R210LC7A, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7A, R305LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R450LC7, R450LC7... |
| 21N8-11151 HARNESS-CONSOLE,RH |
| R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7A, R320LC7, R320LC7A, R360LC7A, R450LC7, R450LC7A, R500LC7, R500LC7A, R80-7, RC215C7, RC215C7H |
| 21N4-02810 HARNESS-CONSOLE,RH |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7A, R3... |
| 21N8-11181 HARNESS-SIDE,RH |
| R140LC-7, R160LC7, R180LC7, R210LC7, R210NLC7, R250LC7, R290LC7, R320LC7, R320LC7A, R450LC7, R500LC7, R80-7, RD80-7 |
| 21N4-47800 HARNESS-EXT(LAMP) |
| R140LC-7, R140LC-7A, R160LC7, R160LC7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210NLC7A, R250LC7, R250LC7A, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7A, R370LC7... |
| 21N9-10022 HARNESS-ENGINE |
| R320LC7 |
| 21NA-11170 HARNESS-PUMP PS |
| R320LC7, R320LC7A, R360LC7, R360LC7A |
| 21N9-10019 HARNESS-FRAME |
| R320LC7 |
| 21N9-13010 HARNESS-FRAME |
| R320LC7 |
| 21N9-10022 HARNESS-ENGINE |
| R320LC7 |
| 21N9-10021 HARNESS-ENGINE |
| R320LC7 |

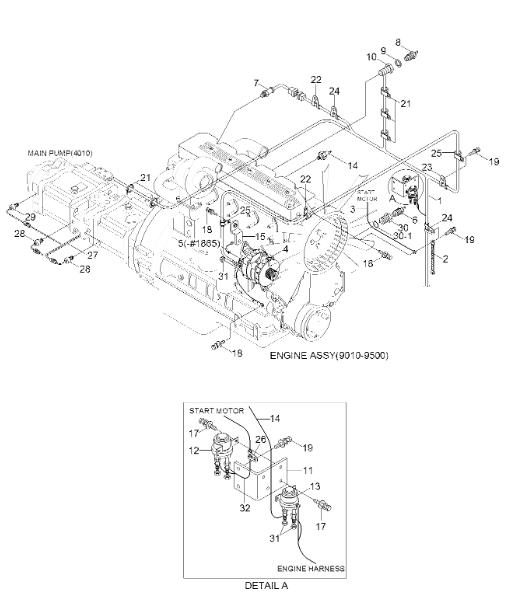

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21N9-10021 | [1] | HARNESS-ENGINE | |
| 1 | 21N9-10022 | [1] | HARNESS-ENGINE | |
| 1 | 21N9-10023 | [1] | HARNESS-ENGINE | |
| 1 | 21N9-10024 | [1] | HARNESS-ENGINE | |
| 1-1. | 21LH-30130 | [1] | RESISTOR | NOT SHOWN |
| 2 | 21EH-30720 | [1] | STRAP-EARTH | |
| 3 | 21N9-20020 | [1] | CABLE(FRAME-S/MOTOR) | |
| N4. | 21E6-40030 | [1] | ALTERNATOR ASSY | |
| 4 | 21Q6-41000-K | [1] | ALTERNATOR KIT | |
| 4-1. | 21Q6-41000 | [1] | ALTERNATOR ASSY | NOT SHOWN |
| 4-2. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 4 | 21Q6-41000 | [1] | ALTERNATOR ASSY | |
| 4 | 21Q6-42001 | [1] | ALTERNATOR ASSY | |
| 4-1. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 5 | 21E1-21120 | [1] | WIRE LINK-ALTERNATOR | |
| 6 | 21E3-5001 | [1] | SWITCH-ENG OIL PRESS | |
| 7 | 21E3-0042 | [1] | SENSOR-SPEED | |
| 7 | 21Q6-15800 | [1] | SENSOR-SPEED | |
| 8 | 21EN-40100 | [1] | SENDER-TEMP | |
| 9 | 21EA-50171 | [1] | FITTING-TEMP SW | |
| 10 | 21EA-50260 | [1] | PACKING-TEMP SW | |
| 11 | 21N9-20052 | [1] | BRAKCET-RELAY | |
| 12 | 21N6-30120 | [1] | RELAY-START | |
| 13 | E225-0006 | [1] | RELAY-HEATER | |
| 14 | 21N9-20030 | [1] | CABLE-HEATER | |
| 15 | 21EA-00170 | [1] | PLATE | |
| 17 | S035-061522 | [4] | BOLT-W/WASHER | |
| 18 | S035-081522 | [3] | BOLT-W/WASHER | |
| 19 | S037-101552 | [6] | BOLT-W/WASHER | |
| 20 | 21L8-10360 | [1] | CABLE(ALT-EARTH) | |
| 21 | S552-050203 | [8] | CLAMP-BAND | |
| 22 | S593-000702 | [2] | CLIP-HARNESS | |
| 22 | S593-000802 | [2] | CLIP-HARNESS | |
| 23 | S593-001302 | [1] | CLIP-HARNESS | |
| 24 | S593-001702 | [6] | CLIP-HARNESS | |
| 25 | S543-100002 | [2] | CLAMP-TUBE | |
| 27 | 21NA-11170 | [1] | HARNESS-PUMP PS | |
| 28 | 21EG-32200 | [2] | SENDER-PRESSURE | OPTION |
| 29 | 21EG-32210 | [1] | SENDER-PRESSURE | OPTION |
| 30 | 21L7-00611 | [1] | ADAPTER | |
| 30-1. | 21EN-00520 | [1] | O-RING | |
| 31 | S203-061002 | [2] | NUT-HEX | |
| 32 | 21EA-00190 | [1] | HARNESS-EXT,START RY | |
| 33 | S037-122052 | [2] | BOLT-W/WASHER | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
