141-10-34222 141-10-34221 141-10-34220 Boot KOMATSU Bulldozer Spare Parts For D50A-17

Name: 141-10-34222 141-10-34221 141-10-34220 Boot KOMATSU Bulldozer Spare Parts For D50A-17
Brand: Guangzhou Anto Machinery Parts Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 PCS

Delivery Time: 3-7 working days

Brand: OEM

Product Description

141-10-34222 141-10-34221 141-10-34220 Boot KOMATSU Bulldozer Spare Parts For D50A-17

Specifiion

Name	Boot
Parts No	141-10-34222 141-10-34221 141-10-34220
Machine Model	D50A D50P D50PL D60A D60E D60F D60P D60PL D70 D70LE
egory	Main Clutch Booster
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

Compatible models

BULLDOZERS D50A D50P D50PL D60A D60E D60F D60P D60PL D70 D70LE
CRAWLER LOADERS D60S
OTHER BF60 Komatsu

More other boot parts fit for KOMATSU machine

131-14-42720 BOOT

D50A, D50P, D50PL, D50S

4908533M1 BOOT

35D, D500E

198-43-61590 BOOT

D475A, D475ASD

23C-27-62190 Boot

GD755

3EA-64-32511 BOOT

FD15, FD18, FG10, FG15H, FG18, FG18H

3EA-64-31410 BOOT

FD15, FD18, FG10, FG15H, FG18, FG18H

14X-54-12980 BOOT,(D65E)

D60P, D65E, D65EX, D65P, D65PX

14X-54-12970 BOOT,(D60) (D65EX) (D65P¤PX)

D60P, D65E, D65EX, D65P, D65PX, D85E, D85ESS

150-65-14460 BOOT

D60E, D65A, D65E, D80A, D85A

141-10-34220 BOOT

D60A, D60P, D60PL, D60S

J97A1003 BOOT(L.H)

SOLAR

J97A1002 BOOT(R.H)

SOLAR

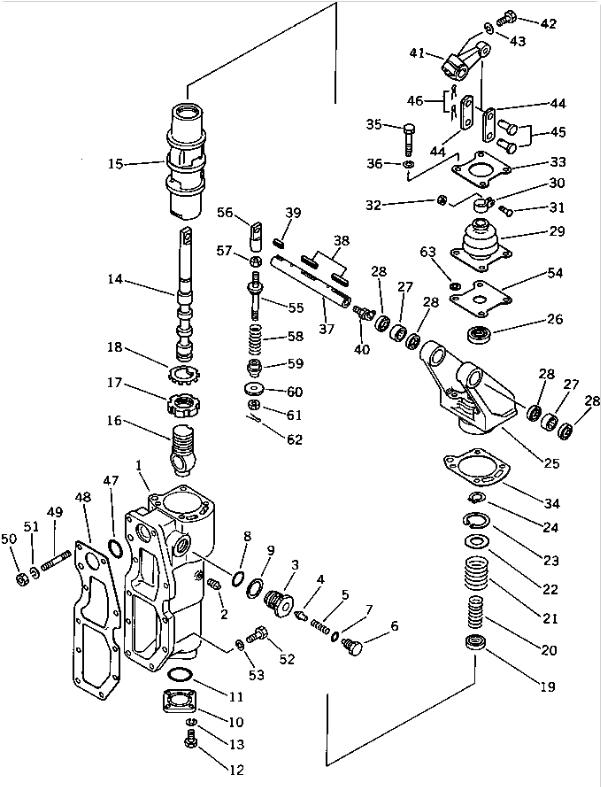

alog parts list

Pos.	Part No	Qty	Parts name	Comments
	130-10-00310	[1]	BOOSTER ASS'Y Komatsu China
			["SN: 80001-UP"] analogs:["1301000311"] \|$0.
1.	141-10-34112	[1]	HOUSING Komatsu China
			["SN: 80001-UP"]
2.	07042-00108	[1]	PLUG,TAPER Komatsu	0.007 kg.
			["SN: 80001-UP"] analogs:["0704210108"]
	141-10-00553	[1]	RELIEF VALVE ASS'Y Komatsu China
			["SN: 80001-UP"] \|$3.
3	130-10-74140	[1]	SEAL,VALVE Komatsu China
			["SN: 80001-UP"]
4	141-10-34260	[1]	VALVE,NEEDLE Komatsu OEM	0.013 kg.
			["SN: 80001-UP"]
5	130-10-74150	[1]	SPRING Komatsu China
			["SN: 80001-UP"]
6	141-10-34271	[1]	PLUG Komatsu China
			["SN: 80001-UP"]
7	07000-02014	[1]	O-RING Komatsu China	0.01 kg.
			["SN: 80001-UP"] analogs:["0700012014"]
8	170-10-15330	[1]	O-RING Komatsu OEM	0.02 kg.
			["SN: 80001-UP"]
9	170-10-91130	[1]	PACKING Komatsu	0.01 kg.
			["SN: 80001-UP"]
10.	141-10-34320	[1]	COVER Komatsu China
			["SN: 80001-UP"]
11.	07000-03040	[1]	O-RING Komatsu China	0.002 kg.
			["SN: 80001-UP"] analogs:["0700013040", "0700003040E", "YM24311000400"]
12.	01010-30820	[4]	BOLT Komatsu	0.013 kg.
			["SN: 80001-UP"] analogs:["01010E0820"]
13.	01602-00825	[4]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 80001-UP"] analogs:["0160220825", "0231011020", "6124613790"]
14.	144-10-11330	[1]	VALVE Komatsu China
			["SN: 80001-UP"]
15.	144-10-11340	[1]	PISTON Komatsu China
			["SN: 80001-UP"]
16.	170-10-15190	[1]	COUPLING Komatsu China
			["SN: 80001-UP"]
17.	01530-03912	[1]	NUT Komatsu	0.105 kg.
			["SN: 80001-UP"] analogs:["0153013912"]
18.	170-10-15211	[1]	WASHER,LOCK Komatsu China
			["SN: 80001-UP"]
19.	170-10-15281	[1]	SPACER Komatsu	0.03 kg.
			["SN: 80001-UP"]
20.	144-10-11360	[1]	SPRING Komatsu China
			["SN: 80001-UP"]
21.	131-10-25160	[1]	SPRING Komatsu China
			["SN: 80001-UP"]
22.	170-10-15290	[1]	WASHER Komatsu China
			["SN: 80001-UP"]
23.	170-10-15231	[1]	RING,SNAP Komatsu China
			["SN: 80001-UP"]
24.	170-10-15251	[1]	RING,SNAP Komatsu OEM	0.2 kg.
			["SN: 80001-UP"]
25.	141-10-34133	[1]	BRACKET Komatsu China
			["SN: 80001-UP"]
26.	07017-00022	[1]	SEAL,OIL Komatsu	0.025 kg.
			["SN: 80001-UP"]
27.	06120-02216	[2]	BEARING,NEEDLE Komatsu	0.024 kg.
			["SN: 80001-UP"]
28.	06122-02204	[4]	SEAL,BEARING Komatsu	0.008 kg.
			["SN: 80001-UP"]
29.	141-10-34222	[1]	BOOT Komatsu China
			["SN: 80001-UP"] analogs:["1411034221", "1411034220"]
30.	150-14-15260	[1]	CLAMP Komatsu	0.013 kg.
			["SN: 80001-UP"]
31.	01220-40416	[1]	SCREW Komatsu	0.005 kg.
			["SN: 80001-UP"] analogs:["0121040416"]
32.	01580-00403	[1]	NUT Komatsu	0.002 kg.
			["SN: 80001-UP"]
33.	141-10-34230	[1]	PLATE Komatsu China
			["SN: 80001-UP"]
34.	141-10-34151	[1]	GASKET Komatsu China
			["SN: 82250-UP"] analogs:["1411034150"]
34.	141-10-34150	[1]	GASKET Komatsu China
			["SN: 80001-82249"] analogs:["1411034151"]
35.	01010-31055	[4]	BOLT Komatsu	0.078 kg.
			["SN: 80001-UP"] analogs:["01010E1055", "0101061055"]
36.	01602-01030	[4]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 80001-UP"] analogs:["0160211030"]
37.	141-10-35113	[1]	SHAFT Komatsu China
			["SN: 80001-UP"]
38.	04000-00538	[2]	KEY,FEATHER Komatsu China
			["SN: 80001-UP"]
39.	04000-00522	[1]	KEY,FEATHER Komatsu China
			["SN: 80001-UP"] analogs:["D40F447"]
40.	07020-00675	[1]	FITTING,GREASE Komatsu China	0.011 kg.
			["SN: 80001-UP"] analogs:["21D0989220", "37A099G004"]
41.	141-10-35123	[1]	LEVER Komatsu China
			["SN: 80001-UP"]
42.	01010-30825	[1]	BOLT Komatsu	0.015 kg.
			["SN: 80001-UP"] analogs:["01010E0825"]
44.	141-10-34170	[2]	LINK Komatsu China
			["SN: 80001-UP"]
45.	170-10-15370	[2]	PIN Komatsu	0.037 kg.
			["SN: 80001-UP"] analogs:["0420501230"]
46.	04050-03020	[2]	PIN,COTTER Komatsu	0.001 kg.
			["SN: 80001-UP"]
47.	170-10-15130	[1]	O-RING Komatsu China
			["SN: 80001-UP"]
48.	141-10-34121	[1]	GASKET Komatsu	0.046 kg.
			["SN: 82250-UP"] analogs:["1411034120"]
48.	141-10-34120	[1]	GASKET Komatsu	0.046 kg.
			["SN: 80001-82249"]
49.	01140-31050	[3]	STUD Komatsu	0.042 kg.
			["SN: 80001-UP"]
50.	01582-01008	[3]	NUT Komatsu	0.01 kg.
			["SN: 80001-UP"] analogs:["801750002", "0158211008"]
52.	01010-31030	[7]	BOLT Komatsu China	0.03 kg.
			["SN: 80001-UP"] analogs:["01010E1030"]
54	141-10-34310	[1]	PLATE Komatsu China
			["SN: 80001-UP"]
55	141-10-33230	[1]	ROD Komatsu China
			["SN: 80001-UP"]
55.	141-10-13240	[1]	GUIDE,SPRING, UPPER (WELDED) Komatsu China
			["SN: 80001-UP"]
56	141-10-33240	[1]	JOINT Komatsu China
			["SN: 80001-UP"]
58	141-10-33251	[1]	SPRING Komatsu China
			["SN: 80001-UP"]
59	141-10-33261	[1]	GUIDE,SPRING, LOWER Komatsu China
			["SN: 80001-UP"] analogs:["1411033260"]
60	141-10-33270	[1]	WASHER Komatsu China
			["SN: 80001-UP"]
61	01593-01008	[1]	NUT Komatsu	0.01 kg.
			["SN: 80001-UP"] analogs:["0159331008", "0159311008"]
62	04050-02018	[1]	PIN,COTTER Komatsu	0.001 kg.
			["SN: 80001-UP"] analogs:["0405012018"]
63	01640-21016	[4]	WASHER Komatsu	0.177 kg.
			["SN: 80001-UP"] analogs:["0164001016", "0164221016", "0164201016"]

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
