7N-0110 2P-8797 Oil Cooler Core Truck Engine Parts Fitting For E330B 3306
- 7N-0110 2P-8797 Oil Cooler Core Truck Engine Parts Fitting For E330B 3306
- Specifiion
| Name | Oil Cooler Core |
| Parts No | 7N-0110 2P-8797 |
| Machine Model | 235C 235D 330 FM L 330 L 330B 350 |
| egory |
Engine Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
ARTICULATED TRUCK D25C D300B D30C D350C D35C
CHALLENGER 65 65C
EXCAVATOR 235C 235D 330 FM L 330 L 330B 350
GAS ENGINE G3304 G3304B G3306 G3306B
GEN SET ENGINE 3304 3304B 3306 3306B
GENERATOR SET G3306
INDUSTRIAL ENGINE 3304 3306 3306B
LANDFILL COMPACTOR 816B
LOAD HAUL DUMP R1300
MARINE ENGINE 3304 3304B 3306 3306B
MOTOR GRADER 143H 14H NA 160H ES 160H NA 163H NA
TRACK LOADER 973 973C
TRACK-TYPE TRACTOR D6D D7F D7G D7H D7R
TRUCK ENGINE 1673C 3306 3306B 3306C
WHEEL LOADER 966F II 966G 970F 972G
WHEEL SCRAPER 627B 627E 637E 639D
WHEEL TRACTOR 627B 627E 627F er.pillar
- More other core parts fit for C A T machine
| 6N9848 CORE ASSEM. |
| 571G, 572G, 615, D10, D7G |
| 1139536 CORE ASSEM. |
| D6R, D7R |
| 6F3930 CORE-VALVE |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 2P6830 CORE ASSEM. |
| 627, 627B, D25C, D25D, D30C, D350C, D350E, D35C, D35HP, D400, D400E, D40D |
| 4P0897 CORE AS-RADIATOR |
| 814F, 815F, 816F, 966F, 966F II, 970F, 980F, 980F II |
| 7E7760 CORE AS-OIL COOLER |
| 814F, 815F, 816F, 966F, 966F II, 970F |
| 4P6508 CORE AS-RADIATOR |
| 970F, 980F |
| 1551216 CORE AS |
| 966F, 966F II, 966G, 972G |
| 2W7933 CORE AS-OIL COOLER |
| 16G, 814B, 815B, 816B, 966D |
| 2190018 CORE AS-CONDENSER |
| 12H ES, 12H NA, 140H ES, 140H NA, 14H NA, 160H ES, 160H NA, 16H NA |
| 7Y1363 CORE AS-OIL COOLER |
| 330, 330 FM L, 330 L |
| 1241762 CORE AS-RADIATOR |
| 330B, 330B L |
| 7N0165 CORE AS-OIL COOLER |
| 120G, 12G, 12H, 12H ES, 12H NA, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 215, 215B, 235, 235B, 3304, 3304B, 3306, 3306B, 515, 517, 518C, 525, 527, ... |
| 1116815 CORE AS-CONDENSER |
| 416B, 426B, 428B, 436B, 438B |
| 1196254 CORE AS-OIL COOLER |
| 416B, 426B, 428B, 436B, 438B |
| 7W5903 CORE AS-OIL COOLER |
| 214B, 3116, 3126, 325, 950F, 950F II, 960F, 963B, CP-563, CS-531C, CS-533C, CS-563C, CS-573C, CS-583C |
| 2663275 CORE ASSEMBLY-A/C CONDENSER |
| 938H, IT38H |
| 2661495 CORE ASSEMBLY-RADIATOR |
| 938H, IT38H |
| 1313077 CORE AS-RADIATOR |
| 3304, 3306 |

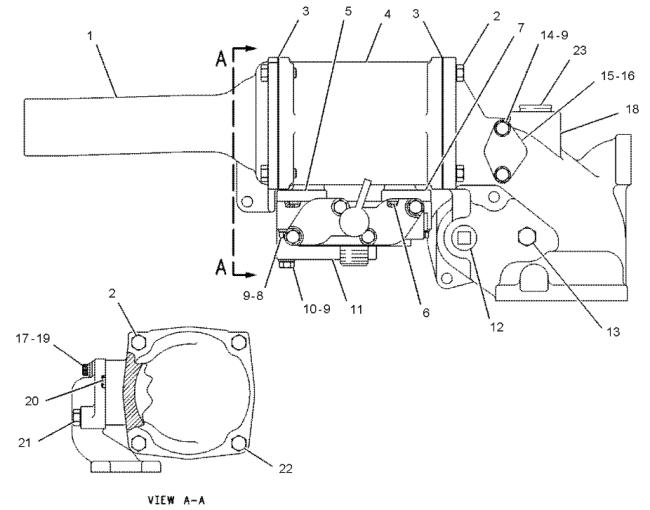

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2P-8870 | [1] | PIPE-PUMP OUTLET | |
| 2 | 1A-2029 | [7] | BOLT (3/8-16X1.125-IN) | |
| 3 | 8S-5409 | [2] | GASKET | |
| 4 | 7N-0110 | [1] | CORE AS-ENGINE OIL COOLER | |
| 5 | 2P-7732 | [1] | ELBOW | |
| 6 | 5P-8118 | [2] | SEAL-O-RING | |
| 7 | 2P-7734 | [1] | ELBOW-OUTLET | |
| 8 | 1H-5514 | [3] | BOLT (5/16-18X1.625-IN) | |
| 9 | 9M-1974 | [6] | WASHER-HARD (8.8X16X2-MM THK) | |
| 10 | 1D-4540 | [1] | BOLT (5/16-18X2.75-IN) | |
| 11 | 8N-4457 Y | [1] | BASE GP-OIL FILTER | |
| 12 | 7X-7731 | [1] | PLUG-PIPE (3/4-14-THD) | |
| 13 | 8T-6767 | [1] | PLUG-PIPE (3/8-18-THD) | |
| 14 | 0S-1617 | [2] | BOLT (5/16-18X0.75-IN) | |
| 15 | 4N-3840 | [1] | COVER | |
| 16 | 4N-3841 | [1] | GASKET | |
| 17 | 5M-2894 | [2] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 18 | 4N-8842 | [1] | BONNET-OIL COOLER | |
| 19 | 1T-0765 | [2] | BOLT (3/8-16X1-IN) | |
| 20 | 3P-1155 | [2] | SEAL-O-RING | |
| 21 | 0S-1591 | [2] | BOLT (3/8-16X1.5-IN) | |
| 22 | 1A-2029 B | [1] | BOLT (3/8-16X1.125-IN) | |
| 23 | 8T-6761 | [1] | PLUG-PIPE (1-11-1/2 NPT THD) | |
| B | USE AS REQUIRED | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
