• 3092396 Expansion Plug Excavator Engine Parts Fitting For HYUNDAI R1200-9

• Specifiion

• Appliion

9-SERIES CRAWLER EXCAVATOR R1200-9

• More plug parts Applied To HYUNDAI machine

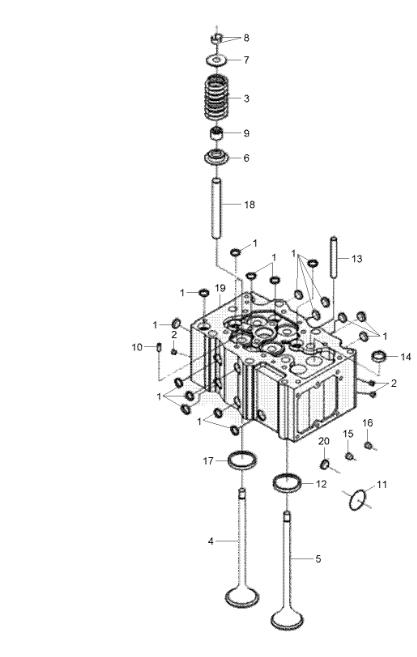

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
N*.	4096555	[6]	HEAD-CYLINDER(TLA)	PP50010
1	3092396	[17]	PLUG-EXPANSION
2	3093827	[3]	PLUG-PIPE
3	3639621	[4]	SPRING-VALVE
N4.	4007179	[2]	VALVE-INTAKE
N5.	4007180	[2]	VALVE-EXHAUST
6	4007182	[4]	PLATE-VLV SPRING WEAR
7	4007183	[4]	RETAINER-VALVE SPRING
8	4007184	[8]	RETAINER-VALVE SPRING
9	4007185	[4]	SEAL-VALVE STEM
N*-1.	4096556	[1]	HEAD-CYLINDER
1	3092396	[17]	PLUG-EXPANSION
10	3093784	[2]	PIN-DOWEL
11	3093817	[2]	SEAL-O/RING
2	3093827	[3]	PLUG-PIPE
12	4006184	[2]	INSERT-VALVE
13	4006186	[2]	GUIDE-VALVE CROSSHEAD
14	4095439	[2]	SLEEVE
15	4095905	[1]	PLUG-PIPE
16	4095909	[3]	PLUG-PIPE
17	4095988	[2]	INSERT-VALVE
N18.	4096488	[4]	GUIDE-VALVE STEM
N19.	4096557	[1]	HEAD-CYLINDER
20	4096558	[6]	PLUG-EXPANSION
1	3092396	[96]	PLUG-EXPANSION
10	3093784	[12]	PIN-DOWEL
15	4095905	[6]	PLUG-PIPE
16	4095909	[18]	PLUG-PIPE
N.	@	[AR]	NOT SUPPLIED PARTS



• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
