39Q4-42290 39Q442290 Sun Gear Excavator Swing Gear Fitting For HYUNDAI R125LCR-9A R140LC9
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 39Q4-42290 39Q442290 Sun Gear Excavator Swing Gear Fitting For HYUNDAI R125LCR-9A R140LC9
- Specifiion
| spare parts name | Sun gear |
| Equipment Model | R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A RB140LC9S RD140LC9 |
| Parts egory | HYUNDAI Excavator Swing Gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
9-SERIES CRAWLER EXCAVATOR R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A RB140LC9S RD140LC9
F-SERIES CRAWLER EXCAVATOR HX140L
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| 39Q4-42220 GEAR-SUN 2 |
| HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| 39Q4-42250 GEAR-PLANETARY 1 |
| HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| ZUAC-00707 GEAR-CRANKSHAFT |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| ZUAC-00375 GEAR-INJECTION PUMP |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| ZUAC-00517 GEAR-IDLER |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| ZUAC-00521 GEAR-CAMSHAFT |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| XKAQ-00810 GEAR-PLANET 2 |
| HW140, HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| XKAQ-00815 GEAR-PLANET 1 |
| HW140, HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |

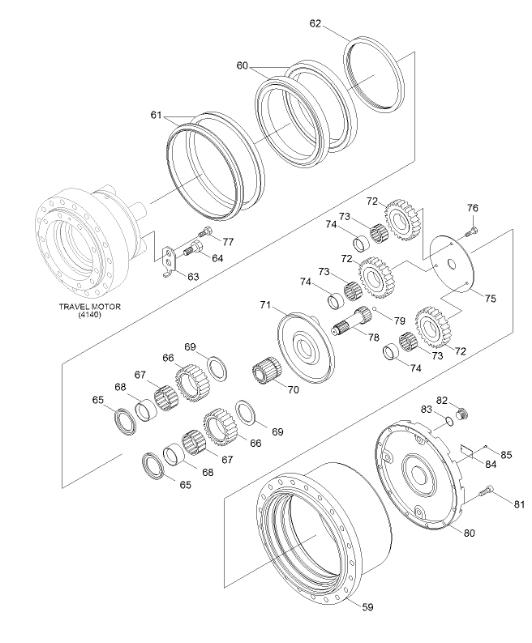

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4140 |
| N*-2. | 39Q4-42102 | [1] | T/REDUCTION GEAR | |
| 59 | 39Q4-42110 | [1] | GEAR-RING | |
| 60 | 39Q4-42120 | [2] | BEARING-ANG.BALL | |
| 61 | 39Q4-42130 | [2] | SEAL ASSY-FLOATING | |
| 62 | 39Q4-42140 | [1] | RING-NUT | |
| 63 | 39Q4-42150 | [1] | LOCK PLATE | |
| 64 | S017-100166 | [9] | BOLT-HEX | |
| 65 | 39Q4-42170 | [4] | PLATE-THRUST 2 | |
| 66 | 39Q4-42180 | [4] | GEAR-PLANETARY 2 | |
| 67 | 39Q4-42190 | [4] | BEARING-NEELDLE 2 | |
| 68 | 39Q4-42200 | [4] | RACE-INNER 2 | |
| 69 | 39Q4-42210 | [4] | WASHER-THRUST 2 | |
| 70 | 39Q4-42220 | [1] | GEAR-SUN 2 | |
| K71. | 39Q4-42240 | [1] | CARRIER 1 | |
| K72. | 39Q4-42250 | [3] | GEAR-PLANETARY 1 | |
| K73. | 39Q4-42260 | [3] | BEARING-NEEDLE 1 | |
| K74. | 39Q4-42270 | [3] | RACE-INNER 1 | |
| K75. | 39Q4-42280 | [1] | PLATE-THRUST 1 | |
| K76. | S017-080166 | [3] | BOLT-HEX | |
| 77 | S017-080106 | [1] | BOLT-HEX | |
| 78 | 39Q4-42290 | [1] | GEAR-SUN 1 | |
| 79 | 39Q4-42300 | [1] | BALL-STEEL | |
| 80 | 39Q4-42310 | [1] | COVER | |
| 81 | S109-100256 | [12] | BOLT-SOCKET | |
| 82 | P220-110203 | [3] | PLUG-HEX | |
| K83. | S631-014001 | [3] | O-RING | SEE 4140 |
| 84 | 39Q3-42320 | [1] | NAME PLATE | |
| 85 | 39Q6-41800 | [2] | RIVET | |
| K. | 39Q4-42230 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
- Advantage
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
