39Q8-12110 39Q812110 Gear Ring Excavator Swing Gear Fitting For HYUNDAI R290LC9 R290LC9MH
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 39Q8-12110 39Q812110 Gear Ring Excavator Swing Gear Fitting For HYUNDAI R290LC9 R290LC9MH
- Specifiion
| spare parts name | Gear ring |
| Equipment Model | R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH |
| Parts egory | HYUNDAI Excavator Swing Gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
7-SERIES CRAWLER EXCAVATOR R290LC7A
9-SERIES CRAWLER EXCAVATOR R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH
F-SERIES CRAWLER EXCAVATOR HX300L HX330L
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| 39Q4-42220 GEAR-SUN 2 |
| HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| 39Q4-42250 GEAR-PLANETARY 1 |
| HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| ZUAC-00707 GEAR-CRANKSHAFT |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| ZUAC-00375 GEAR-INJECTION PUMP |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| ZUAC-00517 GEAR-IDLER |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| ZUAC-00521 GEAR-CAMSHAFT |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| XKAQ-00810 GEAR-PLANET 2 |
| HW140, HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| XKAQ-00815 GEAR-PLANET 1 |
| HW140, HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |

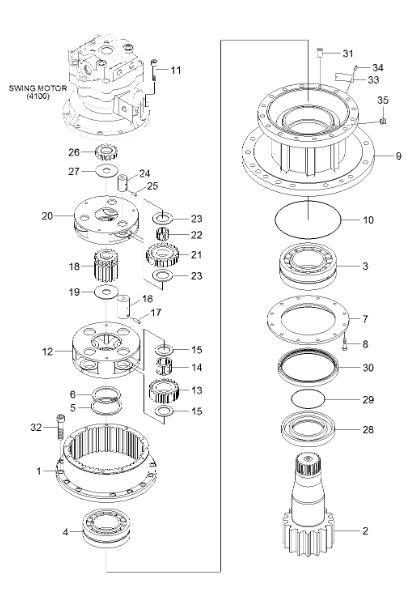

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 39Q8-12101 | [1] | SWING REDUCTION GEAR | SEE 4100 |
| 1 | 39Q8-12110 | [1] | GEAR RING | |
| 2 | 39Q8-12120 | [1] | SHAFT-DRIVE | |
| 3 | 39Q8-12130 | [1] | BEARING-SPH.ROLLER | MAIN |
| 4 | 39Q8-12140 | [1] | BEARING-SPH.ROLLER | SUB |
| 5 | 39Q8-12150 | [1] | PLATE-THRUST | |
| 6 | 39Q8-12160 | [1] | RING-SNAP | |
| 7 | 39Q8-12170 | [1] | COVER | |
| 8 | S017-120306 | [12] | BOLT-HEX | |
| 9 | 39Q8-12180 | [1] | CASING | |
| 10 | S632-290001 | [1] | O-RING | |
| 11 | S109-100306 | [12] | BOLT-SOCKET | |
| K12. | 39Q8-12201 | [1] | CARRIER NO.2 | |
| K13. | 39Q8-12211 | [4] | GEAR-PLANETARY NO.2 | |
| K14. | 39Q8-12220 | [4] | BEARING-NEEDLE NO.2 | |
| K15. | 39Q8-12231 | [8] | WASHER-THRUST NO.2 | |
| K16. | 39Q8-12240 | [4] | PIN-CARRIER NO.2 | |
| K17. | S472-910404 | [4] | PIN-SPRING | |
| K18. | 39Q8-12251 | [1] | GEAR-SUN NO.2 | |
| K19. | 39Q8-12261 | [1] | PLATE-THRUST NO.2 | |
| K20. | 39Q8-12281 | [1] | CARRIER NO.1 | |
| K21. | 39Q8-12291 | [3] | GEAR-PLANETARY NO.1 | |
| K22. | 39Q8-12300 | [3] | BEARING-NEEDLE NO.1 | |
| K23. | 39Q8-12311 | [6] | WASHER-THRUST NO.1 | |
| K24. | 39Q8-12320 | [3] | PIN-CARRIER NO.1 | |
| K25. | S472-800404 | [3] | PIN-SPRING NO.1 | |
| K26. | 39Q8-12331 | [1] | GEAR-SUN NO.1 | |
| K27. | 39Q8-12341 | [1] | PLATE-THRUST NO.1 | |
| 28 | 39Q8-12350 | [1] | SLEEVE | |
| 29 | S632-140001 | [1] | O-RING | |
| 30 | 39Q6-12350 | [1] | SEAL-OIL | |
| 31 | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 32 | S109-18050D | [14] | BOLT-SOCKET | |
| 33 | 39Q8-12361 | [1] | NAME PLATE | |
| 34 | 39Q6-41800 | [2] | RIVET | |
| 35 | P220-430204 | [1] | PLUG-HEX | |
| K. | 39Q8-12270 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K. | 39Q8-12190 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
- Advantage
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
