1G777-03020 1G777-03023 Cylinder Head ASS'Y KOBOTA Excavator Spare Parts For KX080-3MC
- 1G777-03020 1G777-03023 Cylinder Head ASS'Y KOBOTA Excavator Spare Parts For KX080-3MC
- Specifiion
| Name | Cylinder Head ASS'Y |
| Parts No | 1G777-03020 1G777-03023 |
| Machine Model | KX080-3MC |
| Category | Inlert Valve And Exhaust Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Key functions
|
Combustion Chamber Formation: Forms the upper portion of the combustion chamber, working with the piston and cylinder liner to contain the air-fuel mixture and combustion pressure. |
|
Valvetrain Housing: Encloses and supports the intake and exhaust valves, valve springs, valve guides, and camshaft(s) (in an overhead cam design). |
|
Cooling & Lubrication: Contains integrated water jackets for engine coolant circulation and oil passages for lubrication of the valvetrain. |
|
Sealing: Provides a tight seal between the engine block and the cylinder head via a head gasket, preventing coolant, oil, and combustion gas leaks. |
- Compatible models
EXCAVATOR(KH / KX / K / U SERIES) KX080
M Series M7040F Kubota
- More other cylinder head parts fit for KOBOTA machine
| 15831-43353 ASSY CERIMANTER |
| KX121, KX161, KX61, KX91, M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC, R420, R520 |
| 1C010-52033 ASSY PUMP,FUEL |
| M108SDC, M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC, M7040SUD, M7040SUHD, M8200DTN, M8200SDTN, M8540DCN, M8540DH, M8540DHC, M8540DN, M9000DTM, M9000DTMC, M9540DH, M9540DHC |
| 1C010-52034 ASSY PUMP,FUEL |
| M108SDC, M6040DH, M6040DHC, M7040DH, M7040F, M7040SUHD, M8540DH, M9540DH |
| 1G524-63010 ASSY STARTER |
| KX080 |
| 1G772-60014 ASSY SOLENOID |
| KX057, KX080, M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC, M7040SUD, M7040SUHD, R065, SVL75, SVL75C, U48, U55 |
| 1G772-63010 ASSY STARTER |
| M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC, M7040SUD, M7040SUHD |
| 1G772-73032 ASSY PUMP,WATER |
| KX080, M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC, M7040SUD, M7040SUHD, SSV75, SSV75PC(S, SVL75, SVL75C |
| 1G777-50802 ASSY HOUSING,I/P |
| KX080, M7040F |
| 33770-96290 ASSY SWITCH,PRESSURE |
| B3150HDCC, KX080, L4330HST(C), L5030HST(C), M100GXDTC, M108SDC, M110GXDTC, M126GXDTC, M135GXDTC, M135GXDTSC, M4900DT, M5700DHC, M5700DT, M6040DHC, M6800DHC, M6800S, M6800SDT, M7040DHC, M7040FC, M7131P... |
| 3C001-17100 ASSY RADIATOR |
| M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC, M7040SUD, M7040SUHD |
| 3C581-97590 ASSY COMPRESSOR |
| KX080, M100XDC, M108SDC, M110XDC, M6040DHC, M7040DHC, M7040FC, M8540DCN, M8540DHC, M8540DTNQPC, M9540DHC |
| 59800-26110 ASSY ELEMENT,A/C |
| KJ, KX080, L5240HST, L5240HSTC, L5740HST, L5740HSTC, M6040DH, M6040DHC, M6800DH, M6800DHC, M6800DT, M6800S, M6800SDT, M7040DH, M7040DHC, M7040F, M7040FC, M7040SUD, M7040SUHD, SQ, SSV65, SSV65PC(S, SSV... |
| 1G777-01024 ASSY CRANKCAASE |
| KX080, SVL75, SVL75C |
| 1G777-01020 ASSY CRANKCAASE |
| KX080 |
| 1G776-54103 ASSY BOLT,ADJUSTMENT |
| KX080, M7040F |
| 1G776-54102 ASSY BOLT,ADJUSTMENT |
| KX080, M7040F |
| 1G776-54100 ASSY BOLT,ADJUSTMENT |
| KX080 |
| 1G775-56030 ASSY LEVER,FORK |
| M6040DH, M6040DHC, M7040DH, M7040DHC, M7040F, M7040FC |
| 1G775-50805 ASSY HOUSING IP |
| M6040DH, M6040DHC, M7040DH, M7040DHC, M7040FC, M7040SUD, M7040SUHD |

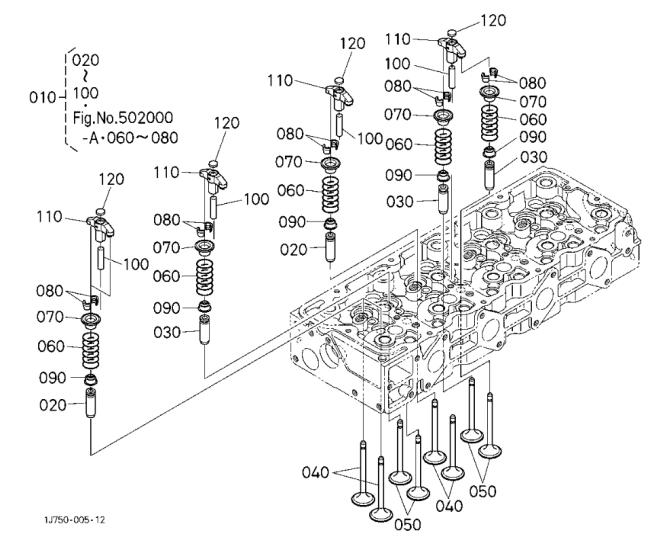

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 10 | 1G777-03020 | [1] | ASSY CYLINDER HEAD | <=AW1563 |
| 10 | 1G777-03022 | [1] | ASSY CYLINDER HEAD | >=AY0001 |
| 20 | 16261-13540 | [8] | GUIDE,INLET VALVE | |
| 30 | 16261-13560 | [8] | GUIDE,EXHAUST VALVE | |
| 40 | 1G772-13110 | [8] | VALVE,INLET | ORDER BY REF.No.040,050,110 NEW PARTS. <=AW1563 |
| 40 | 1G772-13112 | [8] | VALVE,INLET | >=AY0001 |
| 50 | 1G772-13120 | [8] | VALVE,EXHAUST | ORDER BY REF.No.040,050,110 NEW PARTS. <=AW1563 |
| 50 | 1G772-13122 | [8] | VALVE,EXHAUST | >=AY0001 |
| 60 | 1C010-13240 | [16] | SPRING,VALVE | |
| 70 | 16261-13330 | [16] | RETAINER,VALVE SP. | |
| 80 | 15261-13980 | [16] | COLLET(VALVE SPRING) | SET |
| 90 | 1C010-13150 | [16] | SEAL,VALVE STEM | |
| 100 | 1C010-13482 | [8] | SHAFT,VALVE BURIGE | |
| 110 | 1C020-13463 | [8] | ARM,VALVE BURI. | <=AW1563 |
| 110 | 1G772-13460 | [8] | ARM,VALVE BURI. | >=AY0001 |
| 120 | 1C010-13490 | [8] | PAD | <=9U0595 |
| 120 | 1J700-13492 | [8] | PAD | >=9W0001 |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
