VOE11062225 11062225 Thermostat Excavator Spare Parts Fitting For A25D A30D
- VOE11062225 11062225 Thermostat Excavator Spare Parts Fitting For A25D A30D
- Specifiion
| Name | Thermostat |
| Parts No | VOE11062225 11062225 |
| Machine Model | A25F A25F/G A30D A30E A30F A40 |
| Category | Cooling System, Secondary Pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Key features
| Precision temperature control for heavy-duty engines |
| Prevents overheating and cold-start wear |
| Direct replacement part for reliable engine cooling system performance |
- Compatible models
EXCAVATOR A25D A25E A25F A25F/G A30D A30E A30F A30F/G A35D A35F A35F FS A35F/G A35F/G FS A40 A40 BM A40D A40F A40F FS A40F/G A40F/G FS A60H T450D
- More other thermostat parts fit for V O-L V O machine
| VOE470396 Thermostat housing |
| EC450, EC450 ÅKERMAN, EC620 ÅKERMAN, EC650, EC650 ÅKERMAN |
| VOE11031194 Thermostat housing |
| EC450, EC450 ÅKERMAN, EC650, EC650 ÅKERMAN |
| VOE862338 Thermostat Housing |
| EC450, EC450 ÅKERMAN, EC620 ÅKERMAN, EC650, EC650 ÅKERMAN |
| SA3923477 Thermostat |
| Heavy |
| CH96915 Thermostat |
| G700 MODELS, G700B MODELS |
| RM58967555 Thermostat |
| SD100C |
| VOE11706703 Thermostat |
| EC160, EW140, EW160 |
| VOE11997078 Thermostat housing |
| EC130C, EC150C, EW130C, EW150C |
| VOE14268015 Thermostat |
| EC280, EW230B |
| VOE862141 Thermostat housing |
| L330C, L330D, L330E |
| RM80766694 Thermostat |
| DD85, DD95 |
| VOE14546928 Thermostat |
| ECR58, ECR88 |

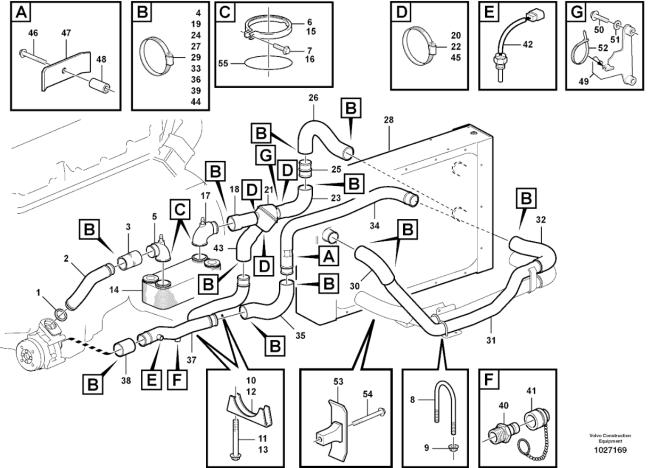

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE11030312 | [1] | Sealing ring | |
| 2 | VOE11121586 | [1] | Pipe | |
| 3 | VOE11112379 | [1] | Radiator hose | |
| 4 | VOE11059298 | [2] | Hose clamp | |
| 5 | VOE16828476 | [1] | Connecting pipe | |
| 6 | VOE1542778 | [1] | V-clamp | |
| 7 | VOE13948356 | [1] | Flange screw | |
| 8 | VOE11062054 | [2] | Brace | S/N - 13827 |
| VOE11193783 | [1] | Clamp | S/N 13828 - | |
| 9 | VOE13945408 | [4] | Nut | S/N - 13827 |
| VOE13965179 | [1] | Screw | S/N 13828 - | |
| 10 | VOE11115150 | [1] | Clamp | |
| 11 | VOE13965180 | [2] | Screw | |
| 12 | VOE11115150 | [1] | Clamp | |
| 13 | VOE13965180 | [2] | Screw | |
| 14 | [1] | Heat Exchanger | ||
| 15 | VOE1542778 | [1] | V-clamp | |
| 16 | VOE13948356 | [1] | Flange screw | |
| 17 | VOE16828476 | [1] | Connecting pipe | |
| 18 | VOE11063800 | [1] | Radiator hose | |
| 19 | VOE11059298 | [1] | Hose clamp | |
| 20 | VOE11059297 | [1] | Hose clamp | |
| 21 | VOE11062225 | [1] | Thermostat | |
| 22 | VOE11059297 | [1] | Hose clamp | |
| 23 | VOE11121590 | [1] | Radiator hose | |
| 24 | VOE11059298 | [1] | Hose clamp | |
| 25 | VOE11121563 | [1] | Pipe | |
| 26 | VOE11191878 | [1] | Radiator hose | |
| 27 | VOE11059298 | [2] | Hose clamp | |
| 28 | [1] | Radiator | ||
| 29 | VOE11059298 | [2] | Hose clamp | |
| 30 | VOE11061686 | [1] | Radiator hose | S/N - 15000 S/N - 72100 |
| VOE11027180 | [1] | Radiator hose | S/N 15001 - S/N 72101 - | |
| 31 | VOE11191794 | [1] | Pipe | S/N - 15000 S/N - 72100 |
| VOE11193710 | [1] | Pipe | S/N 15001 - S/N 72101 - | |
| 32 | VOE4775509 | [1] | Radiator hose | |
| 33 | VOE11059298 | [2] | Hose clamp | |
| 34 | VOE11121587 | [1] | Pipe | S/N - 15753 S/N - 72311 |
| VOE11196780 | [1] | Water pipe | S/N 15754 - S/N 72312 - | |
| 35 | VOE4775509 | [1] | Radiator hose | |
| 36 | VOE11059298 | [2] | Hose clamp | |
| 37 | VOE11191915 | [1] | Pipe | S/N - 15095 S/N - 72128 |
| VOE11195578 | [1] | Water pipe | S/N 15096 - S/N 72129 - | |
| 38 | VOE943372 | [REQ] | Hose | L=80 |
| 39 | VOE11059298 | [2] | Hose clamp | |
| 40 | VOE13946121 | [1] | Nipple | S/N - 13574 |
| VOE11423133 | [1] | Nipple | S/N 13575 - | |
| 41 | VOE11194108 | [1] | Protecting sleeve | |
| 42 | VOE11039193 | [1] | Temperature sensor | SE2601 |
| 43 | VOE11121591 | [1] | Radiator hose | |
| 44 | VOE11059298 | [1] | Hose clamp | |
| 45 | VOE11059297 | [1] | Hose clamp | |
| 46 | VOE13965180 | [1] | Screw | |
| 47 | VOE11112146 | [1] | Cap | S/N - 13827 |
| VOE11193785 | [1] | Clamp | S/N 13828 - | |
| 48 | VOE11062179 | [1] | Spacer ring | S/N - 13827 |
| 49 | VOE11192759 | [1] | Bracket | |
| 50 | VOE13947760 | [2] | Screw | |
| 51 | VOE11055605 | [2] | Plain washer | |
| 52 | VOE4881440 | [0REQ] | Cable tie | |
| 53 | VOE11193784 | [1] | Clamp | |
| 54 | VOE13965181 | [1] | Screw | |
| 55 | VOE11445263 | [4] | O-ring |
