419-46-11230 4194611230 Dust Seal Support For KOMATSU 532 WA300 WA300L WA320 WA320L
- 419-46-11230 4194611230 Dust Seal Support For KOMATSU 532 WA300 WA300L WA320 WA320L
- Specifiion
| egory | KOMATSU Excavator Spare Parts |
| Name | Dust seal |
| Parts No | 419-46-11230 4194611230 |
| Machine Model |
532 WA300 WA300L WA320 WA320L WA320PT WA320PZ |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
WHEEL LOADERS 532 WA300 WA300L WA320 WA320L WA320PT WA320PZ

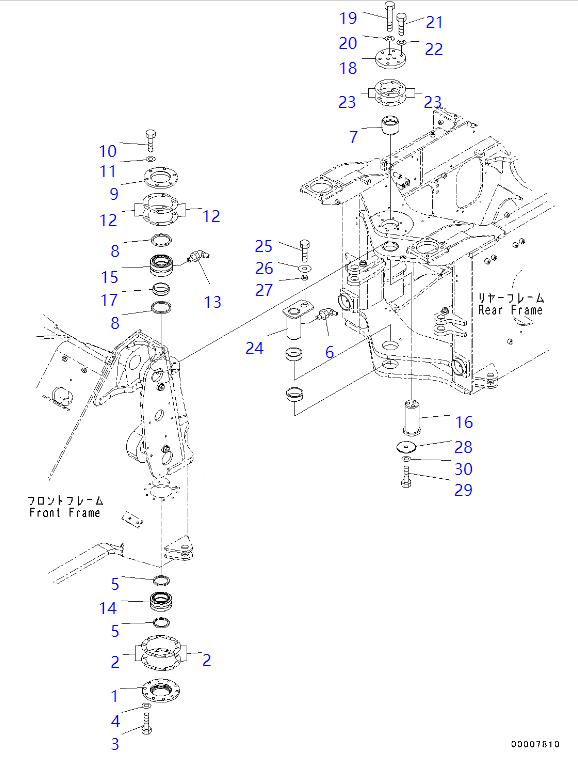

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 419-46-11350 | [1] | Retainer Komatsu China | |
| ["SN: 70291-UP"] | ||||
| 2 | 421-46-11382 | [4] | Shim, T=0.5mm Komatsu | 0.02 kg. |
| ["SN: 71816-UP"] | ||||
| 2 | 421-46-11381 | [4] | Shim, T=0.5mm Komatsu | 0.021 kg. |
| ["SN: 70291-71815", "SCC: A2"] | ||||
| 421-46-11372 | [8] | Shim, T=0.1mm Komatsu | 0.01 kg. | |
| ["SN: 71816-UP"] |$3. | ||||
| 421-46-11371 | [8] | Shim, T=0.1mm Komatsu | 0.005 kg. | |
| ["SN: 70291-71815", "SCC: A2"] |$4. | ||||
| 3 | 01010-81230 | [10] | Bolt Komatsu | 0.043 kg. |
| ["SN: 70291-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 4 | 01643-31232 | [10] | Washer Komatsu | 0.027 kg. |
| ["SN: 70291-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 5 | 419-09-11110 | [2] | Seal, Dust Komatsu | 0.08 kg. |
| ["SN: 70291-UP"] | ||||
| 6 | 07020-00675 | [1] | Fitting, Grease Komatsu China | 0.011 kg. |
| ["SN: 70291-UP"] analogs:["21D0989220", "37A099G004"] | ||||
| 7 | 419-46-11180 | [1] | Spacer Komatsu | 0.973 kg. |
| ["SN: 70291-UP"] | ||||
| 8 | 419-46-11230 | [2] | Seal, Dust Komatsu | 0.044 kg. |
| ["SN: 70291-UP"] | ||||
| 9 | 419-46-11200 | [1] | Retainer Komatsu | 1.62 kg. |
| ["SN: 70291-UP"] | ||||
| 10 | 01010-81235 | [6] | Bolt Komatsu | 0.048 kg. |
| ["SN: 70291-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 12 | 419-46-11250 | [8] | Shim, T=0.1mm Komatsu | 0.004 kg. |
| ["SN: 70291-UP"] | ||||
| 12 | 419-46-11260 | [2] | Shim, T=0.5mm Komatsu | 0.02 kg. |
| ["SN: 70291-UP"] | ||||
| 419-46-11270 | [4] | Shim, T=1.0mm Komatsu | 0.05 kg. | |
| ["SN: 70291-UP"] |$16. | ||||
| 14 | 419-46-11360 | [1] | Bearing Komatsu | 2.001 kg. |
| ["SN: 70291-UP"] | ||||
| 15 | 419-46-11281 | [1] | Bearing Komatsu | 2.7 kg. |
| ["SN: 70291-UP"] | ||||
| 16 | 419-46-23210 | [1] | Shaft Komatsu | 6.1 kg. |
| ["SN: 70291-UP"] | ||||
| 17 | 419-46-11170 | [1] | Spacer Komatsu | 0.45 kg. |
| ["SN: 70291-UP"] | ||||
| 18 | 419-46-33220 | [1] | Cover Komatsu China | |
| ["SN: 70291-UP"] | ||||
| 19 | 01010-61695 | [3] | Bolt Komatsu | 0.181 kg. |
| ["SN: 70291-UP"] analogs:["0101031695", "0101081695"] | ||||
| 20 | 01643-31645 | [3] | Washer Komatsu | 0.072 kg. |
| ["SN: 70291-UP"] analogs:["802170005", "0164301645"] | ||||
| 21 | 01010-81245 | [6] | Bolt Komatsu | 0.056 kg. |
| ["SN: 70291-UP"] analogs:["0101051245", "801015574"] | ||||
| 23 | 419-46-11211 | [8] | Shim, T=0.1mm Komatsu | 0.005 kg. |
| ["SN: 70291-UP"] | ||||
| 23 | 419-46-11221 | [6] | Shim, T=0.5mm Komatsu | 0.02 kg. |
| ["SN: 70291-UP"] | ||||
| 24 | 419-46-41190 | [1] | Pin Komatsu | 6.9 kg. |
| ["SN: 70470-UP"] analogs:["4194611330"] | ||||
| 24 | 419-46-11330 | [1] | Pin Komatsu | 6.9 kg. |
| ["SN: 70291-70469", "SCC: A2"] analogs:["4194641190"] | ||||
| 25 | 01010-81640 | [1] | Bolt Komatsu | 0.264 kg. |
| ["SN: 70291-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"] | ||||
| 26 | 421-70-11280 | [1] | Washer Komatsu | 0.072 kg. |
| ["SN: 70291-UP"] | ||||
| 27 | 419-46-11340 | [1] | Bushing Komatsu | 0.05 kg. |
| ["SN: 70291-UP"] | ||||
| 28 | 419-70-11340 | [1] | Plate Komatsu | 0.35 kg. |
| ["SN: 70291-UP"] | ||||
| 29 | 01010-81630 | [1] | Bolt Komatsu | 0.081 kg. |
| ["SN: 70291-UP"] analogs:["0101061630", "0101051630", "0101031630"] | ||||
- More other seal parts applied to KOMATSU equipment
| 195-40-41590 SEAL,OIL |
| D275A, D375A, D475A, D575A |
| 113-B62-1710 SEAL |
| D31A, D31E, D31P, D31PG, D31PL, D31PLL, D31Q, D31S, D37A, D37E, D37P, D37PG |
| 22M-54-16350 SEAL |
| PC20MR, PC20MRX, PC27MR, PC27MRX, PC28UU, PC30MR, PC30MRX, PC30UU, PC35MR, PC35MRX, PC38UU, PC40MR, PC40MRX, PC45MR, PC45MRX, PC58UU |
| 22U-54-25660 SEAL |
| PC130, PC220, PC240, PC290, PC300, PC350, PC400, PC450, PC88MR, PRESSURE, RAIN |
| 17A-03-12341 SEAL |
| D155A, D155AX |
| 113-C62-2380 SEAL |
| D31A, D31E, D31P, D31PG, D31PL, D31PLL, D31Q, D31S, D37A, D37E, D37P, D37PG |
| 423-22-21750 SEAL |
| GD555, GD655, GD675, WA350, WA380 |
| ND028901-0361 SEAL |
| 6D102E, D41E, D41P, D41PF, D51EX/PX, D61EX, D61PX, GD655, PC200, PC220, PC240, PC290, PW180, PW200, PW220, S6D102E, SA6D102E, SAA4D102E, SAA4D107E, SAA6D102E, SAA6D107E, WA320 |
| 142-862-4170 SEAL |
| D66S |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
