198-4607 1984607 Solenoid Valve Tractor Engine Parts Fitting For 3116 3306 D6M
- 198-4607 1984607 Solenoid Valve Tractor Engine Parts Fitting For 3116 3306 D6M
- Specifiion
| Name | Solenoid Valve |
| Parts No | 198-4607 1984607 |
| Machine Model | D10R D5M D5N D6M |
| egory | Priority Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
PIPELAYER 561N 572R 572R II 583T
TRACK-TYPE TRACTOR D10R D5M D5N D6M D6N D6R D6R II D7R D7R II D8R II D8T D9T C.ater.pillar.
- More other valve parts fit for C A T machine
| 2222367 VALVE GP-ACCUMULATOR CHARGING |
| 120H, 120H ES, 120H NA, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14... |
| 2899231 VALVE-EXHAUST |
| 24M, 365C, 365C L, 365C L MH, 374D L, 374F L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 583T, 587T, 621B, 621G, 623G, 627F, 627G, 631D, 631E, 631G, 637D, 637E, 637G, 651B, 657E, 657G, 735, 735B,... |
| 0057889 VALVE AS-DRAIN |
| 3516B, 5130, 5130B, 5230, 5230B, 657E, 69D, 725, 730, 735, 735B, 740, 740B, 769C, 769D, 770, 770G, 771C, 771D, 772, 772G, 773B, 773D, 773E, 773F, 775B, 775D, 775E, 775F, 776, 776C, 776D, 777, 777B, 77... |
| 2S5925 VALVE |
| 205B, 211B, 215, 215B, 225, 227, 229, 231D, 235, 235C, 235D, 245, 307, 311, 312, 315, 317, 318B, 320 L, 320B, 322 LN, 330 FM L, 330 L, 561B, 561C, 561M, 571G, 572G, 572R, 578, 583K, 594, 594H, 623B, 6... |
| 2S5926 VALVE |
| 1090, 1190, 1190T, 1290T, 1390, 205B, 211B, 215, 215B, 225, 227, 229, 2290, 231D, 235, 235C, 235D, 2390, 2391, 245, 2491, 2590, 307, 307B, 307C, 307D, 307E, 308C, 308D, 308E, 308E CR, 308E SR, 308E2 C... |
| 5P7090 VALVE-BALL |
| 227, 229D, 322C, 325B L, 518, 528, 528B, 530B, 561D, 589, 615, 615C, 621, 621B, 621R, 623E, 627B, 637E, 651E, 657E, 814, 814B, 815, 815B, 910, 931B, 943, 950, 953, 966C, 966D, 966R, 977K, 977L, 980B, ... |
| 1908609 VALVE-FILL |
| 517, 527, 561M, 561N, 572R II, 583R, 583T, 587R, 587T, 589, 623G, 933C, 939C, 973D, D10R, D10T, D10T2, D11R, D11T, D3C III, D3G, D3K XL, D3K2 LGP, D4C III, D4G, D4K XL, D4K2 XL, D5C III, D5G, D5HTSK I... |
| 1349602 VALVE AS-WATER |
| D5M, D5N, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D6R III, D6R STD, D6T, D7G2, D7R, D7R II, D7R XR, D8R II |
| 1074397 VALVE AS |
| 16M, 24M, 5110B, 583T, 587T, 769D, 771D, 773D, 773E, 773F, 775D, 775E, 775F, 776D, 777D, 777F, 785, 785B, 785C, 785D, 789, 789B, 789C, 789D, 793C, 793D, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ |

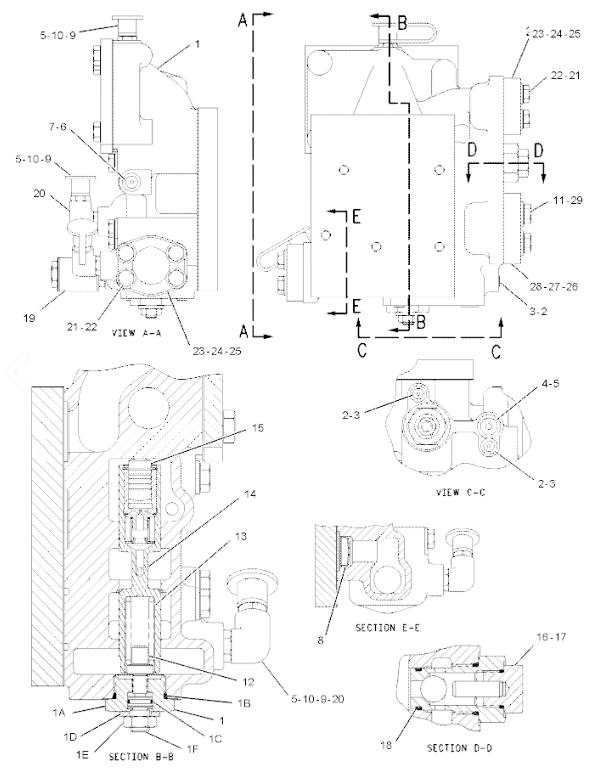

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 108-6523 | [1] | ADJUSTER AS | |
| 1A. | 9U-8069 | [1] | PLUG | |
| 1B. | 7M-8485 | [1] | SEAL-O-RING | |
| 1C. | 4K-2039 | [1] | SEAL-O-RING | |
| 1D. | 8T-4223 | [1] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 1E. | 095-1207 M | [1] | NUT (M12X1.75-THD) | |
| 1F. | 101-9754 | [1] | SCREW-ADJUSTMENT (M12X1.75X18-MM) | |
| 2 | 9S-8001 | [3] | PLUG | |
| 3 | 4J-7533 | [3] | SEAL-O-RING | |
| 4 | 9S-8004 | [1] | PLUG (9/16-18-THD) | |
| 5 | 3J-1907 | [6] | SEAL-O-RING | |
| 6 | 9S-8007 | [1] | PLUG | |
| 7 | 7J-0204 | [1] | SEAL-O-RING | |
| 8 | 119-7833 | [1] | ORIFICE | |
| 9 | 6V-0852 | [3] | CAP-DUST | |
| 10 | 6V-3965 | [3] | FITTING (QUICK DISCONNECT) | |
| 11 | 5P-8245 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 12 | 153-4247 | [1] | STOP | |
| 13 | 150-7938 | [1] | SPRING | |
| 14 | 173-2472 | [1] | SPOOL AS | |
| 9M-4313 | [1] | POPPET | ||
| 8M-2537 | [1] | RETAINER | ||
| 173-0887 | [1] | RING-RETAINING | ||
| 5M-9548 | [1] | SPRING | ||
| 15 | 5S-7816 | [1] | SLUG | |
| 16 | 9U-8076 | [1] | VALVE AS-CHECK | |
| 2M-9780 | [1] | SEAL-O-RING | ||
| 4B-9786 | [1] | BALL | ||
| 17 | 4K-1388 | [1] | SEAL-O-RING | |
| 18 | 4M-8303 | [1] | SEAL-O-RING | |
| 19 | 198-4607 Y | [1] | VALVE GP-SOLENOID | |
| 20 | 6V-0484 | [2] | ELBOW | |
| 21 | 6V-3822 M | [8] | BOLT (M10X1.5X35-MM) | |
| 22 | 6V-5839 | [8] | WASHER (11X21X2.5-MM THK) | |
| 23 | 8C-3206 | [4] | FLANGE-HALF | |
| 24 | 5H-4019 | [2] | COVER | |
| 25 | 4J-0520 | [2] | SEAL-O-RING | |
| 26 | 6V-0397 | [2] | FLANGE-HALF | |
| 27 | 5H-4020 | [1] | COVER | |
| 28 | 4J-0522 | [1] | SEAL-O-RING | |
| 29 | 6V-8197 M | [4] | BOLT (M12X1.75X40-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
