421-23-32470 4212332470 Shim Excavator Spare Parts Fitting For KOMATSU WA380 WA380Z
- 421-23-32470 4212332470 Shim Excavator Spare Parts Fitting For KOMATSU WA380 WA380Z
- Specifiion
| egory | KOMATSU Excavator Spare Parts |
| Name | Shim |
| Parts No | 421-23-32470 4212332470 |
| Machine Model |
WA380 WA380Z WA400 WA430 WA450 WA470 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
WHEEL LOADERS WA380 WA380Z WA400 WA430 WA450 WA470

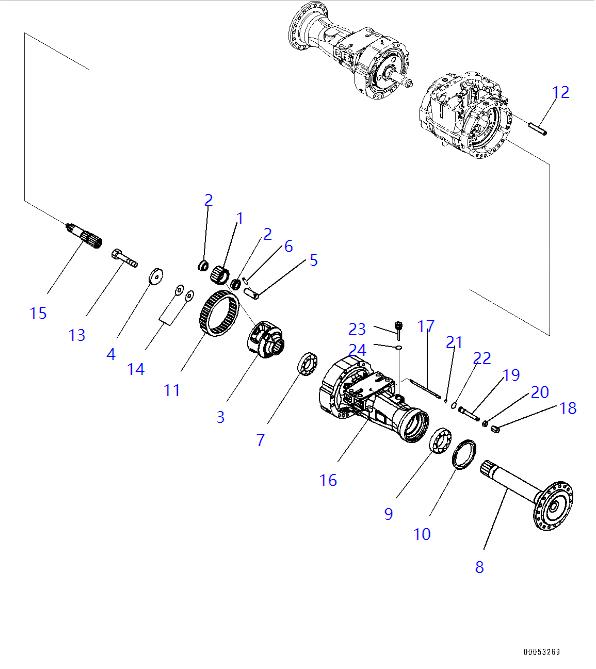

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 423-22-30061 | [1] | Axle Assembly Komatsu | 892 kg. | |
| ["SN: 65949-UP"] |$0. | ||||
| 423-22-32020 | [1] | Final Drive Assembly Komatsu China | ||
| ["SN: 65949-UP"] analogs:["R4232232020"] |$1. | ||||
| 1 | 423-22-32630 | [3] | Gear Komatsu | 3.8 kg. |
| ["SN: 65949-UP"] | ||||
| 2 | 423-22-22810 | [6] | Bearing Komatsu | 0.515 kg. |
| ["SN: 65949-UP"] | ||||
| 3 | 423-22-32662 | [1] | Carrier Komatsu | 28.8 kg. |
| ["SN: 65949-UP"] analogs:["4232232660", "4232232661"] | ||||
| 4 | 421-23-32352 | [1] | Washer Komatsu | 1.7 kg. |
| ["SN: 65949-UP"] | ||||
| 5 | 423-22-22510 | [3] | Shaft Komatsu | 11.7 kg. |
| ["SN: 65949-UP"] | ||||
| 6 | 419-22-12570 | [3] | Pin Komatsu | 0.009 kg. |
| ["SN: 65949-UP"] | ||||
| 7 | 423-22-32870 | [1] | Bearing Komatsu | 2.53 kg. |
| ["SN: 65949-UP"] | ||||
| 8 | 423-22-32471 | [1] | Shaft Komatsu | 226 kg. |
| ["SN: 66395-UP"] analogs:["4232232470"] | ||||
| 8 | 423-22-32470 | [1] | Shaft Komatsu | 226 kg. |
| ["SN: 65949-66394"] | ||||
| 9 | 423-22-22850 | [1] | Bearing Komatsu OEM | 3.38 kg. |
| ["SN: 65949-UP"] | ||||
| 10 | 423-22-22461 | [1] | Seal Komatsu OEM | 0.506 kg. |
| ["SN: 65949-UP"] analogs:["4232222460"] | ||||
| 11 | 423-22-32543 | [1] | Gear, Ring Komatsu | 13.3 kg. |
| ["SN: 65949-UP"] analogs:["4232232542"] | ||||
| 12 | 419-22-12581 | [4] | Pin, Dowel Komatsu | 0.062 kg. |
| ["SN: 65949-UP"] | ||||
| 13 | 01011-62210 | [1] | Bolt Komatsu | 0.406 kg. |
| ["SN: 65949-UP"] analogs:["0101132210", "0101152210", "0101182210"] | ||||
| 14 | 421-23-32470 | [3] | Shim, T=0.05mm Komatsu | 0.01 kg. |
| ["SN: 66522-UP"] | ||||
| 14 | 421-23-32480 | [2] | Shim, T=0.2mm Komatsu | 0.01 kg. |
| ["SN: 65949-UP"] | ||||
| 14 | 421-23-32490 | [3] | Shim, T=0.5mm Komatsu | 0.02 kg. |
| ["SN: 66522-UP"] | ||||
| 15 | 423-22-32421 | [1] | Shaft Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 16 | 423-22-33521 | [1] | Housing Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 17 | 421-33-31711 | [1] | Shaft Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 18 | 421-33-31730 | [1] | Cap Komatsu | 0.07 kg. |
| ["SN: 65949-UP"] | ||||
| 19 | 421-33-31721 | [1] | Guide Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 20 | 01583-11610 | [1] | Nut Komatsu | 0.028 kg. |
| ["SN: 65949-UP"] analogs:["0158301610"] | ||||
| 21 | 07000-11005 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65949-UP"] analogs:["0700001005"] | ||||
| 22 | 07000-12018 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 65949-UP"] analogs:["KB9511301800", "YM24311000180", "0700002018", "2083811590"] | ||||
| 23 | 423-22-33250 | [1] | Plug Komatsu | 7.2 kg. |
| ["SN: 65949-UP"] | ||||
| 24 | 07002-13634 | [1] | O-ring Komatsu China | 0.013 kg. |
| ["SN: 65949-UP"] analogs:["0700203634"] | ||||
- More other shim parts applied to KOMATSU equipment
| 421-22-12170 SHIM¤ 0.2MM |
| 542, 545, HM350, HM400, WA420, WA470 |
| 421-22-12180 SHIM¤ 0.5MM |
| 542, 545, HM350, HM400, WA420, WA470 |
| 421-22-12190 SHIM¤ 1.0MM |
| 542, 545, HM350, HM400, WA420, WA470 |
| 154-15-23490 SHIM¤ 1.0MM |
| D85A, D95S |
| 154-15-23480 SHIM¤ 1.0MM |
| D85A, D95S |
| 154-15-23470 SHIM¤ 0.2MM |
| D85A, D95S |
| 145-60-12390 SHIM¤ 0.5MM,CONTROL VALVE |
| D30S, D50S, D55S, D75S |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
