2082771170 208-27-71170 Carrier Support For KOMATSU PC270LL PC300 PC300HD PC300LL

• 2082771170 208-27-71170 Carrier Support For KOMATSU PC270LL PC300 PC300HD PC300LL

• ​Specifiion

• Compatible models

EXCAVATORS PC270LL PC300 PC300HD PC300LL PC350HD PC350LL PC390 PC390LL PC400 PC450 PC490 PC550

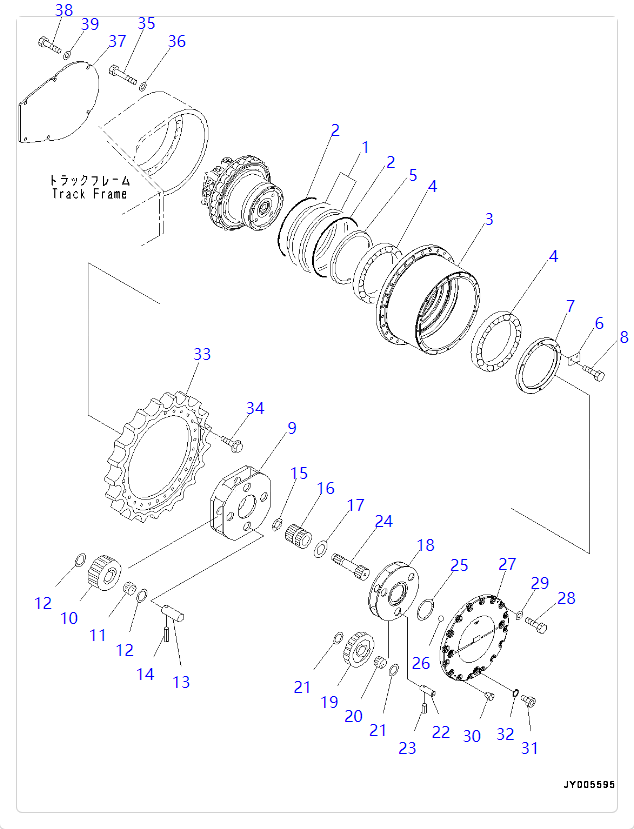

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
	208-27-00311	[2]	Final Drive Assembly Komatsu	750 kg.
			["SN: 70724-70787"] analogs:["2082700242", "2082700241", "2082700240", "2082700243", "2082700312"] |$0.
	208-27-00243	[2]	Final Drive Assembly Komatsu	750 kg.
			["SN: 70001-70723", "SCC: A2"] analogs:["2082700242", "2082700241", "2082700240", "2082700312", "2082700311"] |$1.
	208-27-00210	[1]	Seal Ring Assembly Komatsu OEM	3.46 kg.
			["SN: 70001-@"] |$2.
2	425-33-11650	[2]	O-ring Komatsu	0.18 kg.
			["SN: 70001-@"]
3.	208-27-71151	[1]	Gear Komatsu OEM	260 kg.
			["SN: 70001-@"] analogs:["2082771150"]
4.	208-27-71210	[2]	Bearing Komatsu OEM	9.44 kg.
			["SN: 70001-@"]
5.	208-27-71310	[1]	Collar Komatsu	2.26 kg.
			["SN: 70001-@"]
6.	208-27-71270	[1]	Lock Komatsu	0.05 kg.
			["SN: 70001-@"]
7.	208-27-71260	[1]	Lock Komatsu	7.17 kg.
			["SN: 70001-@"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 70001-@"] analogs:["801014093", "0101051020", "801015108"]
9.	208-27-71170	[1]	Carrier Komatsu OEM	55 kg.
			["SN: 70001-@"]
10.	208-27-71140	[4]	Gear Komatsu OEM	11.85 kg.
			["SN: 70001-@"]
11.	208-27-71230	[4]	Bearing Komatsu OEM	0.64 kg.
			["SN: 70001-@"]
12.	21M-27-11260	[8]	Washer, Thrust Komatsu OEM	0.24 kg.
			["SN: 70001-@"]
13.	208-27-71250	[4]	Pin Komatsu OEM	2.16 kg.
			["SN: 70001-@"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 70001-@"]
15.	207-27-52270	[1]	Spacer Komatsu OEM	0.089 kg.
			["SN: 70001-@"]
16.	208-27-71130	[1]	Gear Komatsu OEM	4.1 kg.
			["SN: 70001-@"]
17.	208-27-71290	[1]	Spacer Komatsu OEM	0.4 kg.
			["SN: 70001-@"]
18.	208-27-71160	[1]	Carrier Komatsu OEM	15.4 kg.
			["SN: 70001-@"]
19.	208-27-71120	[3]	Gear Komatsu OEM	15.3 kg.
			["SN: 70001-@"]
20.	208-27-71220	[3]	Bearing Komatsu OEM	0.22 kg.
			["SN: 70001-@"]
21.	20Y-27-21250	[6]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 70001-@"]
22.	21M-27-11240	[3]	Pin Komatsu OEM	1.17 kg.
			["SN: 70001-@"]
23.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 70001-@"]
24.	208-27-71112	[1]	Shaft Komatsu OEM	2.7 kg.
			["SN: 70001-@"] analogs:["2082771111"]
25.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 70001-@"] analogs:["2052771570"]
26.	04260-01905	[1]	Ball Komatsu OEM	0.029 kg.
			["SN: 70001-@"]
27.	208-27-71183	[1]	Cover Komatsu	43 kg.
			["SN: 70001-70723"] analogs:["2082771182"]
28.	01010-81235	[16]	Bolt Komatsu	0.048 kg.
			["SN: 70001-@"] analogs:["0101051235", "01010E1235", "801015136"]
29.	01643-31232	[16]	Washer Komatsu	0.027 kg.
			["SN: 70001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
30.	07049-01215	[2]	Plug Komatsu	0.001 kg.
			["SN: 70001-@"]
31.	20Y-27-31190	[3]	Plug Komatsu	0.07 kg.
			["SN: 70001-@"]
32.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 70001-@"] analogs:["0700202434", "0700213434"]
33.	208-27-61210	[1]	Sprocket Komatsu China	60 kg.
			["SN: 70001-@"]
34.	207-27-51311	[26]	Bolt Komatsu China	0.222 kg.
			["SN: 70001-@"] analogs:["2072751310", "20727K1120", "20727K1130"]
35	01011-82000	[48]	Bolt Komatsu	0.31 kg.
			["SN: 70001-@"] analogs:["0101162000", "801015657"]
36	01643-32060	[48]	Washer Komatsu China	0.044 kg.
			["SN: 70001-@"] analogs:["802170007", "0164322045", "0164302045"]
37	208-30-71241	[2]	Cover Komatsu	25.81 kg.
			["SN: 70001-@"]
38	01010-81640	[12]	Bolt Komatsu	0.264 kg.
			["SN: 70001-@"] analogs:["0101061640", "801015186", "0101031640", "0101051640"]
39	01643-31645	[12]	Washer Komatsu	0.072 kg.
			["SN: 70001-@"] analogs:["802170005", "0164301645"]
