3D-8513 3D8513 Thrust Washer Truck Spare Parts Fitting For 3412E 773D 775D
- 3D-8513 3D8513 Thrust Washer Truck Spare Parts Fitting For 3412E 773D 775D
- Specifiion
| Name | Thrust Washer |
| Parts No | 3D-8513 3D8513 |
| Machine Model | 773F 775E 777B 777D 777F 777G 785 785B |
| Category | Differential GP |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Location
| Final drive assemblies |
| Differential and axle systems |
| Shaft and gear assemblies where axial thrust occurs |
- Compatible models
QUARRY TRUCK 775B 775D
TRACTOR 772 772B 776C 776D 784B
TRUCK 773 773B 773D 773E 773F 773G 773G LRC 773G OEM 775D 775E 775F 775G 775G LRC 775G OEM 777 777B 777D 777F 777G 785 785B
WHEEL TRACTOR 641 641B 650B 651 651E 657 657B 657E 657G 666 C.ater.pillar.
- More other washer parts fit for C A T machine
| 2673506 WASHER-HARD |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 24M, 621H, 621K, 627H, 627K, 627K LRC, ... |
| 3J2688 WASHER |
| 641B, 776C, 777, 777B, 777D, 777F, 777G |
| 3J4632 WASHER |
| 631C, 633C, 633D, 637, 651 |
| 8D3901 WASHER |
| 768B, 769, 769C, 773B, 834B, 836, 988B |
| 6G9697 WASHER |
| 785, 785B, 785C, 785D, 789, 789B, 789C, 789D, 793, 793B, 793C, 793D, 793F, 793F AC, 793F CMD, 793F-XQ |
| 8X8414 WASHER |
| 776C, 776D, 777, 777B, 777D, 777F, 777G, 784B, 784C, 785B, 785C, 785D, 789B, 789C, 789D |
| 9D3432 WASHER-THRUST |
| 776, 776C, 776D, 777, 777B, 777D, 777F, 777G |
| 8X7650 WASHER |
| 24H, 773B, 773D, 773E, 775B, 775D, 775E |
| 9M1608 WASHER |
| 69D, 768B, 768C, 769, 769C, 769D, 770, 771C, 771D, 772, 773, 773B, 773D, 773E, 773F, 773G, 773G LRC, 773G OEM, 775B, 775D, 775E, 775F, 775G, 775G LRC, 775G OEM, AD40, AD45, AD45B, AD55, AD55B, AD60, A... |
| 7D7488 WASHER-THRUST |
| 69D, 769, 769C, 769D, 770, 770G, 770G OEM, 771C, 771D, 772, 772B, 772G, 772G OEM, 773, 773B, 773D, 773E, 773F, 773G, 773G LRC, 775B, 775D, 775E, 775F, 775G, 775G LRC, AD30, AD40, AD45, AD45B, AD55, AD... |
| 2820882 WASHER-HARD |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16H NA, 777F, 777G |
| 8D3899 WASHER |
| 772, 773B |
| 6D2658 WASHER |
| 631C, 631E, 631G, 633C, 633E II, 637, 637D, 637E, 637G, 641B, 650B, 651E, 657B, 657E, 657G |
| 6D8514 WASHER |
| 631C, 631E, 631G, 633C, 633E II, 637, 637D, 637E, 637G, 641B, 650B, 651E, 657B, 657E, 657G |
| 6G3976 WASHER-THRUST |
| 651E, 657E |
| 5G2531 WASHER-THRUST |
| 910 |
| 6K9468 WASHER-THRUST |
| 518, 910, 930, 930R, IT12 |
| 7V7796 WASHER |
| 518, 910, 930, 930R, IT12 |
| 5J8776 WASHER-THRUST |
| 641, 641B, 651E, 657, 657B, 657E, 657G |
| 6G6845 WASHER-THRUST |
| 651E, 657E, 657G |
| 1U0146 WASHER |
| 651E, 657E, 657G |
| 6G7437 WASHER |
| 631E, 633E II, 637E, 651E, 657E |
| 9D2373 WASHER |
| 641B, 650B, 651E, 657B, 657E, 657G, 666, 777, 785, 789 |
| 6H0463 WASHER |
| 641B, 651E, 657B |

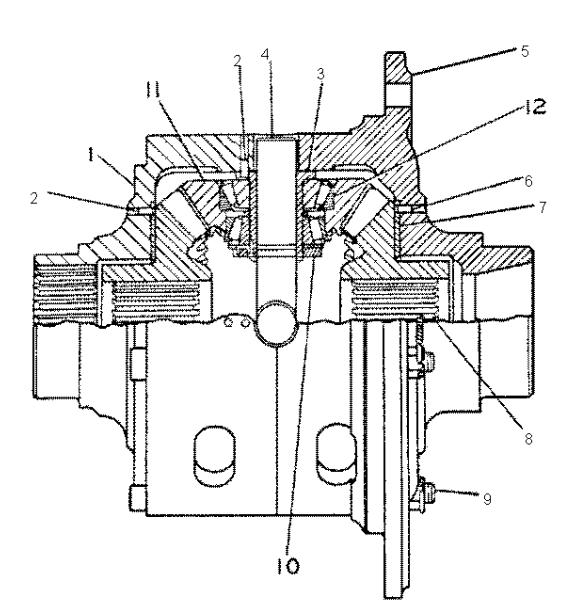

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6G-7472 | [1] | HOUSING AS-DIFFERENTIAL | |
| 2 | 3D-6509 | [6] | DOWEL | |
| 3 | 4D-7541 | [4] | RETAINER | |
| 4 | 5T-9437 | [1] | SPIDER-DIFFERENTIAL | |
| 5 | 8X-7790 C | [1] | HOUSING AS-DIFFERENTIAL | |
| 6 | 3D-6509 | [2] | DOWEL | |
| 7 | 3D-8513 | [2] | WASHER-THRUST (4.59X8.56X0.146-IN THK) | |
| 8 | 8W-9150 | [2] | GEAR-DIFFERENTIAL BEVEL (24-TEETH) | |
| 9 | 6G-5483 | [8] | BOLT (3/4-16X10.5-IN) | |
| 2K-0337 | [8] | LOCKNUT (3/4-16-THD) | ||
| 5P-8248 | [8] | WASHER-HARD (20X36.5X3.5-MM THK) | ||
| 10 | 107-2958 | [4] | NUT (2-1/8-12-THD) | |
| 4D-7536 | [4] | LOCKNUT | ||
| 11 | 8W-9151 | [4] | PINION-DIFFERENTIAL (19-TEETH) | |
| 12 | 4D-7534 | [4] | BEARING AS-ROLLER | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
