2D-6506 2D6506 O-Ring Seal Wheel Loader Spare Parts Fitting For 3516 994K
- 2D-6506 2D6506 O-Ring Seal Wheel Loader Spare Parts Fitting For 3516 994K
- Specifiion
| Name | O-Ring Seal |
| Parts No | 2D-6506 2D6506 |
| Machine Model | 990K 992 992C 992D 992G 992K 994 994D |
| egory | Wheel & Final Drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
TRACK-TYPE TRACTOR D6H D6H XL D6H XR D6R D6R II D6R III D6R STD D6T D6T LGP D6T LGPPAT D6T XL D7H D7R D7R II D7R XR D8N D8R D8R II D8T
TRACTOR 776C 776D
TRUCK 773G 773G LRC 773G OEM 775G 775G LRC 775G OEM 777 777D 777F 777G 793 793B 793C 793D 793F 793F CMD 793F OEM 793F XQ 797 797B 797F
WHEEL DOZER 834 844 844H 844K 854G 854K
WHEEL LOADER 990 990 II 990H 990K 992 992C 992D 992G 992K 994 994D 994F 994H
WHEEL SCRAPER 623E 623F 627B 627E 627G 637 637B 637D 637E 637G
WHEEL TRACTOR 621B 621E 621F 621G 623G 627B 627E 627F 627G 631C 631E 631G 633C 633E II 637D 637E 637G C.ater.pillar.
- More other seal parts fit for C A T machine
| 8J9449 SEAL-RING |
| 777, 777B, 777D |
| 8J9450 SEAL-RING |
| 777, 777B, 777D |
| 8J9916 SEAL-RING |
| 777, 777B, 777D |
| 8J9933 SEAL-RING |
| 777, 777B, 777D |
| 3232197 SEAL-U-CUP |
| 776D, 777D, 777F |
| 2434572 SEAL-O-RING |
| 776D, 777D, 777F, 777G |
| 5P4342 SEAL-O-RING |
| 528, 528B, 530B, 773F, 773G, 773G LRC, 773G OEM, 775F, 775G, 775G LRC, 775G OEM, 777F, 777G |
| 7Y0640 SEAL-O-RING |
| 365B, 365B II, 365C, 365C L, 375, 375 L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5080, 5090B, 773F, 773G, 773G LRC, 773G OEM, 775F, 775G, 775G LRC, 775G OEM, 777F, 777G |
| 3654920 SEAL GP-DUO-CONE |
| 773F, 773G, 773G LRC, 773G OEM, 775F, 775G, 775G LRC, 775G OEM, 777F, 777G, AD55, AD55B, AD60 |
| 2892957 SEAL-LIP TYPE |
| 777F |
| 9J5570 SEAL |
| 777D, 777F |
| 1757894 SEAL-O-RING |
| 777F |
| 1251008 SEAL |
| 631E |
| 1502633 SEAL |
| 631E, 631G, 637E, 637G, 657G |
| 1410749 SEAL-O-RING |
| 5110B, 5130, 5130B, 5230, 5230B, 631E, 631G, 637E, 637G |
| 1458473 SEAL-RING |
| 631E, 631G, 637E, 637G |
| 2478683 SEAL-SHAFT |
| 631E, 631G, 633E II, 637E, 637G, D9T |
| 1697442 SEAL-O-RING |
| 12H, 140H, 14H, 16H, 621G, 623G, 627G, 631E, 631G, 637E, 637G, 725, 730, 735, 735B, 740, 740B, CP-533E, CP-54B, CS-533E, CS-54, CS-54B, CS-64B, D250E II, D300E II, D350E II, D400E II |
| 8R9207 SEAL |
| 950F, 950F II, 950G, 950G II, 950H, 950K, 960F, 962G, 962G II, 962H, 962K, IT62G, IT62G II, IT62H, R1300, R1300G, R1300G II |
| 1111576 SEAL-U-CUP |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 960F, 962G, IT62G |
| 0951753 SEAL-O-RING |
| 633E II, CB-214B, E110, E240 |
| 8E8341 SEAL GP-DUO-CONE |
| 633E |
| 8I2347 SEAL |
| 633E |
| 1871979 SEAL-O-RING |
| 554, 564, 574, 574B, 651E, 657E, 657G, 928HZ, 930G |

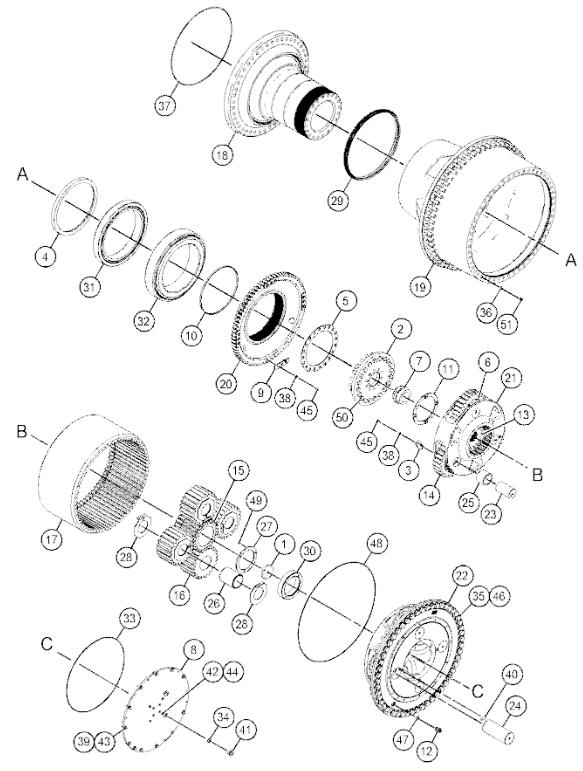

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 439-9014 | [1] | BEARING-THRUST | |
| 2 | 8R-6931 | [1] | RETAINER | |
| 3 | 8R-6932 | [3] | RETAINER | |
| 4 | 8R-6942 | [1] | SPACER | |
| 5 | 8R-6947 | [1] | SHIM PACK (INCLUDES 13-SHIMS) | |
| 6 | 6W-1140 | [6] | WASHER-THRUST | |
| 7 | 363-0638 | [1] | BEARING | |
| 8 | 439-9012 | [1] | COVER | |
| 9 | 101-9445 | [4] | RETAINER | |
| 10 | 137-8629 | [1] | RING | |
| 11 | 139-7652 | [1] | WASHER-THRUST | |
| 12 | 173-0566 | [1] | DRAIN AS | |
| 13 | 417-1921 | [1] | GEAR-SUN | |
| 14 | 417-1922 | [3] | GEAR-PLANETARY | |
| 15 | 417-1923 | [1] | GEAR-SUN | |
| 16 | 417-1924 | [4] | GEAR-PLANETARY | |
| 17 | 417-1925 | [1] | GEAR-RING | |
| 18 | 419-6350 | [1] | SPINDLE | |
| 19 | 419-6352 | [1] | WHEEL AS | |
| 255-4523 | [60] | STUD | ||
| 419-6351 | [1] | WHEEL | ||
| 20 | 419-6353 | [1] | HUB-REACTION | |
| 21 | 419-6354 | [1] | CARRIER-PLANETARY | |
| 22 | 419-6355 | [1] | CARRIER-PLANETARY | |
| 23 | 419-6356 | [3] | SHAFT | |
| 24 | 419-6357 | [4] | SHAFT | |
| 25 | 419-6358 | [3] | BUSHING | |
| 26 | 419-6359 | [4] | BUSHING | |
| 27 | 419-6361 | [1] | BEARING-THRUST | |
| 28 | 419-6363 | [8] | WASHER-THRUST | |
| 29 | 433-1348 | [1] | SEAL GP-DUO-CONE | |
| 30 | 439-9013 | [1] | SPACER | |
| 31 | 196-7795 | [1] | BEARING AS-TAPERED ROLLER | |
| 32 | 201-7718 | [1] | BEARING AS-TAPERED ROLLER | |
| 33 | 2D-6506 | [1] | SEAL-O-RING | |
| 34 | 2S-4078 | [2] | SEAL-O-RING | |
| 35 | 9X-8399 | [51] | WASHER (33X56X6-MM THK) | |
| 36 | 3D-2824 | [1] | SEAL-O-RING | |
| 37 | 430-4008 | [1] | SEAL-O-RING | |
| 38 | 5P-8245 | [24] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 39 | 5P-8247 | [13] | WASHER-HARD (17X32X3.5-MM THK) | |
| 40 | 6K-8987 | [4] | DOWEL | |
| 41 | 6V-0439 | [2] | PLUG-MAGNETIC | |
| 42 | 6V-3822 M | [8] | BOLT (M10X1.5X35-MM) | |
| 43 | 6V-4429 M | [13] | BOLT (M16X2X40-MM) | |
| 44 | 6V-5839 | [8] | WASHER (11X21X2.5-MM THK) | |
| 45 | 6V-8097 M | [24] | BOLT (M12X1.75X30-MM) | |
| 46 | 173-9683 M | [51] | BOLT (M30X3.5X90-MM) | |
| 47 | 7M-8485 | [1] | SEAL-O-RING | |
| 48 | 7X-4801 | [1] | SEAL-O-RING | |
| 49 | 8C-7562 M | [3] | SCREW-FLAT HEAD (M8X1.25X20-MM) | |
| 50 | 8T-0667 M | [20] | BOLT (M24X3X100-MM) | |
| 51 | 9S-8008 | [1] | PLUG (1-1/16-12-THD) | |
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
