4I-4255 4I4255 Door Lock Excavator Spare Parts For 311B 318B 320 320 L 320B
-
4I-4255 4I4255 Door Lock Excavator Spare Parts Fitting For 311B 318B 320 320 L 320B
-
Specifiion
| Appliion | C A T excavator spare parts |
| Name | Door lock |
| Parts No | 4I-4255 4I4255 |
| Model |
311B 318B 320 320 L 320B 325 325 L 325 LN 325B 330 330 L 345B II |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
EXCAVATOR 311B 318B 320 320 L 320B 325 325 L 325 LN 325B 330 330 L 345B II
MINI HYD EXCAVATOR 307 307B
- More lock parts supplied to C A T machine
| 1W2715 LOCK-RETAINER |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140G, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 205B, 214B, 224B, ... |
| 8S1491 LOCK |
| 120G, 12G, 12H, 12H ES, 12H NA, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 1673C, 215, 215B, 235, 235B, 3204, 330, 330 L, 3304, 3304B, 3306, 3306B, 3... |
| 2A4429 LOCK-RETAINER |
| 1140, 1160, 120, 120B, 120G, 120H, 120K, 120K 2, 12E, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 130G, 135H, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 143H, 14E, 14G, 14H, 14H NA, 14M, ... |
| 2H3779 LOCK |
| 1673, 1676, 235C, 330, 330 L, 3304, 3304B, 3306, 3306B, 330B, 330B L, 3408, 3408C, 3412, 350, 769, 772, 777, D320A, D336, D342, D348, D379B, E240, E300B, G379, G399, W330B |
| 5S7611 LOCK-SHAFT |
| 120B, 120G, 12G, 130G, 140B, 140G, 160H, 160H ES, 160H NA, 1673C, 225, 235, 330 L, 3304, 3304B, 3306, 3306C, 518, 527, 528, 528B, 530B, 572G, 615C, 637D, 637E, 815B, 920, 936F, 941, 950, 950B, 950B/95... |
| 0L0364 LOCK |
| 120G, 12E, 12F, 12G, 12H, 12H ES, 12H NA, 130G, 140B, 140G, 140H, 140H ES, 140H NA, 143H, 14E, 14G, 14H NA, 16, 160G, 160H, 160H ES, 160H NA, 163H NA, 1673, 1673B, 1673C, 1674, 1676, 1693, 16G, 205B, ... |
| 6I3033 LOCK |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 205B, 214B, 30/30, 3114, 3116, 3126, 320 L, 320B, 322B, 322B L, 322B LN, 322C, 322C FM, 325, 325 L, 325 LN, 325B, 325B L, 35, 45, 533, 543, 55, 613C II, 918F, 92... |
| 2680457 LOCK AS |
| 305.5, 307C, 312C, 312C L, 315C, 315D L, 317B LN, 318B, 318C, 319C, 319D L, 320B, 320C, 320C L, 320D, 321C, 322B L, 322B LN, 322C, 323D L, 324D L, 325B L, 325C, 325D, 325D L, 325D MH, 330B L, 330C, 33... |
| 2644501 LOCK AS |
| 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 3... |

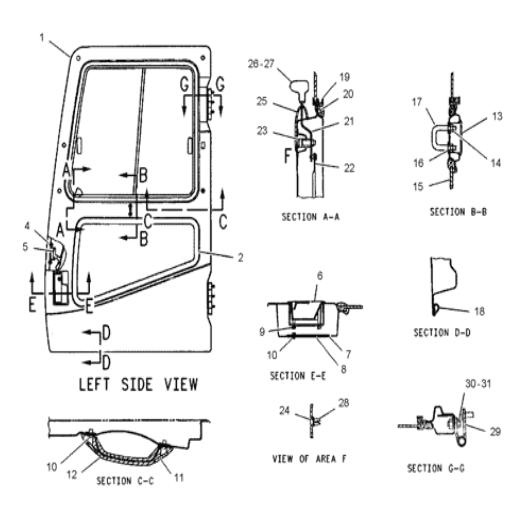

- alog part list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4I-4266 | [1] | DOOR AS | |
| 4I-3091 | [4] | BOSS | ||
| 4I-3092 | [1] | BOSS | ||
| 4I-3094 | [1] | BRACKET AS-GUARD | ||
| 8T-3612 M | [1] | NUT-WELD (M8X1.25-THD) | ||
| 2 | 4I-6832 | [1] | SEAL | |
| 4 | 9X-2044 M | [3] | SCREW-TRUSS HEAD (M6X1X16-MM) | |
| 5 | 4I-4255 | [1] | LOCK AS-DOOR | |
| 122-5312 | [1] | SNAP | ||
| 6 | 8Y-4820 | [1] | HANDLE AS | |
| 8Y-4501 | [1] | SPRING-HANDLE | ||
| 7 | 4I-5030 E | SEAL (70 CM) | ||
| 8 | 4I-4213 | [1] | COVER-DOOR | |
| 9 | 4I-6833 M | [4] | BOLT | |
| 10 | 101-8899 M | [8] | SCREW AS (M6X1.0X16-MM) | |
| 11 | 151-6704 | [4] | CAP | |
| 12 | 151-6703 | [2] | HANDLE-PULL | |
| 13 | 4I-3097 | [1] | GROMMET | |
| 14 | 3B-4505 | [2] | LOCKWASHER | |
| 095-0772 M | [2] | NUT | ||
| 15 | 4I-1190 | [1] | GLASS | |
| 16 | 8T-4224 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 17 | 4I-4244 M | [1] | HOOK | |
| 18 | 122-5233 | [1] | SEAL | |
| 19 | 4I-6966 Y | [1] | WINDOW GP-DOOR | |
| 20 | 3E-8297 E | SEAL (280 CM) | ||
| 21 | 4I-4254 | [1] | HANDLE AS | |
| 8T-3612 M | [1] | NUT-WELD (M8X1.25-THD) | ||
| 22 | 4I-4250 | [1] | ROD AS-DOOR LOCK | |
| 23 | 4I-3124 M | [1] | BOLT (M8X1.25X32-MM) | |
| 24 | 4I-4334 | [2] | SCREW-TAPPING | |
| 25 | 4I-4332 | [1] | COVER | |
| 26 | 4I-4286 | [1] | KNOB | |
| 27 | 096-2622 M | [2] | SCREW-MACHINE (M4X0.7X8-MM) | |
| 28 | 4I-4357 | [2] | GROMMET | |
| 29 | 4I-1268 | [2] | HINGE AS | |
| 30 | 8T-4136 M | [6] | BOLT (M10X1.5X25-MM) | |
| 31 | 8T-4121 | [6] | WASHER-HARD (11X21X2.5-MM THK) | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
- Other hot selling parts
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
