136-1679 1361679 Solenoid Valve Wheel Loader Spare Parts For 924G 938F
- 136-1679 1361679 Solenoid Valve Wheel Loader Spare Parts Fitting For 924G 938F
- Specifiion
| Name | Solenoid Valve |
| Parts No | 136-1679 1361679 |
| Machine Model | 924G 924GZ 938F 938G |
| egory | Wheel Loader Electric Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
PIPELAYER 572R
TRACK-TYPE TRACTOR D5M D6M D6R D7R D7R II D8R II
WHEEL LOADER 924G 924GZ 938F 938G
WHEEL SKIDDER 515 525 525B 535B 545 e.rpill.ar
- More other valve parts fit for C A T machine
| 2S5925 VALVE |
| 205B, 211B, 215, 215B, 225, 227, 229, 231D, 235, 235C, 235D, 245, 307, 311, 312, 315, 317, 318B, 320 L, 320B, 322 LN, 330 FM L, 330 L, 561B, 561C, 561M, 571G, 572G, 572R, 578, 583K, 594, 594H, 623B, 6... |
| 2S5926 VALVE |
| 1090, 1190, 1190T, 1290T, 1390, 205B, 211B, 215, 215B, 225, 227, 229, 2290, 231D, 235, 235C, 235D, 2390, 2391, 245, 2491, 2590, 307, 307B, 307C, 307D, 307E, 308C, 308D, 308E, 308E CR, 308E SR, 308E2 C... |
| 5P7090 VALVE-BALL |
| 227, 229D, 322C, 325B L, 518, 528, 528B, 530B, 561D, 589, 615, 615C, 621, 621B, 621R, 623E, 627B, 637E, 651E, 657E, 814, 814B, 815, 815B, 910, 931B, 943, 950, 953, 966C, 966D, 966R, 977K, 977L, 980B, ... |
| 1908609 VALVE-FILL |
| 517, 527, 561M, 561N, 572R II, 583R, 583T, 587R, 587T, 589, 623G, 933C, 939C, 973D, D10R, D10T, D10T2, D11R, D11T, D3C III, D3G, D3K XL, D3K2 LGP, D4C III, D4G, D4K XL, D4K2 XL, D5C III, D5G, D5HTSK I... |
| 1349602 VALVE AS-WATER |
| D5M, D5N, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D6R III, D6R STD, D6T, D7G2, D7R, D7R II, D7R XR, D8R II |
| 1074397 VALVE AS |
| 16M, 24M, 5110B, 583T, 587T, 769D, 771D, 773D, 773E, 773F, 775D, 775E, 775F, 776D, 777D, 777F, 785, 785B, 785C, 785D, 789, 789B, 789C, 789D, 793C, 793D, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795... |
| 1W8620 VALVE AS-CHECK |
| 120M 2, 12M 2, 140M 2, 160M 2, 330D, 589, 824H, 824K, 825K, 826H, 826K, 834G, 834H, 834K, 836H, 836K, 844K, 854K, 973C, 980H, 988H, 988K, 990K, 992K, 993K, D10N, D10R, D10T, D10T2, D6R II, D7R II, D7R... |
| 7M1296 VALVE-RELIEF |
| 572G, 572R, 572R II, 578, 583R, 587R, 587T, D6H, D6H XL, D6H XR, D6R, D6R II, D6R III, D6R STD, D6T, D6T LGP, D6T LGPPAT, D6T XL, D7F, D7G, D7H, D7R, D7R II, D7R XR, D8H, D8K, D8N, D8R, D9G, PL87 |
| 1582336 VALVE-GAS |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 5110B, 5130B, 735, 740, 784C, 785C, 785D, 789C, 793C, 793D, 797, 914G, 924F |

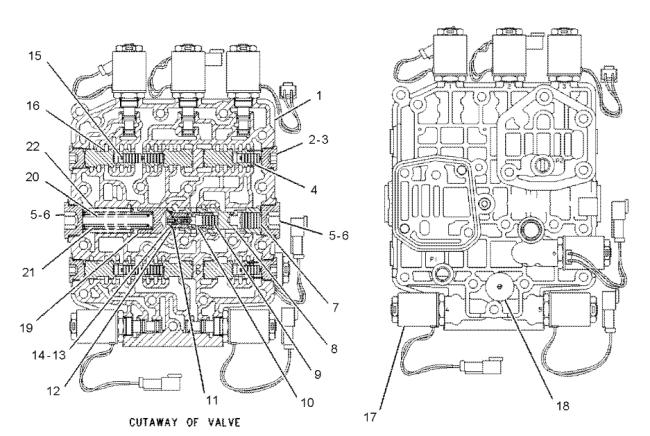

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6Y-1763 | [1] | BODY | |
| 2 | 7T-7679 | [4] | PLUG | |
| 3 | 2M-9780 | [4] | SEAL-O-RING | |
| 4 | 6Y-0871 | [2] | SPRING | |
| 5 | 6Y-4638 | [2] | PLUG-HEX SOCKET (1-5/16-12-THD) | |
| 6 | 7M-8485 | [2] | SEAL-O-RING | |
| 7 | 8E-1143 | [1] | SLUG | |
| 8 | 8E-3674 | [1] | SPOOL | |
| 9 | 8E-1142 | [1] | SLUG | |
| 10 | 8E-3675 | [1] | SPOOL | |
| 11 | 7T-8797 | [1] | SPACER (13X18.85X2-MM THK) | |
| 12 | 8J-2283 | [1] | RING-SNAP | |
| 13 | 7T-8803 | [1] | PLUG-SCREEN | |
| 14 | 4J-7533 | [1] | SEAL-O-RING | |
| 15 | 9W-6096 | [6] | SLUG | |
| 16 | 9W-6097 | [6] | SPOOL-SELECTOR | |
| 17 | 136-1679 Y | [6] | VALVE GP-SOLENOID (24-VOLT)(TRANSMISSION CLUTCH) | |
| 18 | 7B-3028 | [1] | SCREW-DRIVE (NO 4X 3/16-IN) | |
| 19 | 9W-8279 | [1] | PISTON | |
| 20 | 127-4898 | [1] | SPRING | |
| 21 | 8E-1139 | [1] | SPRING | |
| 22 | 8E-1172 | [1] | SPRING | |
| Y | SEPARATE ILLUSTRATION |
