425-46-11541 425-46-11531 425-46-11471 Shim KOMATSU Wheel Loader Spare Parts For WA500-6
- 425-46-11541 425-46-11531 425-46-11471 Shim KOMATSU Wheel Loader Spare Parts For WA500-6
- Specifiion
| Name | Shim |
| Parts No | 425-46-11541 425-46-11531 425-46-11471 |
| Machene Model | 558 568 WA500 WA600 |
| egory | Hinge Pin |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
ROLLERS JT150
WHEEL DOZERS WD500 WD600
WHEEL LOADERS 558 568 WA500 WA600 Komatsu
- More other shim parts fit for KOMATSU machine
| 175-13-05050 SHIM KIT |
| D155A |
| 6685-60-2450 SHIM ASS'Y |
| WS23S |
| 23B-22-00030 SHIM ASS'Y |
| GC380, GC380F, GD505A, GD521A, GD525A, GD605A, GD611A, GD621A, GD621R, GD623A, GD625A, GD661A, GD663A, GS360 |
| 232-70-00230 SHIM ASS'Y |
| GD600R, GD605A, GD621A, GD621R, GD623A, GD625A, GD655A, GD661A, GD663A |
| 708-23-14210 SHIM |
| PW150 |
| 232-43-00320 SHIM ASS'Y |
| GD355A, GD505A, GD525A, GD605A, GH320 |
| 6206-21-9460 SHIM,(F4310-65A0 -24 ) |
| WA1200 |
| 257-81-41640 SHIM |
| JV40CW, JV40DW, JW30 |
| 6040-51-4140 SHIM |
| S6D155 |
| 21N-38-00010 SHIM ASS'Y |
| PC1000, PC1000SE, PC1000SP, PC750, PC750SE, PC800, PC800SE |
| 154-03-00800 SHIM ASS'Y |
| D80A, D85A |
| 425-46-11531 SHIM, 0.1MM |
| 558, 568, HYDRAULIC, JT150, WA500, WA600, WD500, WD600, WF550, WF550T, WF600T, WF650T |

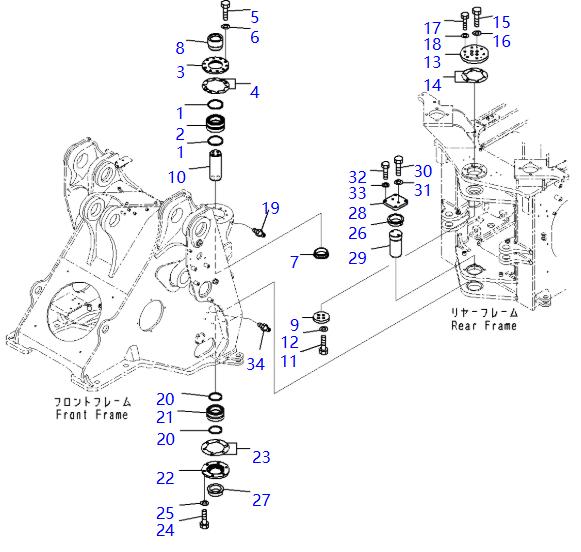

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 421-09-11350 | [2] | Seal, Dust Komatsu OEM | 0.056 kg. |
| ["SN: 55479-UP"] | ||||
| 2 | 425-46-11560 | [1] | Bearing Komatsu | 6.48 kg. |
| ["SN: 55479-UP"] analogs:["4264611310"] | ||||
| 3 | 425-46-11460 | [1] | Retainer Komatsu | 3.682 kg. |
| ["SN: 55479-UP"] | ||||
| 4 | 425-46-11471 | [8] | Shim, T=0.1mm Komatsu | 0.01 kg. |
| ["SN: 55479-UP"] | ||||
| 4 | 425-46-11481 | [8] | Shim, T=0.5mm Komatsu | 0.04 kg. |
| ["SN: 55479-UP"] | ||||
| 5 | 01010-61445 | [10] | Bolt Komatsu | 0.079 kg. |
| ["SN: 55479-UP"] analogs:["0101031445", "0101051445", "0101081445"] | ||||
| 6 | 01643-31445 | [10] | Washer, Flat Komatsu | 0.019 kg. |
| ["SN: 55479-UP"] analogs:["0164301432"] | ||||
| 7 | 425-46-11421 | [1] | Bushing Komatsu | 1.07 kg. |
| ["SN: 55479-UP"] | ||||
| 8 | 425-46-11431 | [1] | Bushing Komatsu | 3.721 kg. |
| ["SN: 55479-UP"] | ||||
| 9 | 425-46-31211 | [1] | Plate Komatsu | 2.77 kg. |
| ["SN: 55479-UP"] | ||||
| 10 | 425-46-31220 | [1] | Pin Komatsu | 16.002 kg. |
| ["SN: 55479-UP"] | ||||
| 11 | 01010-61895 | [4] | Bolt Komatsu | 0.22 kg. |
| ["SN: 55479-UP"] | ||||
| 12 | 01643-31845 | [4] | Washer Komatsu China | 0.02 kg. |
| ["SN: 55479-UP"] analogs:["0164321845", "R0164331845"] | ||||
| 13 | 425-46-31290 | [1] | Retainer Komatsu | 8.86 kg. |
| ["SN: 55479-UP"] | ||||
| 14 | 425-46-11531 | [10] | Shim, T=0.1mm Komatsu | 0.01 kg. |
| ["SN: 55479-UP"] | ||||
| 14 | 425-46-11541 | [16] | Shim, T=0.5mm Komatsu | 0.04 kg. |
| ["SN: 55479-UP"] | ||||
| 17 | 01010-61655 | [6] | Bolt Komatsu | 0.119 kg. |
| ["SN: 55479-UP"] analogs:["801015613", "0101031655", "0101051655", "0101081655"] | ||||
| 18 | 01643-31645 | [6] | Washer Komatsu | 0.072 kg. |
| ["SN: 55479-UP"] analogs:["802170005", "0164301645"] | ||||
| 19 | 07020-00000 | [1] | Fitting, Grease Komatsu China | 0.006 kg. |
| ["SN: 55479-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"] | ||||
| 20 | 425-46-11280 | [2] | Seal Komatsu | 0.1 kg. |
| ["SN: 55479-UP"] | ||||
| 21 | 425-46-11310 | [1] | Bearing Komatsu | 5.081 kg. |
| ["SN: 55479-UP"] | ||||
| 22 | 425-46-31230 | [1] | Retainer Komatsu | 4.76 kg. |
| ["SN: 55479-UP"] | ||||
| 23 | 425-46-31270 | [8] | Shim, D=0.1mm Komatsu | 0.011 kg. |
| ["SN: 55479-UP"] | ||||
| 23 | 425-46-31280 | [8] | Shim, D=0.5mm Komatsu | 0.048 kg. |
| ["SN: 55479-UP"] | ||||
| 24 | 01010-61645 | [6] | Bolt Komatsu China | 0.104 kg. |
| ["SN: 55479-UP"] analogs:["801015187", "0101031645", "0101051645", "0101081645", "37A0911184", "801014184"] | ||||
| 26 | 425-46-11230 | [1] | Bushing Komatsu | 1.29 kg. |
| ["SN: 55479-UP"] | ||||
| 27 | 425-46-31260 | [1] | Collar Komatsu | 1.74 kg. |
| ["SN: 55479-UP"] | ||||
| 28 | 425-46-31240 | [1] | Plate Komatsu China | |
| ["SN: 55479-UP"] | ||||
| 29 | 425-46-31250 | [1] | Pin Komatsu | 16 kg. |
| ["SN: 55479-UP"] | ||||
| 30 | 01010-61650 | [2] | Bolt Komatsu China | 0.113 kg. |
| ["SN: 55479-UP"] analogs:["0101051650", "0101031650", "0101081650"] | ||||
| 32 | 01010-61665 | [4] | Bolt Komatsu | 0.134 kg. |
| ["SN: 55479-UP"] analogs:["0101051665", "0101031665", "0101081665"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
