4087997 4903531 Fuel Pump CUMMINS Excavator Engine Parts For QSK23
- 4087997 4903531 Fuel Pump CUMMINS Excavator Engine Parts Fitting For QSK23
- Specifiion
| Name | Fuel Pump |
| Parts No | 4087997 4903531 |
| Machine Model | QSK23 |
| egory | Engine Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
- More other pump parts fit for machine
| 21EG-10130 PUMP-MOTOR |
| 50D-7A, 50D-7K, 50DE, 50DEACE, 50DF, 80D-9, 80DE, 80DEACE, HL740-F, HW140, HW210, HX140L, HX160L, HX180L, HX220NL, HX235L, R110-7, R110-7A, R1200-9, R125LCR-9A, R130W3, R140LC-7, R140LC-7A, R140LC9, R... |
| 21Q6-36001 PUMP & MOTOR ASSY |
| HW210, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R210LC9, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R2... |
| 31NB-98110 PUMP |
| R1200-9, R450LC7, R450LC7A, R500LC7, R500LC7A, RD510LC-7 |
| 11QD-90630 PUMP-CIRCULATION |
| R1200-9, R800LC-9, R800LC9FS |
| 31QD-81510 PUMP ASSY |
| R1200-9, R800LC-9, R800LC7A |
| XKCE-00251 PUMP ASSY |
| R1200-9, R800LC-9, R800LC7A |
| 4095431 PUMP-LUBRIING OIL |
| R1200-9 |
| 4096429 PUMP-WATER |
| R1200-9 |
| 31QD-81511 PUMP ASSY |
| R1200-9, R8007AFS, R800LC-9, R800LC7A, R800LC9FS |
| XKCE-00251 PUMP ASSY |
| R1200-9, R800LC-9, R800LC7A |
| 31QD-81510 PUMP ASSY |
| R1200-9, R800LC-9, R800LC7A |
| 11QD-90630 PUMP-CIRCULATION |
| R1200-9, R800LC-9, R800LC9FS |
| XCAF-00429 PUMP BRACKET |
| HL850EX, SL763, SL763G, SL763S, SL765, SL765S |
| XCAF-00427 PUMP BRACKET |
| HL850EX, SL763, SL763G, SL763S, SL765, SL765S |
| XCAF-00426 PUMP BRACKET |
| HL850EX, SL763, SL763G, SL763S, SL765, SL765S |
| XCAF-00422 PUMP GEAR |
| HL850EX, SL763, SL763G, SL763S, SL765, SL765S |
| XCAF-00421 PUMP FLANGE |
| HL850EX, SL763, SL763G, SL763S, SL765, SL765S |
| XCAM-00166 PUMP COVER |
| HL850EX, SL763 |
| XCAM-00160 PUMP BODY |
| HL850EX, SL763 |
| XCAM-00013 PUMP |
| HL850EX, SL763 |
| 2895320NX PUMP-WATER |
| HL780-9A, R480LC9A, R520LC9A |
| 4095431 PUMP-LUBRIING OIL |
| R1200-9 |
| 4096429 PUMP-WATER |
| R1200-9 |
| 11N8-90850 PUMP-FUEL |
| R140LC9S, R140W9S, R160LC9S, R170W9S, R180LC9S, R180W9S, R210W9S |
| 33100-93C75 PUMP GENERAL ASSY |
| Hyundai |
| 31Q6-30020 PUMP-POWER TRAIN |
| HW210, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| 3283602 PUMP-WATER |
| H70, H80, HDF50A, R210W9S, R260LC9S |
| 31Q8-31110 PUMP-FAN DRIVE |
| R300LC9A |
| 31Q9-31120 PUMP-FAN |
| R330LC9A, R380LC9A, R430LC9A |
| 4954362 PUMP-FUEL |
| R330LC9A, R380LC9A, R430LC9A |
| 31Q9-31110 PUMP-FAN |
| R380LC9A |

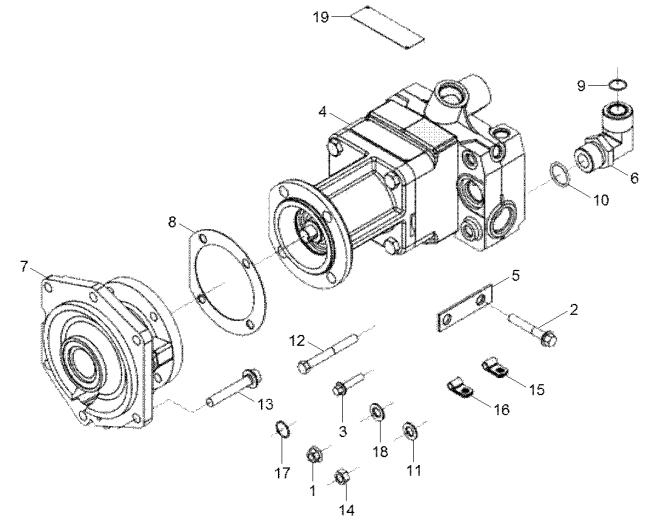

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3093828 | [1] | NUT-HEX FLANGE | FP50044-01 |
| 2 | 3094815 | [1] | SCREW-HEX F/HEAD CAP | |
| 3 | 3864129 | [5] | SCREW-HEX F/HEAD CAP | |
| 4 | 4087997 | [1] | PUMP-FUEL | |
| 5 | 4095550 | [1] | PLATE-CLAMPING | |
| 6 | 4095605 | [1] | ELBOW-PLAIN UNION | |
| 7 | 4095606 | [1] | SUPPORT-FUEL PUMP | |
| 8 | 4095607 | [1] | GASKET-FUEL PUMP | |
| 9 | 4095614 | [1] | SEAL/O-RING | |
| 10 | 4095615 | [1] | SEAL/O-RING | |
| 11 | 4095634 | [2] | WASHER-PLAIN | |
| 12 | 4095815 | [1] | SCREW-HEX HEAD CAP | |
| 13 | 4095844 | [1] | SCREW-HEX F/HEAD CAP | |
| 14 | 4095871 | [2] | NUT-REGULAR HEX | |
| 15 | 4095886 | [1] | CLIP | |
| 16 | 4095888 | [1] | CLIP | |
| 17 | 4095892 | [1] | SEAL/O-RING | |
| 18 | 4095978 | [1] | WASHER-PLAIN | |
| N19. | 4095994 | [1] | DATAPLATE | |
| 20 | 3408577 | [1] | SENSOR-PRESSURE | |
| 21 | 3330600 | [1] | ACTUATOR-ETR FUEL CTRL | |
| 22 | 3042619 | [1] | NIPPLE-COUPLING | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
