203-54-62392 2035462392 Hinge KOMATSU Excavator Spare Parts For PC100-6 PC130-8
- 203-54-62392 2035462392 Hinge KOMATSU Excavator Spare Parts For PC100-6 PC130-8
- Specifiion
| Name | Hinge |
| Parts No | 203-54-62392 2035462392 |
| Machene Model | PC100 PC100L PC100N PC120 PC120SC PC130 PC150LGP PW130 |
| egory | Hood, Hood and Bracket |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
LIME SPREADERS CL60
MOBILE CRUSHERS AND RECYCLERS BZ120 Komatsu
- More other hinge parts fit for KOMATSU machine
| 20Y-06-K1150 HINGE |
| PC120, PC130, PC150HD, PC150NHD, PC180, PC180L, PC210, PC240, PC300, PW170 |
| 20Y-54-K2410 HINGE |
| PC120, PC130, PC150HD, PC150NHD, PC180, PC180L, PC210, PC240, PC300, PC400, PW170 |
| 203-54-52241 HINGE (WELDED) |
| JV100A, PC100, PC100L, PC120, PC130, PC150, PC150HD, PC150NHD, PC180, PC180L, PC60, PC60L, PC70, PW170 |
| 20Y-54-14180 HINGE ASS'Y |
| BP500, CD60R, JV100A, PC10, PC100, PC1000, PC1000SE, PC1000SP, PC100L, PC10N, PC120, PC130, PC15, PC150, PC20, PC200 |
| 20Y-54-11282 HINGE |
| BP500, JV100A, PC100, PC1000, PC1000SE, PC1000SP, PC100L, PC120, PC130, PC150, PC200 |
| 203-54-51380 HINGE |
| CD110R, CD60R, PC100, PC100L, PC120, PC130, PC150, PC200, PC220, PC228, PC228US, PC300, PC400, PC60, PC60L, PC70 |
| 203-54-44950 HINGE,L.H. |
| PC100, PC100L, PC100S, PC100SS, PC100U, PC100US, PC120, PC120S, PC150, PF3, PF3W, PW100, PW100N, PW100NS, PW100S, PW150 |
| 20T-54-32220 HINGE |
| CS210, CS360, CS360SD, PC10, PC15, PC15T, PC20, PC30, PC40, PW30, PW30T |
| 20Y-53-11332 Hinge |
| PC300, PC350, RAIN |
| 20Y-54-63411 HINGE (WELDED) |
| PC130, PC400, PC450 |
| 20Y-979-2630 HINGE |
| PC100, PC100L, PC1100, PC1100SE, PC1100SP, PC120, PC120SC, PC130, PC200, PC300 |
| 203-54-67741 HINGE (WELDED) |
| PC100, PC100L, PC100N, PC120, PC120SC, PC130, PC150LGP, PC160, PC180 |

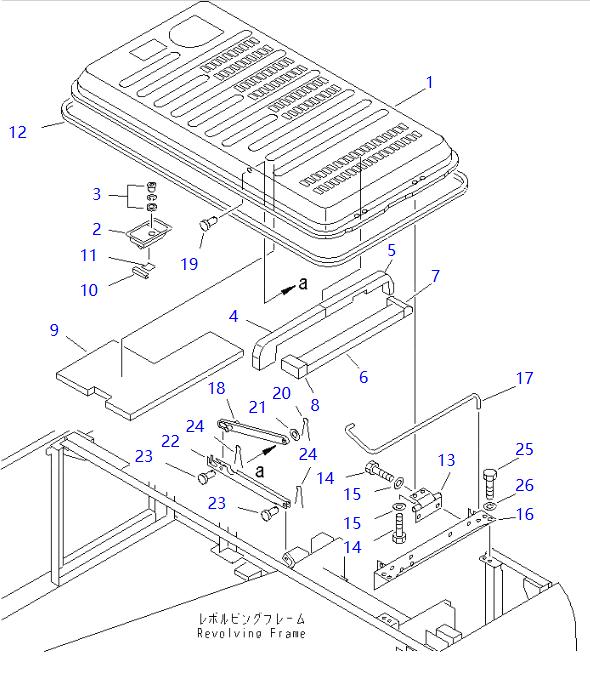

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 203-54-61316 | [1] | HOOD Komatsu | 40.01 kg. |
| ["SN: 42016-@"] analogs:["2035461313"] | ||||
| 1 | 203-54-61315 | [1] | HOOD Komatsu China | |
| ["SN: 40624-42015"] | ||||
| 1 | 203-54-61313 | [1] | HOOD Komatsu | 40.01 kg. |
| ["SN: 40001-40623"] analogs:["2035461316"] | ||||
| 2. | 198-54-41982 | [1] | LOCK ASS'Y (WELDED) Komatsu | 0.75 kg. |
| ["SN: 42016-@"] | ||||
| 2. | 421-54-11372 | [1] | LOCK ASS'Y (WELDED) Komatsu | 0.7 kg. |
| ["SN: 40001-42015"] analogs:["4215411363", "4215411362"] | ||||
| 3 | 421-54-11381 | [1] | LOCK Komatsu | 0.1 kg. |
| ["SN: 40001-42015"] | ||||
| 4. | 203-54-61162 | [1] | SHEET Komatsu China | |
| ["SN: 40086-@"] | ||||
| 4. | 203-54-61161 | [1] | SHEET Komatsu China | |
| ["SN: 40001-40085"] | ||||
| 5. | 203-54-61172 | [1] | SHEET Komatsu China | |
| ["SN: 40086-@"] | ||||
| 5. | 203-54-61171 | [1] | SHEET Komatsu China | |
| ["SN: 40001-40085"] | ||||
| 6. | 203-54-61230 | [1] | SHEET Komatsu China | |
| ["SN: 40001-@"] | ||||
| 7. | 203-54-61241 | [1] | SHEET Komatsu China | |
| ["SN: 40001-@"] | ||||
| 8. | 203-54-61250 | [1] | SHEET Komatsu China | |
| ["SN: 40001-@"] | ||||
| 9. | 203-54-62930 | [1] | SHEET Komatsu China | |
| ["SN: 40001-@"] | ||||
| 10. | 203-54-62940 | [1] | SEAL Komatsu China | |
| ["SN: 40001-@"] | ||||
| 11. | 203-54-62980 | [1] | SHEET Komatsu China | |
| ["SN: 40001-@"] | ||||
| 12. | 203-54-63292 | [2] | SEAL Komatsu China | |
| ["SN: 40001-@"] analogs:["2035463291", "2035463293"] | ||||
| 13 | 203-54-62392 | [2] | HINGE Komatsu China | |
| ["SN: 40001-@"] | ||||
| 14 | 01010-51230 | [8] | BOLT Komatsu | 0.043 kg. |
| ["SN: 40001-@"] analogs:["0101081230", "01010B1230"] | ||||
| 15 | 01643-31232 | [8] | WASHER Komatsu | 0.027 kg. |
| ["SN: 40001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 16 | 203-54-61142 | [1] | BRACKET Komatsu China | |
| ["SN: 40001-@"] | ||||
| 17 | 203-54-61151 | [1] | SPRING Komatsu | 0.92 kg. |
| ["SN: 40001-@"] | ||||
| 18 | 20Y-54-27290 | [1] | STAY Komatsu China | |
| ["SN: 40001-@"] analogs:["20Y5427290NK", "R20Y5427290"] | ||||
| 19 | 04205-11230 | [1] | PIN Komatsu | 0.037 kg. |
| ["SN: 40001-@"] analogs:["0420501230"] | ||||
| 20 | 04050-13022 | [1] | PIN,COTTER Komatsu | 0.002 kg. |
| ["SN: 40001-@"] | ||||
| 22 | 20Y-54-27370 | [1] | STAY Komatsu China | |
| ["SN: 40001-@"] analogs:["20Y5427370NK", "2055465940", "R20Y5427370"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
