600-815-6660 6008156660 Stop Motor KOMATSU Wheel Loader Spare Parts For 6D105-1EE WA500-1L
- 600-815-6660 6008156660 Stop Motor KOMATSU Wheel Loader Spare Parts For 6D105-1EE WA500-1L
- Specifiion
| Name | Stop Motor |
| Parts No | 600-815-6660 6008156660 |
| Machene Model | GD521A GD605A GD661A WA500 |
| egory | Engine part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
GRADERS GD521A GD605A GD661A
WHEEL LOADERS WA500 Komatsu
- More other motor parts fit for KOMATSU machine
| 416-18-31702 MOTOR,(SEE FIG. Y1651-01A0) (HST 1) |
| WA150 |
| 706-77-04500 MOTOR ASS'Y |
| PC300 |
| 418-18-31301 MOTOR |
| WA250, WA250L, WA250PT, WA250PTL, WA250PZ, WA270 |
| 706-75-30904 MOTOR ASS'Y,(KMFA090B) |
| PC200, PC220 |
| 415-17-22101 MOTOR ASS'Y,VALIABLE |
| WA80 |
| 706-77-11000 MOTOR ASS'Y |
| PC300 |
| 232-62-12100 MOTOR ASSY |
| GD605A |
| 706-77-11102 MOTOR ASS'Y |
| PC400 |
| 23B-62-11500 MOTOR ASS'Y |
| GD305A, GD355A, GD405A, GD505A, GD510R, GD511A, GD521A, GD605A, GD621A, GD621R, GD623A, GD661A, GD663A |
| 706-7C-01020 Motor Assembly |
| PC130 |
| 706-77-11002 MOTOR ASS'Y |
| PC300 |
| AN51500-10771 MOTOR ASSEMBLY |
| WA380 |

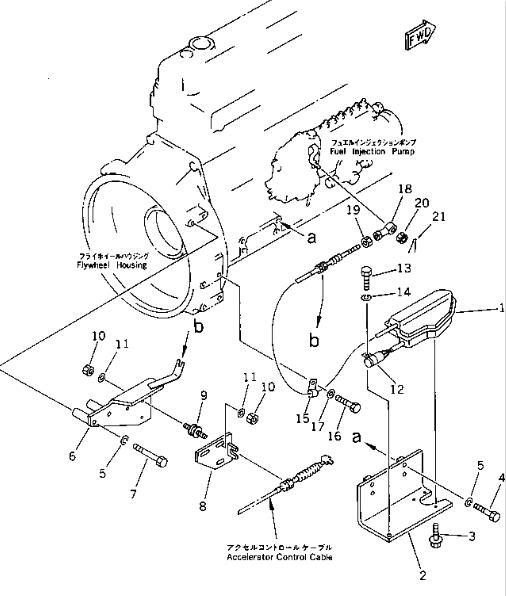

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 600-815-6660 | [1] | MOTOR ASS'Y,ENGINE STOP Komatsu | 1.7 kg. |
| ["SN: 94064-UP"] | ||||
| 2 | 6137-81-9781 | [1] | BRACKET Komatsu China | |
| ["SN: 94064-UP"] | ||||
| 3 | 01435-00620 | [3] | BOLT Komatsu | 0.008 kg. |
| ["SN: 94064-UP"] | ||||
| 4 | 01010-31240 | [4] | BOLT Komatsu | 0.052 kg. |
| ["SN: 94064-UP"] analogs:["01010E1240", "0101061240"] | ||||
| 5 | 01602-01236 | [6] | WASHER,SPRING Komatsu | 0.007 kg. |
| ["SN: 94064-UP"] | ||||
| 6 | 6137-81-9681 | [1] | BRACKET Komatsu China | |
| ["SN: 94064-UP"] analogs:["6137819680"] | ||||
| 7 | 01011-31200 | [2] | BOLT Komatsu | 0.104 kg. |
| ["SN: 94064-UP"] analogs:["0101181200", "801015583", "0101151200"] | ||||
| 8 | 419-43-11280 | [1] | BRACKET Komatsu China | |
| ["SN: 94064-UP"] | ||||
| 9 | 424-43-11240 | [3] | CUSHION Komatsu | 0.03 kg. |
| ["SN: 94064-UP"] | ||||
| 10 | 01580-10605 | [6] | NUT Komatsu | 0.01 kg. |
| ["SN: 94064-UP"] analogs:["21D0921430", "M018200600006", "801920103"] | ||||
| 11 | 424-43-11250 | [6] | WASHER Komatsu China | |
| ["SN: 94064-UP"] | ||||
| 12 | 08036-02514 | [1] | CLIP Komatsu | 0.026 kg. |
| ["SN: 94064-UP"] | ||||
| 13 | 01010-31020 | [1] | BOLT Komatsu | 0.024 kg. |
| ["SN: 94064-UP"] analogs:["01010E1020"] | ||||
| 14 | 01602-01030 | [1] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 94064-UP"] analogs:["0160211030"] | ||||
| 15 | 6127-81-2860 | [1] | CLIP Komatsu China | |
| ["SN: 94064-UP"] | ||||
| 16 | 01010-31220 | [1] | BOLT Komatsu | 0.035 kg. |
| ["SN: 94064-UP"] analogs:["01010E1220"] | ||||
| 17 | 01640-21223 | [1] | WASHER Komatsu | 0.012 kg. |
| ["SN: 94064-UP"] analogs:["0164001223"] | ||||
| 18 | 04250-50639 | [1] | END,ROD Komatsu | 0.03 kg. |
| ["SN: 94064-UP"] | ||||
| 19 | 01580-00605 | [1] | NUT Komatsu | 0.002 kg. |
| ["SN: 94064-UP"] analogs:["0158030605"] | ||||
| 20 | 01590-10607 | [1] | NUT Komatsu | 0.003 kg. |
| ["SN: 94064-UP"] analogs:["0159030607", "0159000607"] | ||||
| 21 | 04050-11212 | [1] | PIN,COTTER Komatsu | 0.001 kg. |
| ["SN: 94064-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
