6217-51-5103 6217515103 Oil Filter Head Support For KOMATSU PC400 PC450 PC490
- 6217-51-5103 6217515103 Oil Filter Head Support For KOMATSU PC400 PC450 PC490
- Specifiion
| egory | KOMATSU Excavator Filter |
| Name | Oil filter head |
| Parts No | 6217-51-5103 6217515103 |
| Machine Model |
PC400 PC450 PC490 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
DUMP TRUCKS HM300
ENGINES SAA6D125E
EXCAVATORS PC400 PC450 PC490
WHEEL LOADERS WA470 WA480 Komatsu

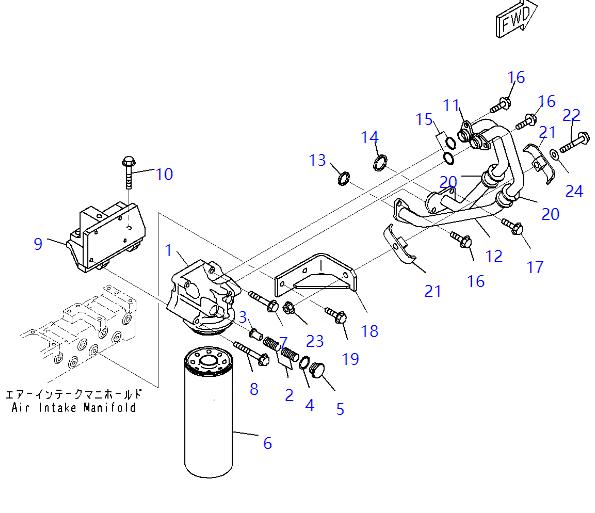

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 6217-51-5103 | [1] | Head Assembly, Oil Filter Komatsu | 2.39 kg. | |
| ["SN: 567555-UP"] analogs:["6217515101", "6217515100", "6217515111", "6217515102", "6217515112"] |$0. | ||||
| 1. | 6217-51-5112 | [1] | Head Komatsu | 2.39 kg. |
| ["SN: 567555-UP"] analogs:["6217515101", "6217515100", "6217515111", "6217515102", "6217515103"] | ||||
| 2. | 600-211-1890 | [1] | Spring Komatsu | 0.04 kg. |
| ["SN: 567555-UP"] | ||||
| 3. | 6162-55-5230 | [1] | Valve Komatsu | 0.001 kg. |
| ["SN: 567555-UP"] | ||||
| 4. | 6162-53-5430 | [1] | Packing Komatsu | 0.006 kg. |
| ["SN: 567555-UP", "KIT-FLAG: S"] | ||||
| 5. | 6217-51-5660 | [1] | Cap Komatsu | 0.07 kg. |
| ["SN: 567555-UP"] | ||||
| 6 | 600-211-1340 | [1] | Cartridge Komatsu OEM | 2.165 kg. |
| ["SN: 567555-UP"] analogs:["E6002111340"] | ||||
| 7 | 01435-01060 | [2] | Bolt Komatsu | 0.042 kg. |
| ["SN: 567555-UP"] | ||||
| 8 | 01436-01010 | [2] | Bolt Komatsu China | |
| ["SN: 567555-UP"] analogs:["0143621010"] | ||||
| 9 | 6251-51-5340 | [1] | Bracket Komatsu China | |
| ["SN: 567555-UP"] | ||||
| 11 | 6251-51-5771 | [1] | Tube,Inlet Komatsu | 1 kg. |
| ["SN: 567555-UP"] | ||||
| 12 | 6251-51-5781 | [1] | Tube, Return Komatsu | 1 kg. |
| ["SN: 567555-UP"] | ||||
| 13 | 6124-61-2181 | [2] | Grommet Komatsu | 0.002 kg. |
| ["SN: 567555-UP", "KIT-FLAG: S"] analogs:["6124612180"] | ||||
| 14 | 6154-51-5810 | [1] | Grommet Komatsu | 0.001 kg. |
| ["SN: 567555-UP", "KIT-FLAG: S"] | ||||
| 15 | 07000-73025 | [2] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 567555-UP", "KIT-FLAG: S"] analogs:["0700063025", "R0700073025"] | ||||
| 16 | 01435-01025 | [4] | Bolt Komatsu | 0.192 kg. |
| ["SN: 567555-UP"] analogs:["0143521025"] | ||||
| 18 | 6251-51-5291 | [1] | Bracket Komatsu China | |
| ["SN: 567555-UP"] | ||||
| 20 | 6251-51-5180 | [2] | Cushion Komatsu | 0.04 kg. |
| ["SN: 567555-UP"] | ||||
| 21 | 07094-30518 | [2] | Clamp Komatsu | 0.188 kg. |
| ["SN: 567555-UP"] | ||||
| 22 | 01435-01270 | [1] | Bolt Komatsu | 0.073 kg. |
| ["SN: 567555-UP"] | ||||
| 23 | 01584-01210 | [1] | Nut Komatsu | 0.017 kg. |
| ["SN: 567555-UP"] | ||||
| 24 | 01643-31232 | [1] | Washer Komatsu | 0.027 kg. |
| ["SN: 567555-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
- More other head parts applied to KOMATSU equipment
| 6251-71-7100 HEAD ASS'Y |
| COOLANT, D65EX, D85EX, D85PX, HM250, HM300, PC400, PC450, PC490, PC600, PC700, SAA6D125E, SAA6D140E, WA470, WA480, WA500 |
| 707-27-16950 HEAD |
| AIR, FRONT, PC210, PC230NHD, PC300LL, PC350LL, PC390LL, PC400, PC450, PW160, WA380, WA380Z, WA430, WA450, WA470 |
| 707-27-18180 HEAD |
| COOLANT, PC400, PC450, PC600, PC650, PC700, PC800, PC850, PC850SE |
| 424-06-23210 HEAD LAMP ASS'Y |
| HM250, HM300, HM300TN, HM350, HM400, WA380, WA420, WA470, WA600, WD600 |
| 6217-51-5111 HEAD |
| HM350, PC400, PC750, PC750SE, PC800, PC800SE, SA6D125E, SA6D140E, SAA6D125E, SAA6D140E, SDA6D140E, WA470, WA480 |
| 707-27-18930 HEAD |
| COOLANT, HYDRAULIC, PC220LL, PC240, PC400, PC450, PC550, PC600, PC650, PC700, PC800, PC800SE, PC850, PC850SE, WA500 |
| 707-29-90651 HEAD,CYLINDER |
| GD755, GH320, WA450, WA470, WA480 |
| 421-57-H0R07 HEAD REST |
| WA380, WA430, WA470, WA480, WA500 |
| AS176808 HEAD REST KIT |
| AIR, HB205, HB215, PC130, PC138, PC200, PC200LL, PC220, PC300, PC300HD, PC350, PC350HD, PC400, PC450, PC600, PC650, PC800, PC800SE |
| 6710-61-8211 HEAD |
| NTA |
| 6710-61-8210 HEAD |
| NTA |
| 155-906-0031 HEAD GUARD ASS'Y |
| D95S |
