65.01150-6010 65.011506010 Thrust Washer Excavator Engine Parts Fit DOOSAN SOLAR 130-2
-
65.01150-6010 65.011506010 Thrust Washer Excavator Engine Parts Fit DOOSAN SOLAR 130-2
-
Specifiion
| Appliion | DOOSAN excavator engine parts |
| Name | Thrust Washer |
| Parts No | 65.01150-6010 65.011506010 |
| Model |
SOLAR 130-2 SOLAR 130LC-V SOLAR 150LC-V SOLAR 170W-V SOLAR 220LC-V SOLAR 220LL |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
EXCAVATORS
SOLAR 130-2 SOLAR 130LC-V SOLAR 150LC-V SOLAR 170W-V SOLAR 220LC-V SOLAR 220LL
- More washer parts supplied to DOOSAN machine
| 4114-7082 WASHER;THRUST |
| Doosan |
| 0730 005 304 WASHER(OPT) S=2.0 |
| Doosan |
| 0730 005 303 WASHER(OPT) S=1.9 |
| Doosan |
| 0730 003 207 WASHER(OPT) S=1.8 |
| Doosan |
| 0730 005 302 WASHER(OPT) S=1.7 |
| Doosan |
| 0730 005 301 WASHER(OPT) S=1.6 |
| Doosan |
| 0730 107 538 WASHER(OPT) S=2.15 |
| Doosan |
| 114-00243 WASHER |
| Doosan |
| DS0401198 WASHER |
| Doosan |
| 65.01150-6012 WASHER;THRUST 0.50 |
| Doosan |
| 65.01150-6011 WASHER;THRUST 0.25 |
| Doosan |
| 65.01150-6010A WASHER;THRUST STD |
| Doosan |

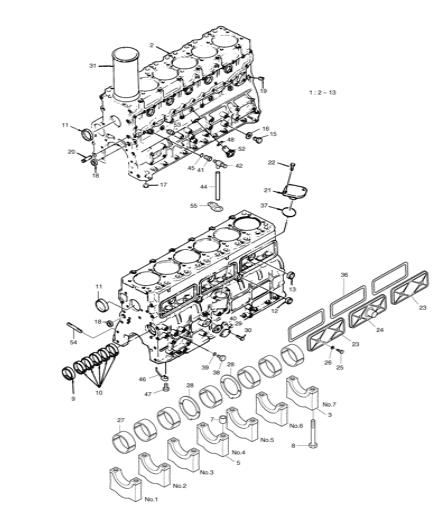

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 65.01101-6051F | [1] | CYLINDER BLOCK ASS'Y | 65.01101-6051H |
| 1 | 65.01101-6051H | [1] | CYLINDER BLOCK ASS'Y | |
| 10 | 65.04410-0006A | [5] | BUSH;CAM SHAFT | |
| 11 | 65.90302-0009 | [2] | . PLUG;CORE | |
| 12 | 06.15091-0319 | [2] | PLUG;CORE | |
| 13 | 06.15091-0322 | [3] | PLUG;CORE | |
| 15 | 65.90310-0030 | [1] | SCREW;PLUG M12X1.25 | |
| 16 | 06.56190-0704 | [1] | . RING;SEAL | |
| 17 | 65.90320-0019 | [1] | PLUG SCREW PT3/8 | |
| 18 | 06.15091-0313 | [2] | PLUG;CORE | |
| 19 | 65.90320-0022 | [10] | PLUG SCREW | |
| 2 | 65.01101-0030E | [1] | BLOCK;CYLINDER | |
| 2 | 65.01101-0030F | [1] | BLOCK;CYLINDER | |
| 20 | 65.90201-0058 | [1] | BOLT;STUD M14X12.5X45 | |
| 21 | 65.91605-0001D | [1] | COVER | 65.91605-0001E |
| 21 | 65.91605-0001E | [1] | COVER | |
| 22 | 06.01913-3113 | [2] | .. BOLT ASS`Y M8X20 | |
| 23 | 65.01112-0021A | [2] | COVER;PUSH ROD CHAMBER | |
| 24 | 65.01112-5018 | [1] | COVER;PUSH ROD CHAMBER | |
| 25 | 65.90020-0049 | [6] | BOLT;HEX. | |
| 26 | 65.96507-0007 | [6] | PACKING;PUSH ROD CHAMBER | |
| 27 | 65.01110-6090A | [7] | METAL;CRANK STD | 65.01110-6090B |
| 27 | 65.01110-6090B | [7] | METAL;CRANK STD | |
| 27 | 65.01110-6091 | [7] | METAL;CRANK 0.25 | |
| 27 | 65.01110-6092 | [7] | METAL;CRANK 0.50 | |
| 28 | 65.01150-6010 | [2] | WASHER;THRUST STD | 65.01150-6010A |
| 28 | 65.01150-6010A | [2] | WASHER;THRUST STD | |
| 28 | 65.01150-6011 | [2] | WASHER;THRUST 0.25 | |
| 28 | 65.01150-6034A | [2] | WASHER;THRUST 0.25 | |
| 28 | 65.01150-6012 | [2] | WASHER;THRUST 0.50 | |
| 28 | 65.01150-6035A | [2] | WASHER;THRUST 0.50 | |
| 29 | 65.91615-0011 | [1] | COVER;BLIND | |
| 3 | 65.01105-1044 | [6] | CAP;BEARING(F.M.R) | |
| 30 | 06.01913-3113 | [2] | .. BOLT ASS`Y M8X20 | |
| 31 | 65.01201-0067 | [6] | LINER;CYLINDER (ALTV.) | |
| 31 | 65.01201-0068 | [6] | LINER;CYLINDER(1A) | |
| 31 | 65.01201-0069 | [6] | LINER;CYLINDER(1B) | |
| 31 | 65.01201-0070 | [6] | LINER;CYLINDER(2A) | |
| 31 | 65.01201-0071 | [6] | LINER;CYLINDER(2B) | |
| 36 | 65.01901-0004 | [3] | GASKET;CHAMBER COVER | 65.01901-0020 |
| 36 | 65.01901-0020 | [3] | GASKET;PUSH ROD CHAMBER | |
| 37 | 06.56021-0106 | [1] | O-RING;O/P DRIVE FLANGE | |
| 38 | 65.90310-0135 | [1] | PLUG;SCREW | |
| 39 | 06.56190-0706 | [1] | SEAL RING | |
| 40 | 65.05903-0013 | [1] | GASKET | 65.05903A0013 |
| 40 | 65.05903A0013 | [1] | GASKET;FLANGE | |
| 41 | 65.98130-0040 | [1] | ADAPTER | |
| 42 | 65.06310-6003 | [1] | PLUG;DRAIN | |
| 44 | 04.50010-0811 | [1] | HOSE;VINYL | |
| 45 | 06.56190-0713 | [1] | RING;SEAL | |
| 46 | 65.01601-5010A | [6] | OIL JET PIPE | |
| 47 | 65.05401-5023 | [6] | RELIEF VALVE ASS`Y | |
| 48 | 06.56021-0102 | [1] | . O-RING | |
| 5 | 65.01105-1043 | [1] | CAP;BEARING(NO.4) | |
| 52 | 65.05401-5002 | [1] | RELIEF VALVE ASS'Y | 65.05401-5002F |
| 52 | 65.05401-5002F | [1] | RELIEF VALVE ASS'Y | |
| 53 | 65.27441-7006 | [1] | SWITCH;OIL PRESS | |
| 54 | 65.90201-0182 | [1] | BOLT;STUD | |
| 55 | 65.97401-0050 | [1] | CLIP;PIPE | |
| 7 | 65.91710-0001 | [2] | .. RING;STOPPER | |
| 8 | 65.90020-0066A | [14] | . BOLT;BRG CAP | |
| 9 | 65.04410-0007A | [1] | BUSH;CAM SHAFT |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
