4612410 Oil Seal HITACHI Excavator Spare Parts For ZX40U-5A ZX48U-3 ZX50U-2
- 4612410 Oil Seal HITACHI Excavator Spare Parts Fitting For ZX40U-5A ZX48U-3 ZX50U-2
- Specifiion
| egory | T.Mission |
| Name | Oil Seal |
| Parts No | 4612410 |
| Machine Model | ZX40U-5A ZX48U-3 ZX50U-2 ZX52U-3F ZX55UR-2 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Compatible models
EXCAVATORS ZX40U-2 ZX40U-3 ZX40U-3U ZX40U-5A ZX48U-3 ZX48U-3F ZX50U-2 ZX50U-3 ZX50U-3F ZX50U-3U ZX50U-5A ZX50U-5N ZX52U-3 ZX52U-3F ZX55UR-2 ZX55UR-3 ZX55UR-3D ZX60-HCMC ZX60USB-3 ZX60USB-3F ZX60USBNA-3 Hitachi
- More other seal parts fit for HITACHI machine
| 4706880 SEAL;RUBBER |
| ZX27-3, ZX30UR-2, ZX30UR-2U, ZX30UR-3, ZX40UR-2, ZX40UR-2D, ZX40UR-2DU, ZX40UR-2U, ZX40UR-3, ZX40UR-3D, ZX55UR-2, ZX55UR-2D, ZX55UR-2DU, ZX55UR-2U, ZX55UR-3, ZX55UR-3D |
| 0894206 SEAL;CUSHION |
| ZX200-3, ZX225USR-3, ZX240-3, ZX30UR-2, ZX330-3, ZX40U-2, ZX40U-3, ZX40U-3U, ZX40UR-2, ZX40UR-2D, ZX450-3, ZX48U-3, ZX48U-3F, ZX50U-2, ZX55UR-2, ZX55UR-2D, ZX55UR-3, ZX55UR-3D, ZX60USB-3, ZX60USB-3F, ... |
| 0863305 SEAL;CUSHION |
| ZX60USB-3, ZX60USB-3F, ZX60USBNA-3, ZX65USB-3F, ZX70, ZX75UR, ZX75UR-3, ZX75US-3, ZX75US-A, ZX80LCK, ZX80SB-HCME, ZX85USB-3-HCME |
| 0951003 SEAL;DUST |
| ZX40U-2, ZX40U-3, ZX40U-3U, ZX48U-3, ZX48U-3F, ZX50U-2, ZX50U-3, ZX50U-3F, ZX50U-3U, ZX52U-3, ZX52U-3F, ZX55UR-2, ZX55UR-3, ZX55UR-3D |
| 4618042 SEAL |
| ZX27U-2, ZX27U-3, ZX27U-3F, ZX29U-3, ZX29U-3F, ZX30U, ZX30U-2, ZX30U-3, ZX30U-3F, ZX30UR-2, ZX30UR-2U, ZX30UR-3, ZX33U-3, ZX33U-3F, ZX35B, ZX35U, ZX35U-2, ZX35U-3, ZX35U-3F, ZX38U-3, ZX38U-3F, ZX40U, ... |
| 22190-160002 SEAL WASHER 16S |
| ZX17U-2, ZX17UNA-2, ZX60USB-3F, ZX65USB-3F |
| 22190-120002 SEAL WASHER 12 |
| ZX17U-2, ZX17UNA-2, ZX30U-3F, ZX33U-3F, ZX35U-3F, ZX38U-3F, ZX48U-3F, ZX50U-3F, ZX52U-3F, ZX60USB-3F, ZX65USB-3F |
| 22190-080002 SEAL WASHER 8S |
| ZX17U-2, ZX17UNA-2, ZX30U-3F, ZX33U-3F, ZX35U-3F, ZX38U-3F, ZX48U-3F, ZX50U-3F, ZX52U-3F, ZX60USB-3F, ZX65USB-3F |
| 4718579 SEAL |
| ZX40U-5A, ZX48U-5A, ZX50U-5A |
| 22190-220002 SEAL WASHER 22S |
| ZX30U-3F, ZX33U-3F, ZX35U-3F, ZX38U-3F, ZX48U-3F, ZX50U-3F, ZX52U-3F, ZX60USB-3F, ZX65USB-3F |
| 124160-11340 SEAL, VALVE STEM(INT |
| ZX60USB-3F, ZX65USB-3F |
| 4718580 SEAL;DUST |
| ZX40U-5A, ZX48U-5A, ZX50U-5A |
| 4511249 SEAL;OIL |
| UH06D, UH06DT, UH07, UH09 |

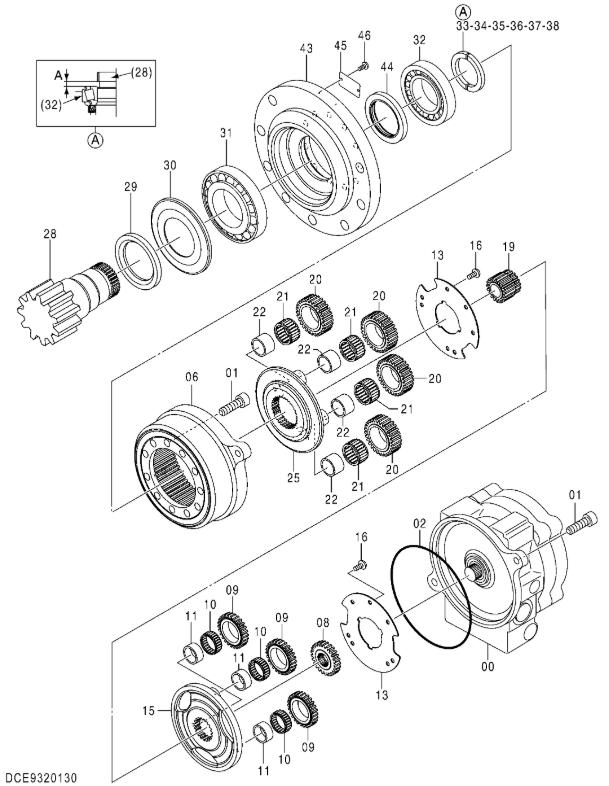

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 9320130 | [1] | SWING-DEVICE | I YD60001938 (for assembly of machine) | |
| YD60001938 | [1] | SWING-DEVICE | (for transportation/ Without MOTOR;OIL) | |
| 0 | 4720209 | [1] | MOTOR;OIL | |
| 1 | M341230 | [13] | BOLT;SOCKET | |
| 2 | 4608324 | [1] | O-RING | |
| 6 | 3100651 | [1] | GEAR;RING | |
| 8 | 3100652 | [1] | GEAR;SUN | |
| 9 | 3100653 | [3] | GEAR;PLANETARY | |
| 10 | 4612409 | [3] | BRG.;NEEDLE | |
| 11 | 4612408 | [3] | RING;INNER | |
| 13 | 4605112 | [2] | PLATE | |
| 15 | 2050715 | [1] | CARRIER | |
| 16 | +++++++ | [7] | BOLT | |
| 19 | 3100654 | [1] | GEAR;SUN | |
| 20 | 3098504 | [4] | GEAR;PLANETARY | |
| 21 | 4605114 | [4] | BRG.;NEEDLE | |
| 22 | 4605115 | [4] | RING;INNER | |
| 25 | YD00001454 | [1] | CARRIER | |
| 28 | 3100655 | [1] | SHAFT;PROP. | |
| 29 | 4611615 | [1] | SPACER | |
| 30 | 4613099 | [1] | SPRING;PLATE | |
| 31 | 4612424 | [1] | BRG.;ROL. | |
| 32 | 4612425 | [1] | BRG.;ROL. | |
| 33 | 4613141 | [1] | WASHER | (The clearans A is 6.54mm or more to 6.65mm or less) |
| 34 | 4613142 | [1] | WASHER | (The clearans A is 6.66mm or more to 6.80mm or less) |
| 35 | 4613143 | [1] | WASHER | (The clearans A is 6.81mm or more to 6.95mm or less) |
| 36 | 4613144 | [1] | WASHER | (The clearans A is 6.96mm or more to 7.10mm or less) |
| 37 | 4613145 | [1] | WASHER | (The clearans A is 7.11mm or more to 7.25mm or less) |
| 38 | 4613146 | [1] | WASHER | (The clearans A is 7.26mm or more to 7.40mm or less) |
| 43 | YD00000577 | [1] | HOUSING | |
| 44 | 4612410 | [1] | SEAL;OIL | |
| 45 | ++++++++++ | [1] | NAME-PLATE | |
| 46 | M492564 | [2] | SCREW;DRIVE |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
