7834-41-2000 7834-41-2002 7834-41-3002 7834-41-3003 Throttle Motor KOMATSU Excavator Spare Parts For PC160LC
- 7834-41-2000 7834-41-2002 7834-41-3002 7834-41-3003 Throttle Motor KOMATSU Excavator Spare Parts For PC160LC
- Specifiion
| Category | Fuel Control |
| Name | Throttle Motor |
| Parts No |
7834-41-2003 7834-41-3002 7834-41-2002 7834-40-2000 7834-41-2001 |
| Machine Model | PC160 PC200 PC220 PC228 PC228US PC270 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Function
| Engine Speed Control: Receives electrical signals from the cab’s throttle lever/controller and converts them into mechanical rotation. It adjusts the fuel injection pump rack or throttle linkage to set engine RPM (idle to full power). |
| Auto Speed Regulation: Works with the ECU (Engine Control Unit) to maintain stable RPM under changing loads. For example, it automatically increases throttle when digging hard rock to prevent stalling, and reduces it when the load is light to save fuel. |
| Precision Position Feedback: Integrates a potentiometer (position sensor) that sends real-time feedback on the throttle’s actual position to the controller, ensuring closed-loop accuracy. |
- Key features & benefits
| Direct-fit replacement: No modifications are needed for installation; it replaces the original motor exactly. |
| High precision: Stepper motor design allows for extremely accurate and repeatable throttle positioning. |
| Heavy-duty construction: Built to withstand the harsh vibration, dust, and temperature conditions of construction sites. |
| Reliable performance: Ensures stable engine speed control, which is critical for smooth operation of hydraulic systems and attachments. |
| Aftermarket availability: Widely available as a replacement part with typical warranties of 6 months to 1 year. |
- Compatible models
BULLDOZERS D275A
EXCAVATORS PC160 PC200 PC220 PC228 PC228US PC270
MOBILE CRUSHERS AND RECYCLERS BZ210 Komatsu
- More other motor parts fit for KOMATSU machine
| 21Y-60-21210 MOTOR ASS'Y |
| BZ210, PC128UU |
| 706-7G-01041 MOTOR ASS'Y |
| PC200, PC210, PC220, PC230NHD, PC270, PC290 |
| 7834-41-2001 MOTOR ASS'Y |
| BP500, BR380JG, BZ210, D275A, PC130, PC160, PC180, PC200, PC200LL, PC200SC, PC210, PC220, PC220LL, PC228, PC228US, PC230, PC230NHD, PC240, PC270, PC270LL, PC290, PC308, PW160, PW200, PW220 |
| 7834-41-2000 MOTOR ASS'Y |
| BZ210, D275A, PC160, PC180, PC200, PC210, PC220, PC228, PC228US, PC230, PC230NHD, PC240, PC270, PC290, PC308, PW200, PW220 |
| 7834-41-2002 MOTOR ASS'Y |
| BR300S, BR380JG, BZ210, D61EX, D61PX, PC130, PC160, PC200, PC220, PC228, PC228US, PC270, PC290, PW160, PW180, PW200, PW220 |
| 21K-26-B7410 MOTOR SHAFT ASS'Y (K4) |
| PC160 |
| 195-911-4660 MOTOR ASS'Y |
| D155C, D275A, D275AX, D355A, D375A, D475A, D475ASD, D85C, PC200, PC220, PC300, PC400 |
| TZ979B200000FG MOTOR ASS'Y |
| BR100J, BR100JG, BR100RG, BZ200, BZ210, PC60, PC70, PC75US, PC78US |
| YM12995377019 MOTOR, STARTER |
| WB140, WB140PS, WB150, WB150AWS, WB150PS, WB91R, WB93R, WB97R, WB97S |
| YM12995377010 MOTOR, STARTER |
| 4D98E, WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB91R, WB93R, WB97R, WB97S |
| 706-8L-01010 MOTOR ASS'Y |
| PC550, PC600, PC650 |
| YM172164-73311 MOTOR |
| PC40FR |
| YM172164-73330 MOTOR |
| PC40FR |
| 195-Z11-8530 MOTOR ASS'Y,R.H. |
| D155A, D275A, D375A, D61E, D65E |
| 706-8J-01411 MOTOR, TRAVEL R.H |
| PC390, PC390LL, PC400, PC450, PC490 |
| 890000023 MOTOR AND VALVE A. |
| 212 |
| 871120116 MOTOR, ASSY. |
| SK04 |
| YM172421-73300 MOTOR ASS'Y,DRIVING |
| PC20FR |
| 37A-942-2010 MOTOR FAN |
| CK30, CK35, SK1020, SK1026, SK815, SK818, SK820 |
| 706-73-01121 MOTOR ASS'Y |
| PC100, PC100L, PC120, PC130, PW130 |

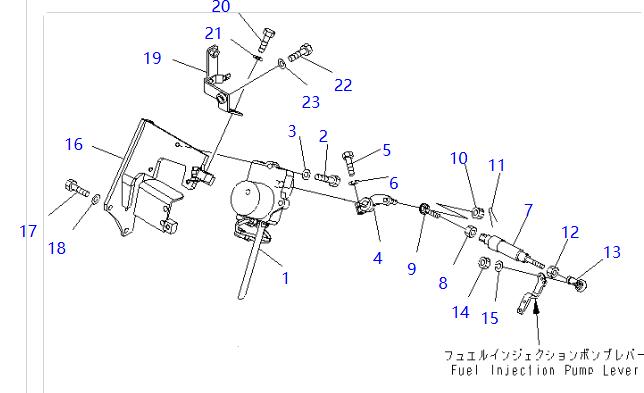

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7834-41-2003 | [1] | MOTOR ASS'Y Komatsu OEM | 3.14 kg. |
| ["SN: B20926-UP"] analogs:["7834413002", "7834412002", "7834402000", "7834412001", "7834402002", "7834412000", "7834413000", "7834402001", "7834413001", "7834402003", "7834413003", "7834402004"] | ||||
| 7834-41-2002 | [1] | MOTOR ASS'Y Komatsu OEM | 3.14 kg. | |
| ["SN: B20031-B20925"] analogs:["7834413002", "7834402000", "7834412001", "7834402002", "7834412000", "7834413000", "7834402001", "7834413001", "7834402003", "7834413003", "7834412003", "7834402004"] |1. | ||||
| 7834-41-2001 | [1] | MOTOR ASS'Y Komatsu OEM | 3.14 kg. | |
| ["SN: B20001-B20030"] analogs:["7834413002", "7834412002", "7834402000", "7834402002", "7834412000", "7834413000", "7834402001", "7834413001", "7834402003", "7834413003", "7834412003", "7834402004"] |1. | ||||
| 2 | 01010-81040 | [3] | BOLT Komatsu | 0.288 kg. |
| ["SN: B20001-UP"] analogs:["0101051040", "R0101081040"] | ||||
| 3 | 01643-31032 | [3] | WASHER Komatsu | 0.054 kg. |
| ["SN: B20001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 4 | 203-43-61120 | [1] | LEVER Komatsu China | |
| ["SN: B20001-UP"] | ||||
| 5 | 01010-81030 | [1] | BOLT Komatsu OEM | 0.03 kg. |
| ["SN: B20001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 6 | 01602-51032 | [1] | WASHER Komatsu China | |
| ["SN: B20298-UP"] | ||||
| 01602-21030 | [1] | WASHER Komatsu | 0.004 kg. | |
| ["SN: B20001-B20297"] analogs:["YM22217100000"] |6. | ||||
| 7 | 203-43-62121 | [1] | SPRING ASS'Y Komatsu | 0.6 kg. |
| ["SN: B20001-UP"] analogs:["2034362120"] | ||||
| 8 | 01582-11008 | [1] | NUT Komatsu | 0.01 kg. |
| ["SN: B20001-UP"] analogs:["0158201008", "801750002"] | ||||
| 9 | 04252-21061 | [1] | END,ROD Komatsu | 0.056 kg. |
| ["SN: B20001-UP"] analogs:["0425201061"] | ||||
| 10 | 01593-31008 | [1] | NUT Komatsu | 0.01 kg. |
| ["SN: B20001-UP"] analogs:["0159311008", "0159301008"] | ||||
| 11 | 04050-12018 | [1] | PIN Komatsu | 0.001 kg. |
| ["SN: B20001-UP"] analogs:["0405002018"] | ||||
| 13 | 20Y-43-12180 | [1] | JOINT Komatsu | 0.1 kg. |
| ["SN: B20001-UP"] | ||||
| 14 | 01580-10605 | [1] | NUT Komatsu | 0.01 kg. |
| ["SN: B20001-UP"] analogs:["21D0921430", "M018200600006", "801920103"] | ||||
| 15 | 01602-20619 | [1] | WASHER Komatsu | 0.004 kg. |
| ["SN: B20001-UP"] analogs:["802150506"] | ||||
| 16 | 21K-43-71110 | [1] | BRACKET Komatsu China | |
| ["SN: B20001-UP"] | ||||
| 17 | 01010-81050 | [2] | BOLT Komatsu | 0.038 kg. |
| ["SN: B20001-UP"] analogs:["801015559", "0101051050"] | ||||
| 19 | 21K-43-71121 | [1] | BRACKET Komatsu China | |
| ["SN: B20001-UP"] | ||||
| 20 | 01010-81225 | [1] | BOLT Komatsu | 0.074 kg. |
| ["SN: B20001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 21 | 01643-31232 | [1] | WASHER Komatsu | 0.027 kg. |
| ["SN: B20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 22 | 01050-81230 | [1] | BOLT Komatsu | 0.043 kg. |
| ["SN: B20001-UP"] |
