421-46-12331 4214612331 Bushing For KOMATSU 545 WA350 WA380 WA400 WA420 WA430 WA450
-
421-46-12331 4214612331 Bushing Fit For KOMATSU 545 WA350 WA380 WA400 WA420 WA430 WA450
-
Specifiion
| Appliion | KOMATSU Excavator Spare Parts |
| Name | Bushing |
| Parts No | 421-46-12331 4214612331 |
| Model |
545 WA350 WA380 WA400 WA420 WA430 WA450 WA450L WA470 WA480 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
COMPACTORS WF450 WF450T
WHEEL LOADERS 545 WA350 WA380 WA400 WA420 WA430 WA450 WA450L WA470 WA480
- More bushing parts to KOMATSU machine
| 707-52-90720 BUSHING |
| BP500, PC200, PC200CA, PC200EL, PC200EN, PC200LL, PC200SC, PC200Z, PC210, PC240, WA470 |
| 707-52-11210 BUSHING |
| 558, 568, D475A, D575A, PC650, WA400, WA420, WA500, WA600 |
| 6221-31-3130 BUSHING |
| DCA, EGS160, EGS190, PC300, S6D108, S6D108E, SA6D108, SA6D108E, SAA6D108E, WA380 |
| 07177-02525 BUSHING |
| 538, BR200T, BR350JG, BR480RG, BR550JG, BR580JG, BZ200, D20A, D20AG, D21A, D21AG, FB10M, FB13M, FB15M, FB18M, FD10/15, FD10C, FD10LT, FD15, FD18, FG10, FG10/15, FG15H, FG18, FG18H, GD305A, GD355A, GD4... |
| 07177-04530 BUSHING |
| 507, 510, 518, 538, 542, BC100, CD30R, D20Q, D20QG, D20S, D21A, D21P, D21Q, D21QG, D21S, D30S, D31A, D31AM, D31E, D31EX, D31P, D31PL, D31PLL, D31PX, D31Q, D31S, D31SM, D37EX, D37PX, D39EX, PC45MR, WA5... |
| 07177-09035 BUSHING |
| 530, 530B, 538, 540, 540B, 542, D150A, D155A, D155W, D275A, D355A, D375A, D50A, D50P, D50PL, D50S, D53A, D53P |
| 6150-21-1490 BUSHING,CAMSHAFT |
| 6D125, 6D125E, SAA6D125E |

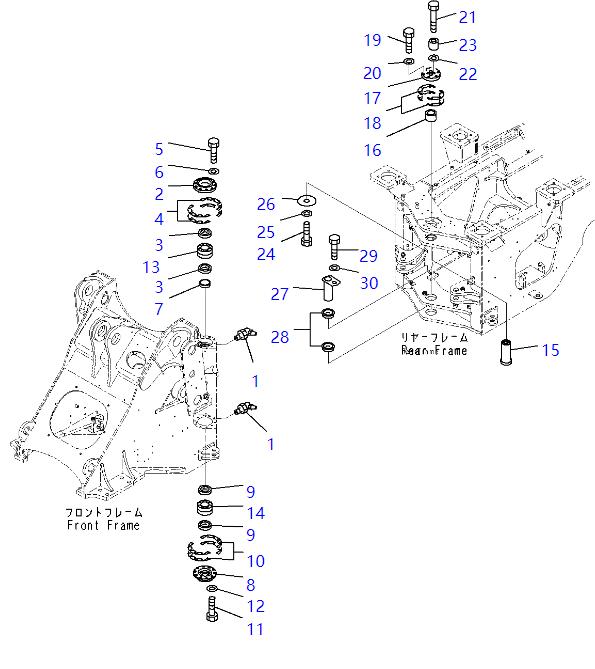

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 07020-00675 | [2] | Fitting, Grease Komatsu China | 0.011 kg. |
| ["SN: 65949-UP"] analogs:["21D0989220", "37A099G004"] | ||||
| 2 | 421-46-11710 | [1] | Retainer Komatsu OEM | 2.2 kg. |
| ["SN: 65949-UP"] | ||||
| 3 | 421-09-11310 | [2] | Seal, Dust Komatsu OEM | 0.37 kg. |
| ["SN: 65949-UP"] analogs:["4240911310"] | ||||
| 4 | 421-46-00030 | [1] | Shim Assembly Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 4. | 421-46-11372 | [20] | Shim, T=0.1mm Komatsu | 0.01 kg. |
| ["SN: 65949-UP"] | ||||
| 4. | 421-46-11382 | [4] | Shim, T=0.5mm Komatsu | 0.02 kg. |
| ["SN: 65949-UP"] | ||||
| 4. | 423-46-41390 | [10] | Shim, T=1.0mm Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 5 | 01010-81240 | [10] | Bolt Komatsu | 0.052 kg. |
| ["SN: 65949-UP"] analogs:["801015573", "0101051240"] | ||||
| 6 | 01643-31232 | [10] | Washer Komatsu | 0.027 kg. |
| ["SN: 65949-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 7 | 424-46-11171 | [1] | Spacer Komatsu OEM | 0.4 kg. |
| ["SN: 65949-UP"] | ||||
| 8 | 421-46-11470 | [1] | Retainer Komatsu OEM | 2.2 kg. |
| ["SN: 65949-UP"] | ||||
| 9 | 07011-00080 | [2] | Seal, Oil Komatsu | 0.1 kg. |
| ["SN: 65949-UP"] | ||||
| 10 | 421-46-00040 | [1] | Shim Assembly Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 11 | 01010-81235 | [10] | Bolt Komatsu | 0.048 kg. |
| ["SN: 65949-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 13 | 421-46-11361 | [1] | Bearing Komatsu OEM | 3.71 kg. |
| ["SN: 65949-UP"] | ||||
| 15 | 424-46-11183 | [1] | Pin Komatsu | 7.27 kg. |
| ["SN: 65949-UP"] | ||||
| 16 | 424-46-11160 | [1] | Spacer Komatsu OEM | 0.9 kg. |
| ["SN: 65949-UP"] | ||||
| 17 | 421-46-11421 | [1] | Cover Komatsu OEM | 3.5 kg. |
| ["SN: 65949-UP"] | ||||
| 18 | 421-46-00050 | [1] | Shim Assembly Komatsu | 0.375 kg. |
| ["SN: 65949-UP"] | ||||
| 18. | 421-46-11431 | [10] | Shim, T=0.2mm Komatsu | 0.06 kg. |
| ["SN: 65949-UP"] | ||||
| 18. | 421-46-11441 | [8] | Shim, T=0.5mm Komatsu | 0.2 kg. |
| ["SN: 65949-UP"] | ||||
| 18. | 421-46-11451 | [4] | Shim, T=1.0mm Komatsu | 1 kg. |
| ["SN: 65949-UP"] | ||||
| 19 | 01010-81250 | [6] | Bolt Komatsu | 0.061 kg. |
| ["SN: 65949-UP"] analogs:["0101051250"] | ||||
| 21 | 01011-61625 | [4] | Bolt Komatsu | 0.227 kg. |
| ["SN: 65949-UP"] analogs:["0101131625", "0101181625"] | ||||
| 22 | 01643-31645 | [4] | Washer Komatsu | 0.072 kg. |
| ["SN: 65949-UP"] analogs:["802170005", "0164301645"] | ||||
| 23 | 423-46-41430 | [4] | Spacer Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 24 | 01010-81630 | [1] | Bolt Komatsu | 0.081 kg. |
| ["SN: 65949-UP"] analogs:["0101061630", "0101051630", "0101031630"] | ||||
| 26 | 419-70-11340 | [1] | Plate Komatsu | 0.35 kg. |
| ["SN: 65949-UP"] | ||||
| 27 | 423-46-41190 | [1] | Pin Komatsu | 9.29 kg. |
| ["SN: 66038-UP"] analogs:["4214611461"] | ||||
| 27 | 421-46-11462 | [1] | Pin Komatsu | 9.5 kg. |
| ["SN: 65949-66037", "SCC: B1"] | ||||
| 28 | 423-46-42330 | [2] | Bushing Komatsu China | |
| ["SN: 66088-UP"] | ||||
| 28 | 421-46-12331 | [2] | Bushing Komatsu OEM | 0.52 kg. |
| ["SN: 65949-66087", "SCC: A2"] | ||||
| 29 | 01010-81625 | [1] | Bolt Komatsu | 0.073 kg. |
| ["SN: 65949-UP"] analogs:["0101061625"] | ||||
| 30 | 421-70-11280 | [1] | Washer Komatsu | 0.072 kg. |
| ["SN: 65949-UP"] | ||||
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
