707-76-65120 7077665120 Bushing For KOMATSU Excavator HM250 HM300 HM300TN HM350
- 707-76-65120 7077665120 Bushing Fitting For KOMATSU Excavator HM250 HM300 HM300TN HM350
- Specifiion
| egory | KOMATSU Excavator Spare Parts |
| Name | Bushing |
| Parts No | 707-76-65120 7077665120 |
| Machine Model | HM250 HM300 HM300TN HM350 HM400 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
DUMP TRUCKS HM250 HM300 HM300TN HM350 HM400
WHEEL LOADERS WA500 Komatsu

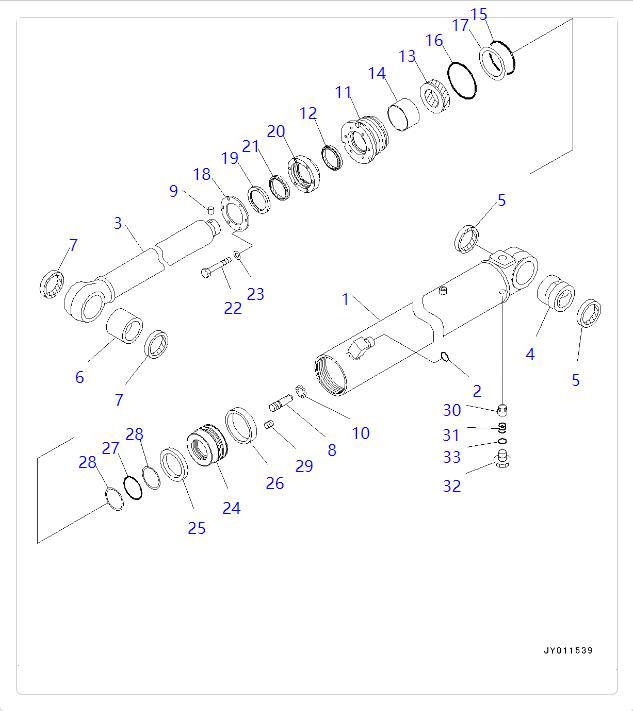

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 707-00-0H980 | [2] | Cylinder Assembly Komatsu China | ||
| ["SN: 2001-UP"] |$0. | ||||
| 1. | 707-11-10J00 | [1] | Cylinder Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 2. | 02896-11015 | [1] | O-ring, (Kit : K06) Komatsu | 0.21 kg. |
| ["SN: 2001-UP"] analogs:["21D0969770", "855051016"] | ||||
| 3. | 721-58-65080 | [1] | Rod Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 4. | 707-76-65120 | [1] | Bushing Komatsu | 0.712 kg. |
| ["SN: 2001-UP"] | ||||
| 5. | 417-09-11120 | [2] | Seal, Dust, (Kit : K06) Komatsu | 0.07 kg. |
| ["SN: 2001-UP"] analogs:["4170911110"] | ||||
| 8. | 707-71-70140 | [1] | Plunger Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 9. | 707-71-91270 | [1] | Cap Komatsu | 0.001 kg. |
| ["SN: 2001-UP"] | ||||
| 10. | 04260-00635 | [9] | Ball, Steel Komatsu | 0.012 kg. |
| ["SN: 2001-UP"] analogs:["805750022", "YM24190080001", "21D0986810"] | ||||
| 11. | 707-29-10A30 | [1] | Head, Cylinder Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 12. | 707-56-65540 | [1] | Seal, Dust, (Kit : K06) Komatsu | 0.025 kg. |
| ["SN: 2001-UP"] | ||||
| 13. | 707-51-65211 | [1] | Packing, Rod, (Kit : K06) Komatsu China | 0.03 kg. |
| ["SN: 2001-UP"] | ||||
| 14. | 07177-06530 | [1] | Bushing Komatsu | 0.122 kg. |
| ["SN: 2001-UP"] analogs:["7075215410"] | ||||
| 15. | 07000-12105 | [1] | O-ring, (Kit : K06) Komatsu OEM | 0.004 kg. |
| ["SN: 2001-UP"] analogs:["0700002105"] | ||||
| 16. | 07000-12100 | [1] | O-ring, (Kit : K06) Komatsu China | 0.01 kg. |
| ["SN: 2001-UP"] analogs:["0700002100"] | ||||
| 17. | 707-35-52360 | [1] | Ring, Back-up, (Kit : K06) Komatsu | 0.003 kg. |
| ["SN: 2001-UP"] | ||||
| 18. | 707-88-05650 | [1] | Plate Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 19. | 707-88-05630 | [1] | Ring Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 20. | 707-88-05640 | [1] | Collar Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 21. | 707-56-65650 | [1] | Seal, Dust, (Kit : K06) Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 22. | 01010-80840 | [6] | Bolt Komatsu | 0.021 kg. |
| ["SN: 2001-UP"] analogs:["0101050840"] | ||||
| 23. | 01643-50823 | [6] | Washer Komatsu | 0.01 kg. |
| ["SN: 2001-UP"] analogs:["0164370823"] | ||||
| 24. | 721-36-10050 | [1] | Piston Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 25. | 707-44-10280 | [1] | Ring, Piston, (Kit : K06) Komatsu | 0.12 kg. |
| ["SN: 2001-UP"] | ||||
| 26. | 707-39-10510 | [1] | Ring, Wear, (Kit : K06) Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 27. | 07000-15065 | [1] | O-ring, (Kit : K06) Komatsu | 0.008 kg. |
| ["SN: 2001-UP"] | ||||
| 28. | 707-35-90380 | [2] | Ring, Back-up, (Kit : K06) Komatsu China | |
| ["SN: 2001-UP"] | ||||
| 29. | 01310-01216 | [1] | Screw Komatsu | 0.02 kg. |
| ["SN: 2001-UP"] analogs:["0132001216", "0131021216"] | ||||
| 30. | 707-83-13010 | [1] | Valve Komatsu | 0.021 kg. |
| ["SN: 2001-UP"] | ||||
| 31. | 07750-01628 | [1] | Spring Komatsu | 0.002 kg. |
| ["SN: 2001-UP"] | ||||
| 32. | 707-87-14070 | [1] | Plug Komatsu | 0.07 kg. |
| ["SN: 2001-UP"] | ||||
| 33. | 07002-12034 | [1] | O-ring, (Kit : K06) Komatsu China | 0.94 kg. |
| ["SN: 2001-UP"] analogs:["0700002034", "0700202034", "0700012034"] | ||||
- More other bushing parts applied to KOMASTU equipment
| 707-52-91551 BUSHING |
| WA1200, WA800, WA900 |
| 230-71-12310 BUSHING |
| GD30 |
| 22J-971-2660 BUSHING,CHISEL |
| BUCKET, PC18MR |
| 22J-971-2650 BUSHING,CHISEL |
| BUCKET, PC18MR |
| 381-981871-1 BUSHING |
| JH65C, JH65CH, JH65CV, JH80C |
| 565-22-14441 BUSHING |
| HD180, HD200 |
| 21P-60-K2130 BUSHING |
| PC150, PC150LGP, PC160, PC180, PC200EL, PC200EN |
| 209-70-12150 BUSHING |
| PC650 |
| 201-940-1190 BUSHING |
| 10, PC60 |
| 21W-70-41360 BUSHING |
| PC78MR, PC78US, PC78UU, PC88MR, PW98MR |
| 230-71-12340 BUSHING |
| GD30 |
| 198-78-11190 BUSHING |
| D455A |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
