708-2H-23311 7082H23311 Piston Sub Fitting For KOMATSU Excavator PC1100 PC1100SE PC1100SP
- 708-2H-23311 7082H23311 Piston Sub Fitting For KOMATSU Excavator PC1100 PC1100SE PC1100SP
- Specifiion
| egory | Excavator Hydraulic Pump |
| Name | Piston sub |
| Parts No | 708-2H-23311 7082H23311 |
| Machine Model |
PC1100 PC1100SE PC1100SP PC1250 PC1250SE PC1250SP PC1800 PC300 PC300SC PC340 PC350 PC380 PC400 PC400ST PC450 PC750 PC750SE PC800 PC800SE |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
BULLDOZERS D155AX
CRAWLER CARRIERS CD110R
EXCAVATORS PC1100 PC1100SE PC1100SP PC1250 PC1250SE PC1250SP PC1800 PC300 PC300SC PC340 PC350 PC380 PC400 PC400ST PC450 PC750 PC750SE PC800 PC800SE
MOBILE CRUSHERS AND RECYCLERS BR200T BR300S BR480RG BR500JG BR550JG

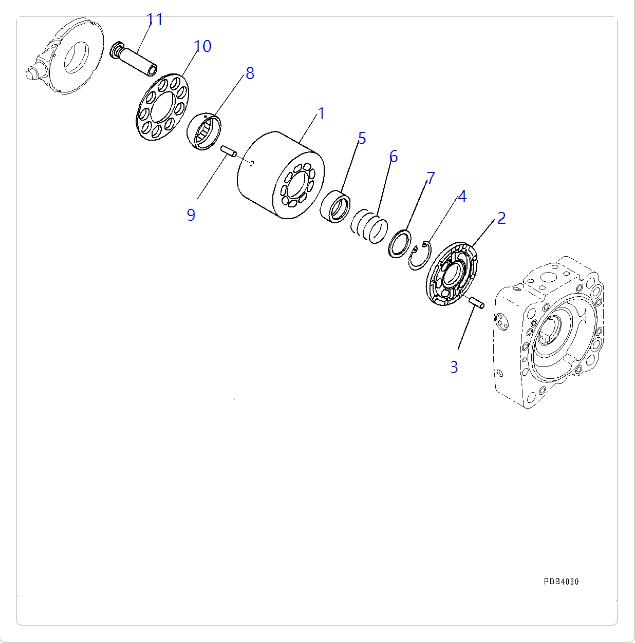

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 708-2H-00440 | [1] | Pump Assembly Komatsu | 239 kg. | |
| ["SN: 30158-UP"] |$0. | ||||
| 708-2H-01440 | [1] | Pump Subassembly Komatsu China | ||
| ["SN: 30158-UP", "SCC: C2"] |$1. | ||||
| 708-2H-04720 | [1] | Block Assembly,Rear Komatsu China | ||
| ["SN: 30158-UP", "SCC: C2"] |$2. | ||||
| 3 | 708-18-13230 | [1] | Pin Komatsu | 0.01 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 4 | 04065-05820 | [1] | Ring, Snap Komatsu | 0.01 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 5 | 708-2H-23130 | [1] | Seat Komatsu | 0.157 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 6 | 708-2H-23151 | [1] | Spring Komatsu | 0.21 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 7 | 708-2H-23141 | [1] | Seat Komatsu | 0.03 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 8 | 708-2H-23350 | [1] | Guide, Retainer, Retainer Komatsu | 0.24 kg. |
| ["SN: 30158-UP", "SCC: C2"] analogs:["R7082H23350"] | ||||
| 9 | 708-2H-23360 | [3] | Pin Komatsu | 0.006 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 10 | 708-2H-23340 | [1] | Retainer, Shoe Komatsu | 0.37 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
| 11 | 708-2H-23311 | [9] | Piston Subassembly Komatsu | 0.32 kg. |
| ["SN: 30158-UP", "SCC: C2"] | ||||
- More other piston parts applied to KOMASTU equipment
| 708-8K-14141 PISTON |
| BR200S, PC250, PC300, PC300HD, PC310, PC400, PC400HD, PC410 |
| 419-44-12510 PISTON |
| 512, 518, JT150, WA100, WA100M, WA100SS, WA100SSS, WA120, WA120L, WA150, WA180, WA180L, WA180PT, WA200, WA250, WA250L, WA250PT, WA300, WA320, WA50, WA70, WA80 |
| MY781-8222-00 PISTON ASS'Y |
| FD20/25, FD20H/25H, FD30, FD30H, FG20/25, FG20H/25H, FG30, FG30H |
| 423-33-11121 PISTON |
| WA350, WA380 |
| YM729105-22951 PISTON RING ASS'Y,0.25MM (OS) |
| S3D84 |
| 708-8H-14180 PISTON |
| CS360, CS360SD, PC150HD, PC150NHD, PC180, PC180L, PC200, PC210, PC220, PC240 |
| 232-43-00110 PISTON ASS'Y |
| GD30, GD31, GD37 |
| 568-15-12750 PISTON |
| HD680 |
| 702-13-11440 PISTON |
| WS23S |
| 175-15-42769 PISTON |
| D155A |
| 232-43-00111 PISTON ASS'Y |
| GD28AC, GD30, GD300A, GD31, GD31RC, GD37, GD405A, GD500R, GD505A, GD600R, GD605A, GD655A, GS360 |
| 234-43-00261 PISTON ASS'Y (KIT) |
| GD705R |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
