708-3S-14290 7083S14290 Piston Fitting For KOMATSU Excavator PC27MR PC30MR PC35MR
- 708-3S-14290 7083S14290 Piston Fitting For KOMATSU Excavator PC27MR PC30MR PC35MR
- Specifiion
| egory | Excavator Hydraulic Pump |
| Name | Piston |
| Parts No | 708-3S-14290 7083S14290 |
| Machine Model |
PC27MR PC30MR PC35MR PC45MR PC490 PC55MR |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
BULLDOZERS D155AX D275A D31EX D31PX D375A D37EX D37PX D39EX D39PX D475A D475ASD D65EX D65PX D65WX
DUMP TRUCKS HM300 HM400
EXCAVATORS PC27MR PC30MR PC35MR PC45MR PC490 PC55MR
GRADERS GD755
WHEEL DOZERS WD600
WHEEL LOADERS WA380 WA430 WA470 WA480 WA500 WA600

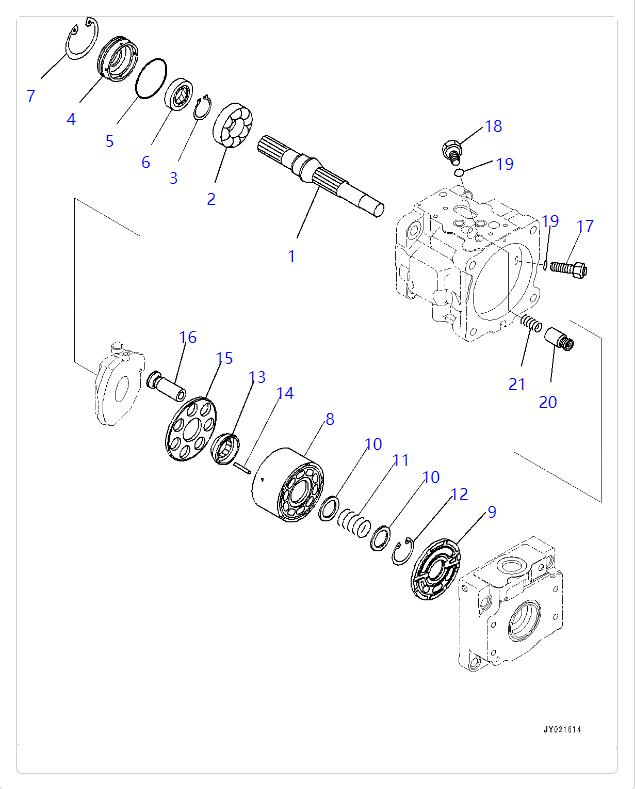

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1T-00552 | [1] | Pump Assembly Komatsu China | ||
| ["SN: 3882-UP"] |$0. | ||||
| 708-1T-01552 | [1] | Pump Subassembly Komatsu China | ||
| ["SN: 3882-UP", "SCC: C2"] |$1. | ||||
| 1 | 708-1T-12171 | [1] | Shaft Komatsu China | |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 2 | 708-3S-12210 | [1] | Bearing Komatsu | 0.4 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 3 | 708-21-12840 | [1] | Ring, Snap Komatsu China | |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 4 | 708-3S-12140 | [1] | Holder Komatsu | 0.215 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 5 | 708-1S-12350 | [1] | O-ring Komatsu | 0.003 kg. |
| ["SN: 3882-UP", "SCC: C2"] | ||||
| 5 | 207-09-11140 | [1] | O-ring Komatsu | 0.002 kg. |
| ["SN: 3001-3881", "SCC: C2"] | ||||
| 6 | 708-7T-12330 | [1] | Seal, Oil Komatsu | 0.042 kg. |
| ["SN: 3882-UP", "SCC: C2"] | ||||
| 6 | 708-3S-12150 | [1] | Seal, Oil Komatsu | 0.02 kg. |
| ["SN: 3001-3881", "SCC: C2"] | ||||
| 7 | 04065-06220 | [1] | Ring, Snap Komatsu | 0.013 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 8 | 708-1T-13440 | [1] | Cylinder Block Komatsu China | |
| ["SN: 3882-UP", "SCC: C2"] | ||||
| 8 | 708-1T-13610 | [1] | Cylinder Block Komatsu China | |
| ["SN: 3001-3881", "SCC: C2"] | ||||
| 9 | 708-1T-13450 | [1] | Plate, Valve Komatsu China | |
| ["SN: 3882-UP", "SCC: C2"] | ||||
| 9 | 708-1T-13620 | [1] | Plate, Valve Komatsu China | |
| ["SN: 3001-3881", "SCC: C2"] | ||||
| 10 | 708-1T-13710 | [2] | Spacer Komatsu China | |
| ["SN: 3882-UP", "SCC: C2"] | ||||
| 10 | 708-3S-13160 | [2] | Washer Komatsu China | |
| ["SN: 3001-3881", "SCC: C2"] | ||||
| 11 | 708-3S-13430 | [1] | Spring Komatsu | 0.07 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 12 | 04065-03515 | [1] | Ring, Snap Komatsu | 0.003 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 13 | 708-1S-13370 | [1] | Guide, Retainer Komatsu | 0.045 kg. |
| ["SN: 3882-UP", "SCC: C2"] analogs:["7083S13370", "R7081S13370"] | ||||
| 708-3S-13370 | [1] | Guide, Retainer Komatsu | 0.14 kg. | |
| ["SN: 3001-3881", "SCC: C2"] analogs:["7081S13370"] |$20. | ||||
| 14 | 708-1S-13380 | [3] | Pin Komatsu | 0.06 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 15 | 708-1T-13670 | [1] | Retainer, Shoe Komatsu China | |
| ["SN: 3882-UP", "SCC: C2"] | ||||
| 15 | 708-3S-13410 | [1] | Retainer, Shoe Komatsu | 0.24 kg. |
| ["SN: 3001-3881", "SCC: C2"] | ||||
| 16 | 708-1S-13520 | [10] | Piston Subassembly Komatsu | 0.09 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 17 | 708-3S-14240 | [1] | Plug Komatsu China | |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 18 | 708-3S-14261 | [1] | Plug Komatsu China | |
| ["SN: 3001-UP", "SCC: C2"] | ||||
| 19 | 07002-11223 | [2] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 3001-UP", "SCC: C2"] analogs:["0700201223"] | ||||
| 20 | 708-3S-14290 | [1] | Piston Subassembly Komatsu | 0.087 kg. |
| ["SN: 3882-UP", "SCC: C2"] analogs:["7081S14230", "7083S14250"] | ||||
| 20 | 708-3S-14250 | [1] | Piston Subassembly Komatsu | 0.087 kg. |
| ["SN: 3001-3881", "SCC: C2"] analogs:["7081S14230"] | ||||
| 21 | 708-1S-14241 | [1] | Spring Komatsu | 0.01 kg. |
| ["SN: 3001-UP", "SCC: C2"] | ||||
- More other piston parts applied to KOMASTU equipment
| 708-8K-14141 PISTON |
| BR200S, PC250, PC300, PC300HD, PC310, PC400, PC400HD, PC410 |
| 419-44-12510 PISTON |
| 512, 518, JT150, WA100, WA100M, WA100SS, WA100SSS, WA120, WA120L, WA150, WA180, WA180L, WA180PT, WA200, WA250, WA250L, WA250PT, WA300, WA320, WA50, WA70, WA80 |
| MY781-8222-00 PISTON ASS'Y |
| FD20/25, FD20H/25H, FD30, FD30H, FG20/25, FG20H/25H, FG30, FG30H |
| 423-33-11121 PISTON |
| WA350, WA380 |
| YM729105-22951 PISTON RING ASS'Y,0.25MM (OS) |
| S3D84 |
| 708-8H-14180 PISTON |
| CS360, CS360SD, PC150HD, PC150NHD, PC180, PC180L, PC200, PC210, PC220, PC240 |
| 232-43-00110 PISTON ASS'Y |
| GD30, GD31, GD37 |
| 568-15-12750 PISTON |
| HD680 |
| 702-13-11440 PISTON |
| WS23S |
| 175-15-42769 PISTON |
| D155A |
| 232-43-00111 PISTON ASS'Y |
| GD28AC, GD30, GD300A, GD31, GD31RC, GD37, GD405A, GD500R, GD505A, GD600R, GD605A, GD655A, GS360 |
| 234-43-00261 PISTON ASS'Y (KIT) |
| GD705R |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
