714-12-19711 7141219711 Disc Fitting For KOMATSU WA100 WA120 WA120L WA150 WA180 WA180L
- 714-12-19711 7141219711 Disc Fitting For KOMATSU WA100 WA120 WA120L WA150 WA180 WA180L
- Specifiion
| egory | Excavator Spare Parts |
| Name | Disc |
| Parts No | 714-12-19711 7141219711 |
| Machine Model |
WA100 WA120 WA120L WA150 WA180 WA180L WA180PT WA200 WA250 WA250L WA250PT WA300 WA300L WA320 WA350 WA380 WA380Z WA400 WA430 WA450 WA470 WA480 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
DUMP TRUCKS HM250 HM300 HM300TN
GRADERS GD555 GD655 GD675 GD755 GH320
WHEEL LOADERS WA100 WA120 WA120L WA150 WA180 WA180L WA180PT WA200 WA250 WA250L WA250PT WA300 WA300L WA320 WA350 WA380 WA380Z WA400 WA430 WA450 WA470 WA480
- alog parts list

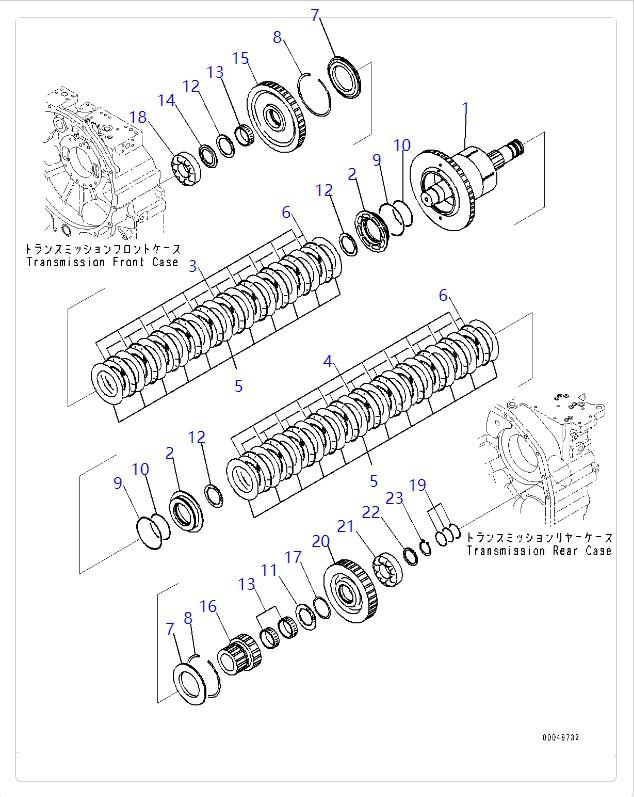

| Pos. | Part No | Qty | Parts name | Comments |
| 56D-13-20002 | [1] | Transmission Assembly Komatsu China | ||
| ["SN: 2001-2854"] |$0. | ||||
| 56D-15-22022 | [1] | Clutch Assembly,Upper Komatsu China | ||
| ["SN: 2001-(101247"] |$1. | ||||
| 1 | 56D-15-22122 | [1] | Shaft and Cylinder Assembly Komatsu China | |
| ["SN: 2855-(101247"] | ||||
| 1 | 56D-15-22121 | [1] | Shaft and Cylinder Assembly Komatsu China | |
| ["SN: 2001-2854"] | ||||
| 2 | 56D-15-12660 | [2] | Piston Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 3 | 714-12-19711 | [10] | Disc, T=2.2mm Komatsu | 0.12 kg. |
| ["SN: 2001-(101247"] analogs:["7141219710"] | ||||
| 4 | 56D-15-29780 | [12] | Disc Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 5 | 714-16-19730 | [24] | Plate, T=1.7mm Komatsu | 0.185 kg. |
| ["SN: 2001-(101247"] analogs:["4191512310"] | ||||
| 6 | 56D-15-12710 | [22] | Spring, Wave Komatsu | 0.01 kg. |
| ["SN: 2001-(101247"] analogs:["4191512133"] | ||||
| 7 | 714-12-12610 | [2] | Plate, End Komatsu | 1.167 kg. |
| ["SN: 2001-(101247"] | ||||
| 8 | 419-15-12140 | [2] | Ring, Snap Komatsu | 0.096 kg. |
| ["SN: 2001-(101247"] | ||||
| 9 | 714-16-19230 | [2] | Seal Ring, (Kit : K01, K02, K03, K04) Komatsu | 0.015 kg. |
| ["SN: 2001-(101247"] | ||||
| 10 | 714-07-19320 | [2] | Seal Ring, (Kit : K01, K02, K03, K04) Komatsu | 0.004 kg. |
| ["SN: 2001-(101247"] | ||||
| 11 | 56D-15-19510 | [1] | Washer, Thrust Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 12 | 714-08-19570 | [3] | Washer, Thrust Komatsu | 0.11 kg. |
| ["SN: 2001-(101247"] analogs:["4191512622"] | ||||
| 13 | 714-23-19431 | [3] | Bearing, Needle Komatsu | 0.14 kg. |
| ["SN: 2001-(101247"] analogs:["4191513151", "4191513150", "7142319430"] | ||||
| 14 | 714-11-12720 | [1] | Spacer Komatsu | 1.7 kg. |
| ["SN: 2001-(101247"] | ||||
| 15 | 56D-15-22431 | [1] | Gear Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 16 | 56D-15-22441 | [1] | Gear Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 17 | 23C-15-52960 | [1] | Spacer Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 18 | 56D-15-29340 | [1] | Bearing Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 19. | 56D-15-29240 | [3] | Seal Ring, (Kit : K01, K02, K03, K04) Komatsu China | |
| ["SN: 2001-(101247"] | ||||
| 20. | 56D-15-22540 | [1] | Gear Komatsu China | |
| ["SN: 2001-@"] | ||||
| 22. | 714-12-12910 | [1] | Spacer Komatsu | 0.06 kg. |
| ["SN: 2001-@"] | ||||
| 23. | 04064-06020 | [1] | Ring, Snap Komatsu China | 0.01 kg. |
| ["SN: 2001-@"] analogs:["0406406020E", "YM22242000600", "R0406406020"] | ||||
- More other disc parts applied to KOMASTU equipment
| 561-86-68500 DISC |
| HD405, HD785 |
| 4569-33-61241 DISC |
| HD785 |
| 287-15-12710 DISC |
| HD460, WS23S |
| 569-15-32721 DISC |
| HD325, HD405, HD465, HD605, WS23S |
| 566-33-11262 DISC |
| HD320, HD325 |
| 141-10-11110 DISC |
| HD200, HD320, HD680, WS16 |
| 6560-01-1750 DISC,PROGRAM |
| SAA6D170E |
| 6560-01-1641 DISC,PROGRAM |
| SA6D170E |
| 6560-01-1631 DISC,PROGRAM |
| SA6D170E |
| 6560-01-1542 DISC,PROGRAM |
| SA6D170E |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
