7720-50-2590 419-15-12290 419-15-12910 Disc KOMATSU Wheel Loader Spare Parts For WA100-3A
- 7720-50-2590 419-15-12290 419-15-12910 Disc KOMATSU Wheel Loader Spare Parts For WA100-3A
- Specifiion
| egory | Transmission |
| Name | Disc |
| Parts No | 7720-50-2590 419-15-12290 419-15-12910 |
| Machine Model | 512 WA100 WA120 WA200 WA250 WA320 WA70 WR11 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Compatible models
WHEEL LOADERS 512 WA100 WA120 WA200 WA250 WA320 WA70 WR11 Komatsu
- More other disc parts fit for KOMATSU machine
| 561-86-68500 DISC |
| HD405, HD785 |
| 4569-33-61241 DISC |
| HD785 |
| 287-15-12710 DISC |
| HD460, WS23S |
| 569-15-32721 DISC |
| HD325, HD405, HD465, HD605, WS23S |
| 566-33-11262 DISC |
| HD320, HD325 |
| 141-10-11110 DISC |
| HD200, HD320, HD680, WS16 |
| 6560-01-1750 DISC,PROGRAM |
| SAA6D170E |
| 6560-01-1641 DISC,PROGRAM |
| SA6D170E |
| 6560-01-1631 DISC,PROGRAM |
| SA6D170E |
| 6560-01-1542 DISC,PROGRAM |
| SA6D170E |
| 6560-01-1780 DISC,PROGRAM |
| SA6D170E |
| 6560-01-1532 DISC,PROGRAM |
| SA6D170E |
- alog parts list

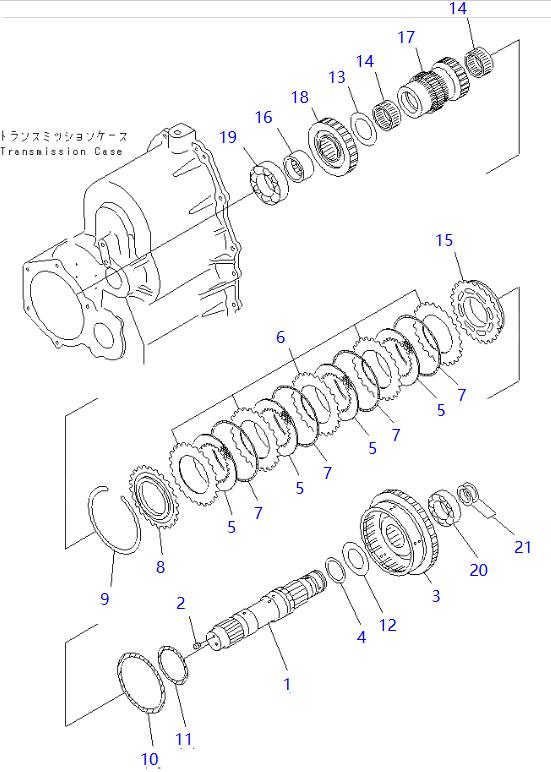

| Pos. | Part No | Qty | Parts name | Comments |
| 416-15-21012 | [1] | TRANSMISSION ASS'Y Komatsu China | ||
| ["SN: (52935)-UP"] analogs:["4161521013"] |1. | ||||
| 416-15-21011 | [1] | TRANSMISSION ASS'Y Komatsu | 426.83 kg. | |
| ["SN: (51195)-(52934)"] |1. | ||||
| 416-15-21010 | [1] | TRANSMISSION ASS'Y Komatsu | 426.83 kg. | |
| ["SN: 53001-(51194)"] analogs:["4161521011"] |1. | ||||
| 416-15-12502 | [1] | CLUTCH ASS'Y,1ST Komatsu China | ||
| ["SN: 53001-UP"] analogs:["4161512600", "4161512501"] |1. | ||||
| 416-15-12512 | [1] | SHAFT ASS'Y Komatsu China | ||
| ["SN: 53001-UP"] analogs:["4161512510", "4161512511"] |1. | ||||
| 2 | 419-15-12750 | [1] | ORIFICE Komatsu | 0.01 kg. |
| ["SN: 53001-UP"] | ||||
| 5 | 7720-50-2590 | [4] | DISC Komatsu | 0.12 kg. |
| ["SN: 53001-UP"] analogs:["4191512290", "4191512910"] | ||||
| 6 | 714-16-19730 | [5] | PLATE,SEPARATE Komatsu | 0.185 kg. |
| ["SN: 53001-UP"] analogs:["4191512310"] | ||||
| 7 | 419-15-12133 | [4] | SPRING,WAVE Komatsu | 0.01 kg. |
| ["SN: 53001-UP"] analogs:["56D1512710"] | ||||
| 8 | 419-15-12281 | [1] | PLATE,END Komatsu | 0.81 kg. |
| ["SN: 53001-UP"] analogs:["4191512280"] | ||||
| 9 | 419-15-12140 | [1] | RING,SNAP Komatsu | 0.096 kg. |
| ["SN: 53001-UP"] | ||||
| 10 | 419-15-12580 | [1] | RING,SEAL (K1) Komatsu | 0.012 kg. |
| ["SN: 53001-UP"] | ||||
| 11 | 419-15-12210 | [1] | RING,SEAL (K1) Komatsu | 0.008 kg. |
| ["SN: 53001-UP"] | ||||
| 12 | 714-08-19570 | [1] | WASHER,THRUST Komatsu | 0.11 kg. |
| ["SN: 53001-UP"] analogs:["4191512622"] | ||||
| 13 | 714-08-19560 | [1] | WASHER,THRUST Komatsu | 0.08 kg. |
| ["SN: 53001-UP"] | ||||
| 14 | 714-23-19410 | [2] | BEARING,NEEDLE Komatsu | 0.2 kg. |
| ["SN: (53135)-UP"] analogs:["4191512660"] | ||||
| 419-15-12660 | [2] | BEARING,NEEDLE Komatsu | 0.2 kg. | |
| ["SN: 53001-(53134)"] analogs:["7142319410"] |14. | ||||
| 15 | 419-15-13191 | [1] | PISTON Komatsu | 0.7 kg. |
| ["SN: 53001-UP"] analogs:["4191513190"] | ||||
| 16 | 417-15-12670 | [1] | COLLAR Komatsu | 0.4 kg. |
| ["SN: 53001-UP"] | ||||
| 17 | 417-15-12652 | [1] | GEAR¤ 21 TEETH,1ST Komatsu China | |
| ["SN: 53001-UP"] analogs:["4171512651"] | ||||
| 18 | 417-15-12663 | [1] | GEAR¤ 32 TEETH Komatsu China | |
| ["SN: 53001-UP"] analogs:["4171512662"] | ||||
| 19 | 417-15-12850 | [1] | BEARING,BALL Komatsu | 0.67 kg. |
| ["SN: 53001-UP"] | ||||
| 20 | 06030-06210 | [1] | BEARING Komatsu | 0.48 kg. |
| ["SN: 53001-UP"] | ||||
| 21. | 419-15-12121 | [2] | RING,SEAL (K1) Komatsu | 0.01 kg. |
| ["SN: 53001-UP"] analogs:["4191512120"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
