336-8174 336-8175 336-8176 336-8177 Fuel Injection Tube Excavator Spare Parts For 320DL C6.6
- 336-8174 336-8175 336-8176 336-8177 Fuel Injection Tube Excavator Spare Parts For 320DL C6.6
- Specifiion
| Name | Fuel Injection Tube |
| Parts No | 336-8174 336-8175 336-8176 336-8177 336-8178 336-8179 |
| Machine Model | M316D M318D M318D MH M322D 924H 924HZ 928H 928HZ 938H |
| egory | Fuel Injection Pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATOR 320D GC 320D L 323D L
GENERATOR SET C6.6
INDUSTRIAL ENGINE
INTEGRATED TOOLCARRIER IT38H
KNUCKLEBOOM LOADER 559
LOAD HAUL DUMP R1300G II
MOTOR GRADER 120M 12M
PIPELAYER PL61
TRACK LOADER 953D 963D
TRACK-TYPE TRACTOR D5R LGP D6K D6K LGP D6K XL D6N
VIBRATORY COMPACTOR CP-56 CP-64 CP-76 CS-56 CS-56B CS-64 CS-68B CS-74 CS-74B CS-78B
WHEEL FELLER BUNCHER 2470C 553C
WHEEL LOADER 924H 924HZ 928H 928HZ 938H
WHEEL TRACTOR-SCRAPER 613G
WHEELED EXCAVATOR M316D M318D M318D MH M322D M322D MH C.at.erp.illar.
- More other tube parts fit for C A T machine
| 1257874 TUBE-HEAT SHRINK |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,... |
| 5P6004 TUBE-FUMES DISPOSAL |
| 206, 225, 313B, 314C, 321C, 325D MH, 330D, 330D MH, 345C MH, 428, 950, AP-800, M318D MH, M322D MH |
| 4S8603 TUBE AS-SCREEN |
| 14G, 16G, 24H, 3192, 515, 525, 525B, 611, 613C, 613C II, 613G, 615, 615C, 65, 69D, 7211, 7231, 7241, 7251, 7261, 7271, 769C, 769D, 771C, 771D, 773B, 773D, 773E, 773F, 775B, 775D, 775E, 775F, 776, 777,... |
| 3368175 TUBE-FUEL INJECTION |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| 3368176 TUBE-FUEL INJECTION |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| 3368177 TUBE-FUEL INJECTION |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| 3368178 TUBE-FUEL INJECTION |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| 3368179 TUBE-FUEL INJECTION |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| 3368180 TUBE-FUEL INJECTION |
| 120M, 12M, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-64, CS-74, D6K, D6K LGP, D6N, IT38H, M316D, M318D, M318D MH, M322D |

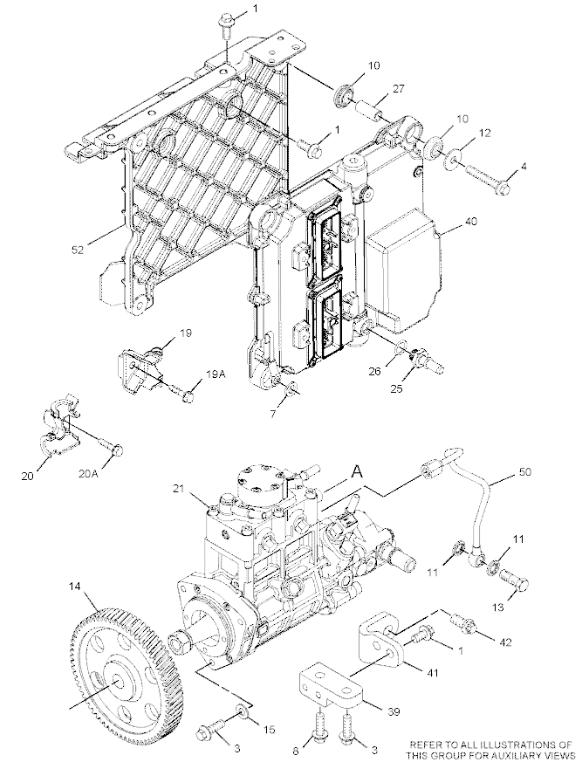

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6I-0217 M | [6] | BOLT (M8X1.25X20-MM) | |
| 2 | 6I-0254 CM | [3] | BOLT (M8X1.25X30-MM) | |
| 3 | 6I-0260 M | [4] | BOLT (M8X1.25X25-MM) | |
| 4 | 6I-0456 M | [4] | BOLT (M8X1.25X45-MM) | |
| 6 | 6I-4793 CM | [3] | BOLT (M8X1.25X50-MM) | |
| 7 | 7W-2632 | [1] | WASHER (8.5X16.8X1.6-MM THK) | |
| 8 | 101-3895 M | [1] | BOLT (M8X1.25X35-MM) | |
| 9 | 124-3815 M | [1] | BOLT (M8X1.25X16-MM) | |
| 10 | 155-0576 | [8] | MOUNT-ISOLATION | |
| 11 | 346-0007 | [2] | WASHER | |
| 12 | 217-0099 | [4] | SPACER (8.2X25X2-MM THK) | |
| 13 | 346-0006 | [1] | BOLT-SPECIAL | |
| 14 | 230-8989 | [1] | GEAR-FUEL PUMP (68-TEETH) | |
| 15 | 232-3149 | [3] | WASHER (8.35X16.85X1.55-MM THK) | |
| 18 | 438-3416 C | [1] | RAIL AS-FUEL | |
| 18A. | 416-7101 | [1] | VALVE AS-RELIEF | |
| 18B. | 228-7102 | [1] | SEAL-O-RING | |
| 19 | 268-6677 | [1] | BRACKET AS | |
| 19A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 20 | 268-6678 | [1] | BRACKET AS | |
| 20A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 21 | 317-8021 CY | [1] | PUMP GP-FUEL INJECTION | |
| 22 | 278-5168 | [6] | CLAMP-INJECTOR | |
| 23 | 278-5170 | [6] | BOLT | |
| 24 | 395-1633 | [2] | BRACKET AS | |
| (EACH INCLUDES) | ||||
| 24A. | 6I-0631 M | [1] | BOLT (M6X1X12-MM) | |
| 25 | 278-5201 | [2] | CONNECTION | |
| 26 | 228-7100 C | [2] | SEAL-O-RING | |
| 27 | 278-5203 | [4] | SPACER | |
| 30 | 278-5225 | [1] | KIT-SENSOR (ENGINE OIL PRESSURE) | |
| 30A. | 199-9267 | [1] | SEAL-O-RING | |
| 31 | 311-3858 | [1] | KIT-SENSOR (ENGINE SPEED) | |
| 31A. | 228-4947 | [1] | SEAL-O-RING | |
| 31B. | 238-0120 | [1] | SENSOR GP-SPEED | |
| 32 | 278-5272 | [1] | KIT-SENSOR (INTAKE AIR TEMPERATURE) | |
| 32A. | 278-5226 | [1] | SEAL-O-RING | |
| 33 | 278-5273 | [1] | KIT-SENSOR (AIR PRESSURE) | |
| 33A. | 199-9252 | [1] | SEAL-O-RING | |
| 34 | 278-5307 | [1] | KIT-SENSOR (COOLANT TEMPERATURE) | |
| 34A. | 199-9267 | [1] | SEAL-O-RING | |
| 35 | 311-6342 | [1] | SENSOR AS-PRESSURE (FUEL RAIL) | |
| 35A. | 309-8006 | [1] | WASHER | |
| 36 | 330-3685 C | [3] | CLAMP | |
| 37 | 330-3687 C | [3] | CLAMP | |
| 38 | 330-5467 C | [3] | ISOLATOR | |
| 39 | 310-7918 | [1] | BRACKET-SUPPORT | |
| 40 | 331-7539 | [1] | CONTROL GP-UNPROGRAMMED (ENGINE) | |
| 41 | 287-6838 | [1] | BRACKET | |
| 42 | 287-6839 | [2] | BOLT | |
| 43 | 355-1582 C | [1] | TUBE AS | |
| 44 | 336-8174 | [1] | LINE-FUEL INJECTION (CYL NO. 1) | |
| 45 | 336-8175 | [1] | LINE-FUEL INJECTION (CYL NO. 2) | |
| 46 | 336-8176 | [1] | LINE-FUEL INJECTION (CYL NO. 3) | |
| 47 | 336-8177 | [1] | LINE-FUEL INJECTION (CYL NO. 4) | |
| 48 | 336-8178 | [1] | LINE-FUEL INJECTION (CYL NO. 5) | |
| 49 | 336-8179 | [1] | LINE-FUEL INJECTION (CYL NO. 6) | |
| 50 | 321-1270 | [1] | TUBE-OIL | |
| 51 | 321-3600 Y | [6] | INJECTOR GP-FUEL | |
| 52 | 293-9901 | [1] | BRACKET | |
| 54 | 1N-3361 C | [1] | SPACER | |
| 55 | 8C-8580 CM | [3] | BOLT-SOCKET HEAD (M5X0.8X16-MM) | |
| 278-4138 F | [5] | KIT-FUEL LINE PROTECTION (LINE, LOW PRESSURE) | ||
| C | CHANGE FROM PREVIOUS TYPE | |||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
