11Q7-40290 Hose HYUNDAI Excavator Spare Parts For R250LC-9 R260LC-9S R290LC-9
- 11Q7-40290 Hose HYUNDAI Excavator Spare Parts Fitting For R250LC-9 R260LC-9S R290LC-9
- Specifiion
| Name | Hose |
| Parts No | 11Q7-40290 |
| Machine Model | R250LC9 R290LC9 R290LC9MH RB260LC9S |
| egory | Cooling System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
9-SERIES CRAWLER EXCAVATOR R250LC9 R290LC9 R290LC9MH RB260LC9S Hyundai
- More other hose parts fit for HYUNDAI machine
| P930-042017 HOSE ASSY-ORFS 0X90 |
| 100D-7, HL740-9S, HL740-9SB, HL757TM7, HW140, HW210, HX220NL, HX235L, HX260L, R125LCR-9A, R140LC-7, R145CR9, R145CR9A, R160W9A, R200W7, R200W7A, R210LC9, R210NLC7, R210NLC7A, R210NLC9, R210W-9, R210W9... |
| P930-042009 HOSE ASSY-ORFS 0X90 |
| 180DE, 250DE, HL757-F, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9... |
| P930-042033 HOSE ASSY-ORFS 0X90 |
| 250DE, 50D-7A, 50DE, 50DEACE, 80DE, 80DEACE, HW140, HW210, HX140L, HX160L, HX220NL, HX480L, HX520L, R140LC9, R140LC9A, R140LC9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180... |
| X400-062025 HOSE ASSY-SYNFLEX,ORFS |
| HL740-7A, HL740TM-7A, HL770-9, HL770-9A, HX330L, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R220LC9A, R220NLC9A, R250LC9, R250LC9A, R260LC9S, R330LC9A, R360LC7A, RB220LC9S, RD220LC9 |
| X420-042009 HOSE ASSY-SYNFLEX,ORFS |
| HX180L, HX220L, HX260L, HX480L, HX520L, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R16-9, R16-9CA, R16-9NH, R160LC7, R160LC7A, R160LC9, R160... |
| P910-042008 HOSE ASSY-ORFS 0X0 |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R... |
| X420-042012 HOSE ASSY-ORFS 0X90 |
| HX180L, HX260L, HX300L, HX330L, HX480L, HX520L, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S... |
| X420-042011 HOSE ASSY-ORFS 0X90 |
| HX330L, R140LC9, R140LC9A, R140LC9S, R16-9, R16-9CA, R16-9NH, R160LC7A, R160W9A, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC7A, R200W7, R200W7A, R210LC9BC, R210LC9BH, R210W9S, R220NLC9A, R250LC9, R25Z-9A, R... |
| X400-042014 HOSE ASSY-SYNFLEX,ORFS |
| HL740-7A, HL740-7S, HL740TM-7A, R140LC9, R140W7, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R200W7, R210LC7 |

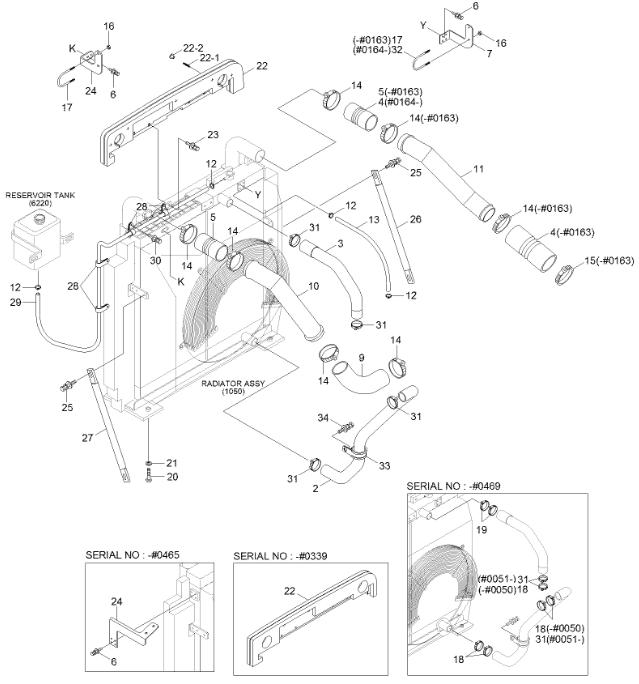

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 2 | 11Q7-40290 | [1] | HOSE-LOWER | |
| 3 | 11Q6-44010 | [1] | HOSE-UPPER | |
| 3 | 11Q6-44011 | [1] | HOSE-UPPER | |
| 4 | 11Q6-40530 | [1] | HOSE-CAC | |
| 5 | 11Q6-40470 | [2] | HOSE-CAC | |
| 5 | 11Q6-40470 | [1] | HOSE-CAC | |
| 6 | S037-102526 | [8] | BOLT-W/WASHER | |
| 6 | S037-102526 | [6] | BOLT-W/WASHER | |
| 7 | 11Q6-40560 | [1] | BRACKET | |
| 7 | 11Q6-40830 | [1] | BRACKET | |
| 9 | 11Q6-40540 | [1] | HOSE-CAC | |
| 9 | 11Q6-40570 | [1] | HOSE-CAC | |
| 10 | 11Q7-40410 | [1] | PIPE | |
| 11 | 11Q7-40420 | [1] | PIPE | |
| 11 | 11Q7-40740 | [1] | PIPE-CAC | |
| 12 | S520-017000 | [4] | CLAMP-HOSE | |
| 13 | 12L1-3011 | [1] | HOSE-AIR VENT | |
| 14 | 11Q4-44310 | [7] | CLAMP | |
| 14 | 11U2-40190 | [5] | CLAMP-T-RETENTION | |
| 15 | 11Q4-44320 | [1] | CLAMP | |
| 16 | S275-12000B | [4] | NUT-SELF LOCKING | |
| 17 | 11Q6-40690 | [2] | U-BOLT | |
| 17 | 11Q6-40690 | [1] | U-BOLT | |
| 18 | S572-650006 | [6] | CLAMP-HOSE,WIRE TYPE | |
| 18 | S572-650006 | [2] | CLAMP-HOSE,WIRE TYPE | |
| 19 | S572-590006 | [2] | CLAMP-HOSE,WIRE TYPE | |
| 20 | S017-16045D | [4] | BOLT-HEX | |
| 20 | S017-16045D | [5] | BOLT-HEX | |
| 21 | S441-160006 | [4] | WASHER-HARDENED | |
| 21 | S441-160006 | [5] | WASHER-HARDENED | |
| 22 | 11Q7-40431 | [1] | SCREEN | |
| 22 | 11Q7-40432 | [1] | SCREEN | |
| 22 | 11Q7-40180 | [1] | SCREEN | |
| 22-1. | 71EM-51590 | [1] | BOLT-STUD | |
| 22-2. | 71EM-51580 | [1] | CAP-STUD BOLT | |
| 23 | S035-082026 | [6] | BOLT-W/WASHER | |
| 24 | 11Q6-40551 | [1] | BRACKET | |
| 24 | 11Q6-41780 | [1] | BRACKET | |
| 25 | S037-123026 | [4] | BOLT-W/WASHER | |
| 26 | 11Q7-40271 | [1] | STAY | |
| 27 | 11Q7-40320 | [1] | STAY | |
| 28 | 31L7-10190 | [4] | CLAMP-TUBE | |
| 28 | 31L7-10340 | [4] | CLAMP-TUBE INS | |
| 29 | E111-2504 | [1] | HOSE | |
| 30 | S035-081556 | [2] | BOLT-W/WASHER | |
| 31 | S572-620006 | [4] | CLAMP-HOSE,WIRE TYPE | |
| 31 | 11Q4-44370 | [4] | CLAMP | |
| 32 | 11N6-43280-DA | [1] | U-BOLT | |
| 33 | 31L7-10270 | [1] | CLAMP-TUBE | |
| 34 | S037-102026 | [1] | BOLT-W/WASHER |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
