6207-11-4881 6207-11-4882 Air Intake Hose KOMATSU Excavator Spare Parts For PC220LC-5
- 6207-11-4881 6207-11-4882 Air Intake Hose KOMATSU Excavator Spare Parts For PC220LC-5
- Specifiion
| Name | Air Intake Hose |
| Parts No | 6207-11-4881 6207-11-4882 |
| Machine Model | PC200 PC220 |
| egory | Air Cleaner and Piping |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC200 PC220 Komatsu
- More other hose parts fit for KOMATSU machine
| 6114-81-7202 AIR CLEANER ASS'Y |
| 4D130, 6D125, 6D125E, SL4D130 |
| 198-911-5720 AIR CLEANER |
| D155C, D275A, D355A, D355C, D375A, D85A, D85C |
| 6151-81-3111 AIR COMPRESSOR A. |
| 6D125, HA250, HA270, S6D125, SA6D125 |
| YM129136-12510 AIR CLEANER ASS'Y |
| 3D82E, 3D84, 3D84E, 3D84N, 4D84, 4D84E, 4D88E, PC28UD, PC28UG, PC28UU |
| 6210-81-3110 AIR COMPRESSOR ASS'Y |
| S6D140, SA6D140 |
| 561-07-61102 AIR CONDITIONER |
| HD325, HD405, HD465, HD605, HD785, HD985 |
| 561-02-12301 AIR CLEANER ASS'Y |
| CS360, CS360SD, GC380, GC380F, GS360, HD465, HD785 |
| 203-979-6510 AIR CONDITIONER UNIT |
| PC100, PC100L, PC120, PC130 |
| 6136-81-7100 AIR CLEANER ASS'Y |
| 6D105 |
| 208-979-7610 AIR CONDITIONER |
| PC130, PC160, PC180, PC200, PC2000, PC210, PC360, PC400, TRAVEL, WA600, WD600 |
| 425-07-21111 AIR CONDITIONER U. |
| WA100, WA100M, WA120, WA1200, WA120L, WA150, WA150L, WA800, WA900 |
| 20T-978-8111 AIR CONDITIONER UNIT |
| PC20R, PC25R, PC27R, PC30R, PC35R, PC40R, PC45R |

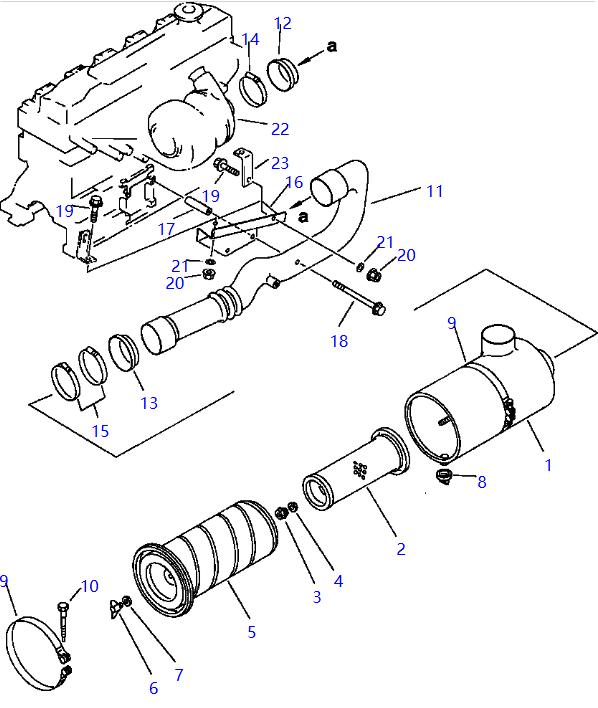

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 6207-81-7700 | [1] | AIR CLEANER ASSEMBLY Komatsu | 14.78 kg. | |
| analogs:["6207817200"] |$0. | ||||
| 1. | 6207-81-7210 | [1] | BODY, AIR CLEANER Komatsu China | |
| 600-181-6050 | [1] | ELEMENT ASSEMBLY Komatsu | 3.06 kg. | |
| analogs:["6001816560"] |$2. | ||||
| 2 | NSS | [1] | ELEMENT, INNER Komatsu China | |
| 3 | 600-181-9671 | [1] | NUT, WING Komatsu | 0.05 kg. |
| 4 | 600-181-7511 | [1] | WASHER, SEAL Komatsu | 0.009 kg. |
| 600-181-6540 | [1] | ELEMENT ASSEMBLY, OUTER Komatsu | 2.5 kg. | |
| analogs:["6001816550"] |$6. | ||||
| 6 | 600-181-6570 | [1] | NUT, WING Komatsu | 0.029 kg. |
| 7 | 600-181-6580 | [1] | WASHER, SEAL Komatsu | 0.001 kg. |
| 8. | 600-181-6590 | [1] | VALVE, EVACUATOR Komatsu | 0.01 kg. |
| 9 | 6207-81-7190 | [2] | BAND Komatsu China | |
| 6110-21-6530 | [2] | PIN Komatsu China | ||
| |$12. | ||||
| 6110-21-6540 | [2] | PIN, WITH THREAD Komatsu China | ||
| |$13. | ||||
| 10 | 6110-23-6520 | [2] | BOLT Komatsu China | |
| analogs:["6110216520"] | ||||
| 6207-11-4882 | [1] | AIR DUCT ASSEMBLY Komatsu China | ||
| analogs:["6207114881"] |$15. | ||||
| 11. | 6207-11-4971 | [1] | AIR DUCT Komatsu | 1.702 kg. |
| 12. | 6207-11-4991 | [1] | INSULATOR Komatsu | 0.07 kg. |
| 13. | 6207-11-4981 | [1] | INSULATOR Komatsu China | |
| 14 | 20D-09-11130 | [1] | CLAMP Komatsu | 0.063 kg. |
| analogs:["0728900095", "690068C1"] | ||||
| 15 | 207-09-11120 | [2] | CLAMP Komatsu | 0.074 kg. |
| analogs:["0728900120"] | ||||
| 16 | 6207-11-4910 | [1] | PLATE Komatsu China | |
| 17 | 6136-11-5120 | [2] | SPACER Komatsu | 0.714 kg. |
| 18 | 01436-01005 | [2] | BOLT Komatsu | 0.064 kg. |
| 19 | 01435-20820 | [2] | BOLT Komatsu | 0.015 kg. |
| analogs:["0143500820"] | ||||
| 20 | 01594-00807 | [2] | NUT Komatsu | 0.007 kg. |
| 21 | 6201-81-6560 | [2] | WASHER Komatsu | 0.01 kg. |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
