XKAQ-00010 Sun Gear Excavator Swing Gear For HYUNDAI R170W7 R170W7A R200W7 R200W7A
- XKAQ-00010 Sun Gear Excavator Swing Gear For HYUNDAI R170W7 R170W7A R200W7 R200W7A
- Specifiion
| Spare parts name | Sun gear |
| Equipment Model | R170W7 R170W7A R200W7 R200W7A |
| Parts egory | HYUNDAI Excavator Swing Gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A RB160LC9S RB220LC9S RD220LC9
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| 4896380 GEAR-CAMSHAFT |
| HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A |
| M230X-00671 GEAR ASSY |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 4893389 GEAR-FUEL PUMP |
| R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| 39Q5-12270 GEAR-PLANETARY 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| 39Q5-12320 GEAR-SUN 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| ZGAQ-04882 GEAR-RING |
| R160W9A, R170W9, R180W9A, R180W9S |
| ZGAQ-01991 GEAR SHIFT SENSOR 1 |
| R200W7 |
| ZGAQ-01992 GEAR SHIFT SENSOR 3 |
| R200W7, R210W9S |
| XKAQ-00405 GEAR-SUN 2 |
| R210LC9 |
| ZGAQ-02404 GEAR SHIFT SENSOR 1 |
| R210W9S |

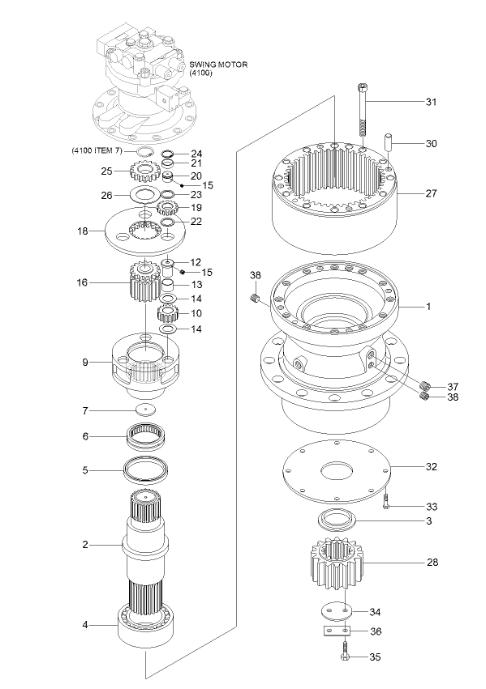

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31Q6-10141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10141AR | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00962 | [1] | CASING | |
| 2 | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 4 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00032 | [1] | SEAL-OIL | |
| 6 | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00404 | [1] | PLATE-THRUST | |
| 8 | XKAQ-00753 | [1] | CARRIER ASSY 2 | NOT SHOWN |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 11 | XKAQ-00643 | [3] | PIN ASSY 2 | NOT SHOWN |
| 12 | XKAQ-00070 | [3] | PIN 2 | INLC 13 |
| N13. | XKAQ-00291 | [1] | BUSHING 2 | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00048 | [3] | PIN-SPRING | |
| 16 | XKAQ-00755 | [1] | GEAR-SUN 2 | |
| 17 | XKAQ-00754 | [1] | CARRIER ASSY 1 | NOT SHOWN |
| 15 | XKAQ-00048 | [3] | PIN-SPRING | |
| 18 | XKAQ-00531 | [1] | CARRIER 1 | |
| 19 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 20 | XKAQ-00415 | [3] | PIN 1 | |
| 21 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| 22 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 23 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 24 | XKAQ-00041 | [3] | RING-STOP | |
| 25 | XKAQ-00010 | [1] | GEAR-SUN 1 | |
| 26 | XKAQ-00534 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00779 | [1] | GEAR-RING | |
| 28 | XKAQ-00977 | [1] | GEAR-PINION | |
| 30 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 31 | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 32 | XKAQ-00031 | [1] | PLATE-COVER | |
| 33 | XKAQ-00064 | [8] | BOLT-HEX | |
| 34 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 35 | XKAQ-00042 | [2] | BOLT-HEX | |
| 36 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 37 | XKAQ-00049 | [1] | PLUG | |
| 38 | XKAQ-00066 | [2] | PLUG | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
