7835-31-3010 7835313010 Monitor KOMATSU Excavator Spare Parts For PC130-8 PC160LC-8
- 7835-31-3010 7835313010 Monitor KOMATSU Excavator Spare Parts For PC130-8 PC160LC-8
- Specifiion
| Name | Monitor |
| Parts No | 7835-31-3010 7835313010 |
| Machine Model | PC130 PC138 PC138US PC160 PC190 PC78US PC88MR |
| egory | Cab Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC130 PC138 PC138US PC160 PC190 PC78US PC88MR Komatsu
- Display function
It adopts a high - definition liquid - crystal screen, and may have a resolution of 1024x768. It can clearly display key data such as engine status, oil
temperature, and hydraulic system pressure, enabling the operator to keep abreast of the machine's working conditions. Even in strong sunlight or
other harsh environments, it can ensure clear visibility.
- More other monitor parts fit for KOMATSU machine
| 7861-51-2100 MONITOR ASS'Y (KM/H) |
| WA300 |
| 7831-69-1001 MONITOR |
| D155AX |
| 7835-11-1005 MONITOR |
| PC78MR, PC78US, PC88MR, PW98MR |
| 7835-16-3001 MONITOR |
| PC800, PC800SE, PC850, PC850SE |
| 7835-16-1003 MONITOR |
| PC300, PC350, PC400, PC450 |
| 7834-70-3002 MONITOR ASS'Y |
| PC200, PC210 |
| 7831-46-1002 MONITOR |
| HM300, HM350, HM400 |
| 7834-72-4002 MONITOR ASS'Y |
| PC200, PC210, PC220, PC230 |
| 7834-71-6000 MONITOR ASS'Y |
| PC100, PC120, PC130, PC200, PC210, PC220, PC230 |
| 7834-71-6102 MONITOR |
| PC130, PC200, PC210, PC220, PC230, PC250 |
| 7834-71-6101 MONITOR |
| PC100, PC120, PC200, PC210, PC220, PC230 |
| 7834-71-6001 MONITOR ASS'Y |
| PC100, PC120, PC130, PC200, PC210, PC220, PC230 |

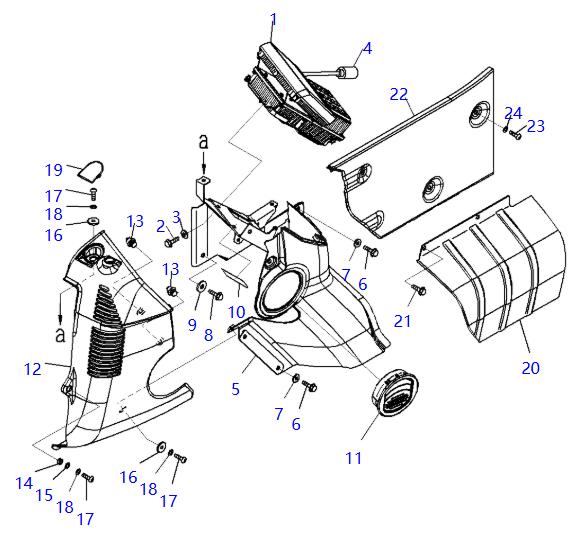

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7835-31-3016 | [1] | Monitor Komatsu | 3.35 kg. |
| ["SN: 25585-UP"] analogs:["7835313002"] | ||||
| 1 | 7835-31-3015 | [1] | Monitor Komatsu China | |
| ["SN: 25427-25584", "SCC: A2"] | ||||
| 1 | 7835-31-3014 | [1] | Monitor Komatsu China | |
| ["SN: 25399-25426", "SCC: A2"] | ||||
| 1 | 7835-31-3013 | [1] | Monitor Komatsu China | |
| ["SN: 25163-25398", "SCC: A2"] | ||||
| 1 | 7835-31-3012 | [1] | Monitor Komatsu China | |
| ["SN: 25056-25162", "SCC: A2"] | ||||
| 1 | 7835-31-3011 | [1] | Monitor Komatsu China | |
| ["SN: 25046-25055", "SCC: A2"] | ||||
| 1 | 7835-31-3010 | [1] | Monitor Komatsu China | |
| ["SN: 25036-25045", "SCC: A2"] | ||||
| 1 | 7835-31-3009 | [1] | Monitor Komatsu China | |
| ["SN: 25002-25035", "SCC: A2"] | ||||
| 1 | 7835-31-3007 | [1] | Monitor Komatsu China | |
| ["SN: 25001-25001", "SCC: A2"] | ||||
| 2 | 01435-00616 | [4] | Bolt Komatsu | 0.001 kg. |
| ["SN: 25001-UP"] analogs:["0143540616", "F131070616"] | ||||
| 3 | 209-72-12230 | [4] | Washer Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 4 | 20Y-53-12810 | [1] | Cover Komatsu | 0.008 kg. |
| ["SN: 25001-UP"] | ||||
| 5 | 20Y-53-12154 | [1] | Cover Komatsu | 3.05 kg. |
| ["SN: 25001-UP"] | ||||
| 8 | 01435-00820 | [1] | Bolt Komatsu | 0.015 kg. |
| ["SN: 25001-UP"] analogs:["0143520820"] | ||||
| 9 | 208-53-11330 | [1] | Washer Komatsu | 0.011 kg. |
| ["SN: 25001-UP"] | ||||
| 10 | 20Y-00-41330 | [1] | Plate Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 11 | 20Y-53-12172 | [1] | Grille Komatsu | 12 kg. |
| ["SN: 25001-UP"] | ||||
| 12 | 20Y-53-12122 | [1] | Cover Komatsu | 0.5 kg. |
| ["SN: 25001-UP"] | ||||
| 13. | 22U-54-25360 | [2] | Clip Komatsu | 0.01 kg. |
| ["SN: 25101-UP"] | ||||
| 13. | 22U-54-25340 | [2] | Clip Komatsu | 0.01 kg. |
| ["SN: 25001-25100"] | ||||
| 14 | 205-54-75240 | [1] | Collar Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 15 | 01643-70823 | [1] | Washer Komatsu | 0.01 kg. |
| ["SN: 25001-UP"] analogs:["0164350823"] | ||||
| 16 | 20Y-53-12310 | [2] | Collar Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 17 | 01245-00616 | [3] | Screw Komatsu | 0.004 kg. |
| ["SN: 25001-UP"] | ||||
| 18 | 01643-70623 | [3] | Washer Komatsu | 0.002 kg. |
| ["SN: 25001-UP"] analogs:["0164330623"] | ||||
| 19 | 20Y-53-12291 | [1] | Cap Komatsu | 0.001 kg. |
| ["SN: 25001-UP"] | ||||
| 20 | 20Y-53-12161 | [1] | Cover Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 22 | 20Y-53-12483 | [1] | Cover Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 23 | 01245-00612 | [3] | Screw Komatsu | 0.01 kg. |
| ["SN: 25001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
